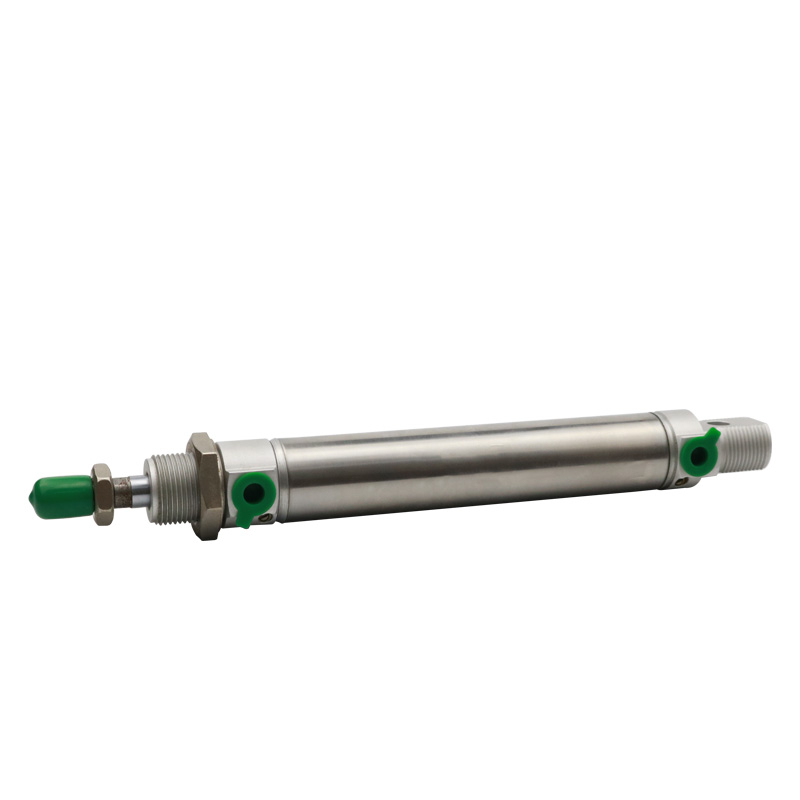

DSN Mini Pneumatic Cylinder Equal To FESTO DSN
Home » Products » PNEUMATIC CYLINDER » Mini Pneumatic Cylinder » DSN Mini Pneumatic Cylinder Equal To FESTO DSN

PRODUCT DETAIL

DSN Mini Pneumatic Cylinder Equal To FESTO DSN DSN Mini Pneumatic Cylinder Equal To FESTO DSN
DSN Mini Pneumatic Cylinder Equal To FESTO DSN DSN Mini Pneumatic Cylinder Equal To FESTO DSN

loading

DSN Mini Pneumatic Cylinder Equal To FESTO DSN

Share to:
sharethis sharing button
●DSN ISO 6432 Stainless steel Pipe Mini Pneumatic Cylinder.
●Equal to FESTO DSN sereis cylinder.
●Front and back cover owns fixed bumper pad .
●Piston rod and cylinder body with the material of stainless steel.
Availability:

DSN ISO 6432 Stainless steel Pipe Mini Pneumatic Cylinder Bore Size 12 mm To 40mm Equal To FESTO DSN Series

Product Feature

●In accordance with ISO6432 standard (8mm – 25mm bore size) ,Equal to SMC CD85 cylinder.

●Front and back cover owns fixed bumper pad which can reduce the impact of direction-change of the cylinder.

●There are several modes of back cover, which makes the installation of cylinder more convenient.

●Front and back cover and stainless steel block adopt riveted rolling packed structure to form a reliable connection.

●Piston rod and cylinder body with the material of stainless steel make the cylinder adapt general working environment

  with corrosivity.

●There are cylinders and accessories with several specifications for installation for your choice


DSN Mini Pneumatic Cylinder Ordering Code

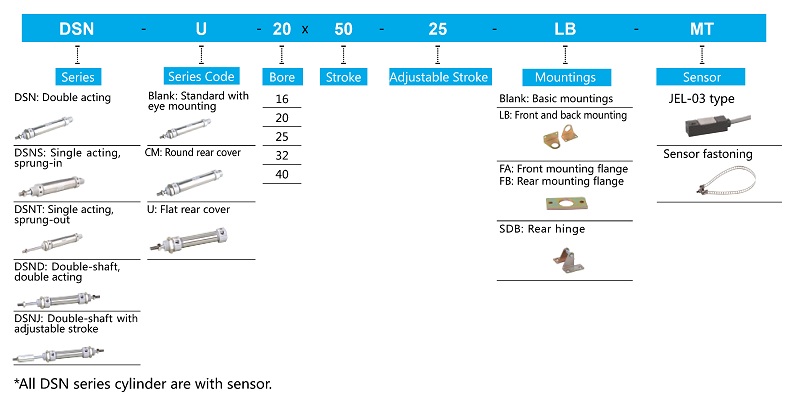

DNS Stainless Steel Round Pipe Mini Pneumatic Cylinder Ordering Code

DSN Mini Pneumatic Cylinder Specification

Mini Pneumatic Cylinder Bore Size(mm)
12
16 20 25 32 40
Acting type
Double Acting ;Single Acting-Pull ; Single Acting-Push
Fluid
Air (To be filtered by 40μm filter element)

Operating

Pressure

Double Acting 0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar)
Single Acting 0.2∽1.0Mpa(28∽145Psi)(2.0∽10Bar)
Proof Pressure 1.35Mpa(200Psi)(13.5Bar)
Temperature℃ 0∽70
Speed Range mm/s Double acting cylinder: 30∽800mm/s ; Single Acting Cylinder 50∽800mm/s
Stroke Tolerance 0∽250:+1.0; ≥250+1.5;
Cushion Type Gasket Cushion
Adjustable Cushion
Port Size① M5*0.8
1/8"

① PT thread , G thread ,NPT thread are available for 1/8"pipe size.


DSN Mini Pneumatic Cylinder Stroke

Bore Size(mm) Standard Stroke
Max. Standard Stroke Max.Stroke
12 25 50 75 80 100 125 150 160 175 200 300 500
16

25 50 75 80 100 125 150 160 175 200

300 500
20 25 50 75 80 100 125 150 160 175 200 250 300 500 650
25 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 500 650
32 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 500 650
40 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 500 650


1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us.

How about the lead time of the DSN Mini Pneumatic Cylinder , delivery time?

Normally we keep some stock  , so the lead time will less than 15 work days .

Is the Pneumatic sample for free ?

Yes, but need afford the freight

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
