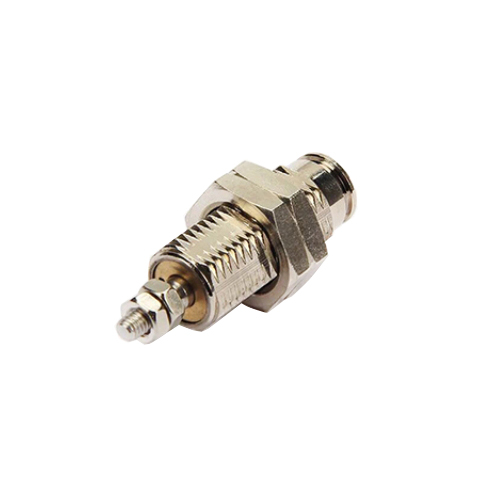

Threaded MPE Small Air Cylinder Bore Size 6 mm To 16 mm Equal To AIRTAC MPE Series Small Air Cylinder
Product Feature
These threaded small air cylinders are available in the following modes: single acting.
Available in bore sizes 6mm to 16mm and numerous stroke sizes.
● It is compact,small and light.
●Multi cylinders can be integrated to save room.
●Mounting accessories are not necessary.
●Cylinders of the various specifications are optional.

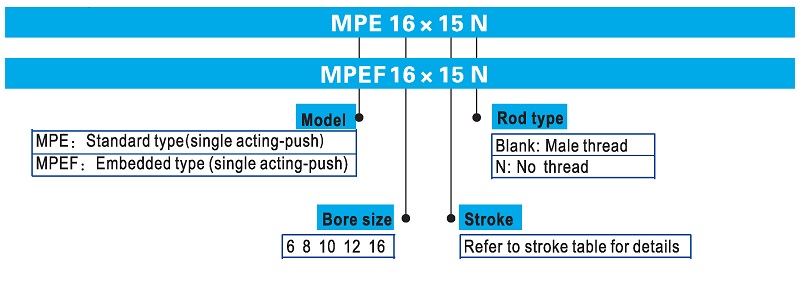

Threaded MPE Small Air Cylinder Ordering Code:
Threaded MPE Small Air Cylinder Specification
| Small Air Cylinder Bore (mm) | 6 | 8 | 10 | 12 | 16 | |
| Acting Type | Single acting-push type | |||||
| Fluid | Air (To be filtered by 40μm filter element) | |||||
| Operating Pressure | 0.2∽0.7Mpa(28∽100Psi) | 0.15∽0.7Mpa(22∽100Psi) | ||||
| Proof pressure | 1.05Mpa(150Psi) | |||||
| Temperature ℃ | -20∽80 | |||||
| Speed Range mm/s | Single Acting:50∽500 | |||||
| Stroke Tolerance | +1.0 | |||||
| Cushion Type | NO | |||||
| Port Size | M5x0.8 | |||||

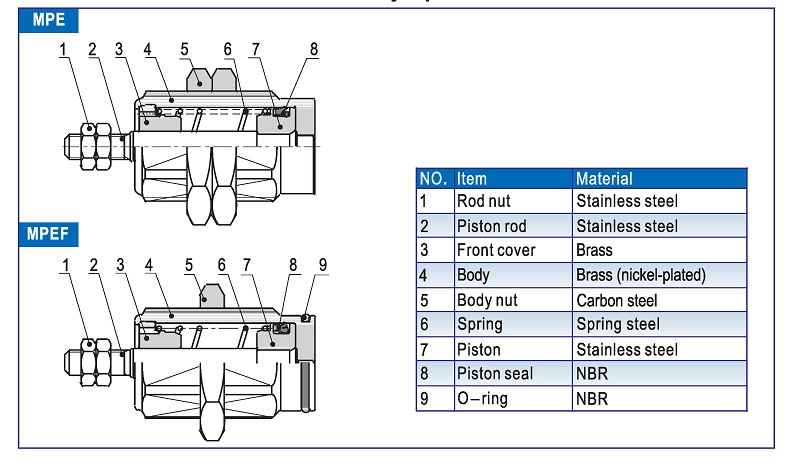

Threaded MPE Small Air Cylinder Inner Structure
Threaded MPE Small Air Cylinder Stroke
| MU Small Pneumatic Cylinder Bore(mm) | Standard Stroke(mm) | Max.std stroke |
6 | 5 10 15 | 15 |
| 8 | 5 10 15 | 15 |
| 10 | 5 10 15 | 15 |
| 12 | 5 10 15 | 15 |
| 16 | 5 10 15 | 15 |
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Threaded MPE Small Air Cylinder, delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
