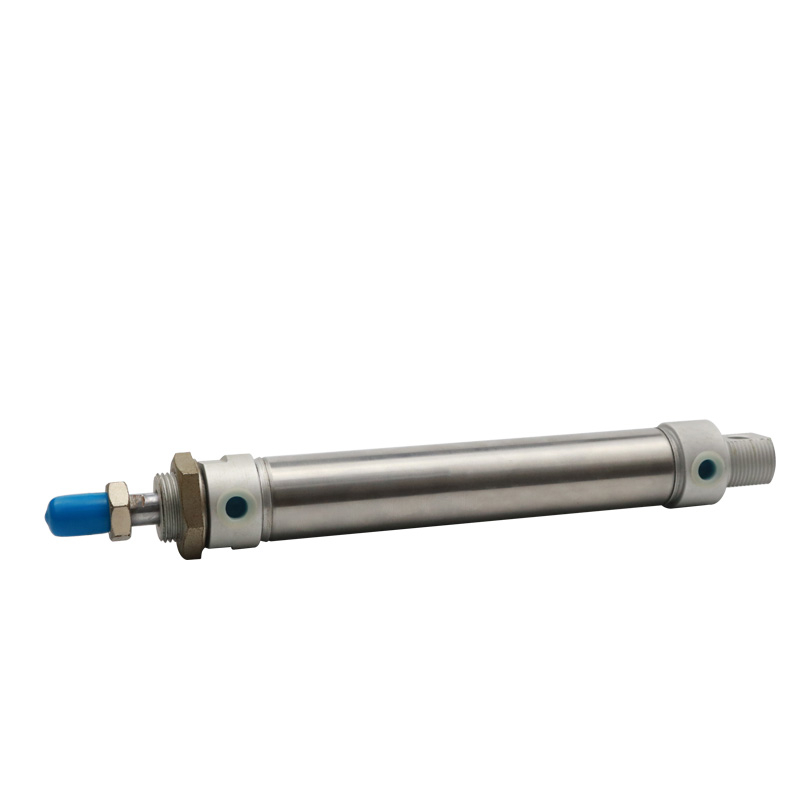

MI ISO 6432 Double Acting Cylinder Small Pneumatic Cylinder Bore Size 8mm To 40mm Equal To SMC CD85 cylinder
Product Feature
●In accordance with ISO6432 standard (8mm – 25mm bore size) ,Equal to SMC CD85 cylinder.
●Front and back cover owns fixed bumper pad which can reduce the impact of direction-change of the cylinder.
●There are several modes of back cover, which makes the installation of cylinder more convenient.
●Front and back cover and stainless steel block adopt riveted rolling packed structure to form a reliable connection.
●Piston rod and cylinder body with the material of stainless steel make the cylinder adapt general working environment
with corrosivity.
●There are cylinders and accessories with several specifications for installation for your choice
MI Small Pneumatic Cylinder Ordering Code
MI Small Pneumatic Cylinder Specification
| Bore Size(mm) | 8 | 10 | 12 | 16 | 20 | 25 | 32 | 40 | |
| Acting type | Double Acting ;Single Acting-Pull ; Single Acting-Push | ||||||||
| ---------------------------------- | Double Acting With Cushion | ||||||||
| Fluid | Air (To be filtered by 40μm filter element) | ||||||||
Operating Pressure | Double Acting | 0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar) | |||||||
| Single Acting | 0.2∽1.0Mpa(28∽145Psi)(2.0∽10Bar) | ||||||||
| Proof Pressure | 1.5Mpa(215Psi)(15Bar) | ||||||||
| Temperature℃ | -20∽70 | ||||||||
| Speed Range mm/s | Double acting cylinder: 30∽800mm/s ; Single Acting Cylinder 50∽800mm/s | ||||||||
| Stroke Tolerance | 0∽250:+1.0; ≥250+1.5; | ||||||||
| Cushion Type | MIC Series :Variable Cushion; Others : Bumper | ||||||||
| Port Size① | M5*0.8 | 1/8" | 1/4" | ||||||
① PT thread , G thread ,NPT thread are available for 1/8" and 1/4" pipe size.
MI Small Pneumatic Cylinder Stroke
| Bore Size(mm) | Standard Stroke | Max. Standard Stroke | Max.Stroke | ||
| MI | --- | 8 | 10 15 20 25 30 40 50 60 75 80 100 125 150 | 150 | 200 |
| 10 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 | 200 | 200 | ||
| 12 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 | 250 | 500 | ||
| MIC | 16 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 600 | |
| 20 | 500 | 800 | |||
| 25 | 500 | 800 | |||
| 32 | 500 | 800 | |||
| 40 | 500 | 800 | |||
MID MIJ | --- | 8 | 10 15 20 25 30 40 50 60 75 80 100 | 100 | -- |
| 10 | 10 15 20 25 30 40 50 60 75 80 100 | 100 | -- | ||
| 12 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 | 200 | -- | ||
MICD MICJ | 16 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 | 300 | -- | |
| 20 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 | 300 | -- | ||
| 25 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 | 300 | -- | ||
| 32 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | -- | ||
| 40 | 500 | -- | |||
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the MI Small Pneumatic Cylinder , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
