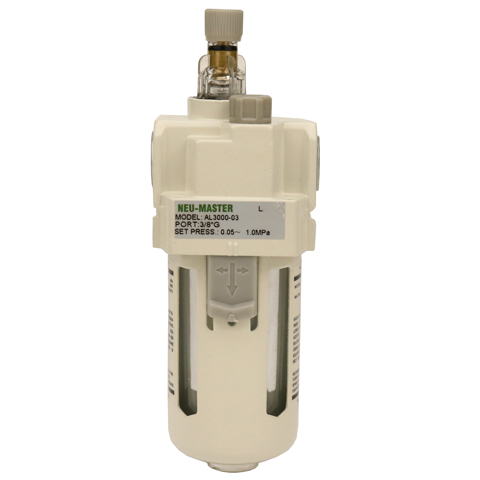

AL Series Air Lubricator
AL air Lubricator AL1000-AL5000,equivalent as SMC Air line oiler
The Air oiler with the adjustable oil flow controller. Save oil .
Port size : M5*0.8;1/8";1/4";3/8";1/2";1"
PT,G,NPT Thread are available .
Short delivery time ,reasonable cost,durable feature .
.
AL Air Lubricator Symbol:

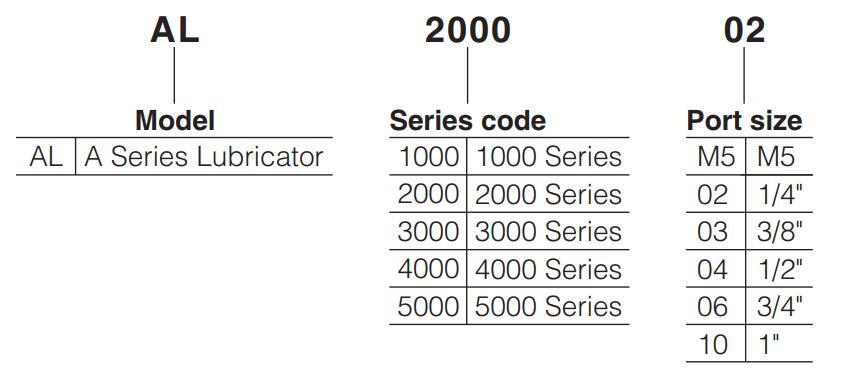

AL Air Lubricator Code:
AL Air Lubricator Specification
Model Compressed Air Lubricator | AL1000-M5 | AL2000-02 | AL3000-02 | AL3000-03 | AL4000-03 | AL4000-04 | AL4000-06 | AL5000-06 | AL5000-10 |
Port size | M5×8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 |
Cup capacity | 7 | 25 | 50 | 50 | 50 | 130 | 130 | 130 | 130 |
Rated flow(L\min) | 95 | 80 | 1700 | 1700 | 1700 | 5000 | 6300 | 7000 | 7000 |
Proof pressure | 1.5MPa{15.3kgf/cm2} | ||||||||
Max. pressure | 1.0MPa{10.2kgf/cm2} | ||||||||
Temperature range | 5~60℃ | ||||||||
Cup material | Polycarbonate | ||||||||
Cup protective cover | AL1000~2000(Without) AL3000~5000(With) | ||||||||
Valve type | With overflow | ||||||||
Weight(kg) | 0.07 | 0.22 | 0.30 | 0.30 | 0.56 | 0.56 | 0.58 | 1.08 | 1.08 |
Note: 1. supply pressure is 0.5MPa (5.1kgf/cm2), oil droplet flow rate of 5 drops/minute, turbine No.1 oil (ISO VG32) temperature of 20 degrees celsius.
2. supply pressure of 0.5MPa (5.1kgf/cm2), 0.03MPa (0.3kgf/cm2) in the absence of pressure.
Where the SMC standard AL Inline Air Lubricator were used ?
This product often applies to the airline , for injecting the lubricant oil in to the working system .
The purpose is to add the lubricant for the air tools , air cylinders and so on .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock of Air Compressor Filter Dryer , so the lead time will less than 7 work days .
Is the Air Lubricator sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Oil Fog Lubricator ,Air Lubricator, lubricator, Inline Lubricator, Air line oiler, Air oiler are all for add the lubricant oil into the airline system.
Or for the air tools .
What does FRL mean:(FRL meaning ) F = Compressed Air filter with water separator, cleans the compressed air of fluid oil, condensation and dirt
particles.
R= Compressed Air Regulator or Compressed Air Reducer; Adjust the output pressure .
L=Compressed Air Lubricator or Compressed Air Oiler: Injecting the lubricant oil in to the working system.
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ? It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
