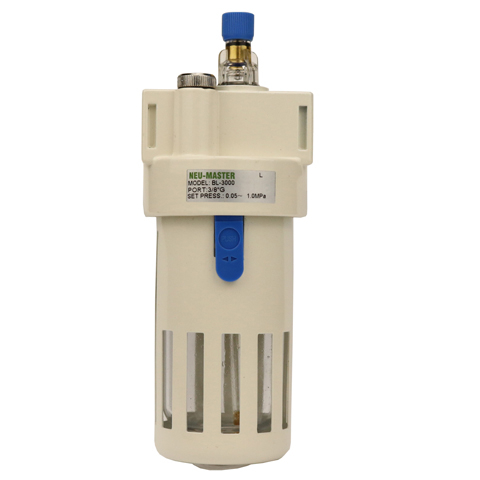

AL/BL Series Oil Lubricator
Oil Lubricator AL/BL equivalent as AIRTAC
Port size :1/8";1/4";3/8";1/2"
PT,G,NPT Thread are available for the Compressed Air Lubricator .
The Quantity Of Oil Dripping Can Be Directly Observed Through Transparent
Inspection Sheet
Short delivery time ,reasonable cost,durable feature .
AL,BL Sereis Oil Lubricator.pdf
AL/BL Series Oil Lubricator Symbol:

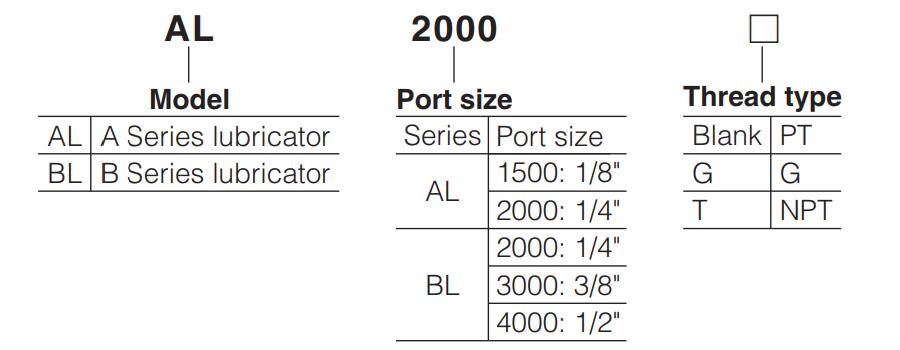

AL/BL Series Oil Lubricator Ordering Code:
AL/BL Series Oil Lubricator Specification:
Model Air Tool Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 |
Fluid | Air | ||||
Port size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 |
Pressure range | 0.05~1.0MPa(7~145psi) | ||||
Proof pressure | 1.5MPa(215psi) | ||||
Temperature range | -5~70℃ | ||||
Capacity of drain bowl | 25CC | 90CC | |||
Recommended | ISO VG 32 or equivalent | ||||
Weight | 170g | 250g | |||
Where the Airtac standard AL/BL Oil Lubricator were used ?
This product often applies to the airline , for injecting the lubricant oil in to the working system .
The purpose is to add the lubricant for the air tools , air cylinders and so on .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Air Line Oliler , delivery time ?
Normally we keep some stock of Air Compressor Filter Dryer , so the lead time will less than 7 work days .
Is the Oil Lubricator for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:Air Lubricator, Lubricator, Compressed Air Lubricator, Air Tool Lubricator, Oil Lubricator are all for adding the lubricant oil for the following air tools , air cylinders.
What does FRL mean:(FRL meaning ) F = Compressed Air filter with water separator, cleans the compressed air of fluid oil, condensation and dirt
particles.
R= Compressed Air Regulator or Compressed Air Reducer; Adjust the output pressure .
L=Compressed Air Lubricator or Compressed Air Oiler: Injecting the lubricant oil in to the working system.
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost
