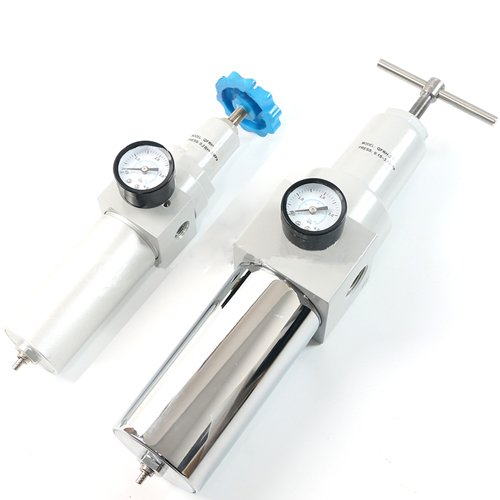

QFRH Series High Pressure Air Filter Regulator
Modular design ,huge air flow rate .
Port Size :1/8"-2" , NPT thread are vailable
Quick mounting pattern .
Reasonable price for the normal using.
QTYH SERIES High Pressure Air Filter Regulator.pdf
QTYH High Pressure Air Filter Regulator Symbol :

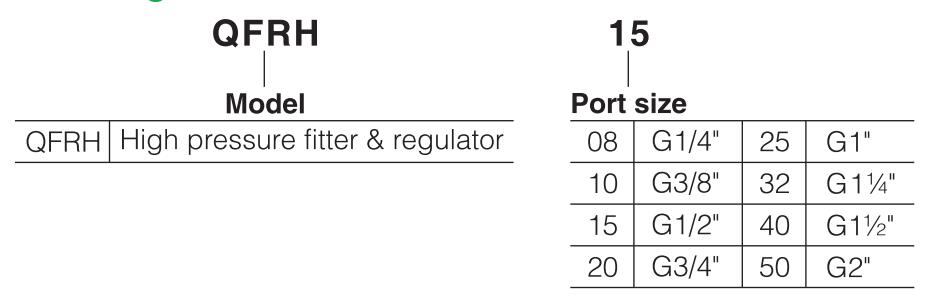

QTYH High Pressure Air Filter Regulator Order Code :
QTYH High Pressure Air Filter Regulator Specification
| Model | QFRH-08 | QFRH-10 | QFRH-15 | QFRH-20 | QFRH-25 | QFRH-32 | QFRH-40 | QFRH-50 |
| Operating Fluid | Compressed Air | |||||||
| Joint Pipe | G1/4 | G3/8 | G1/2 | G3/4 | G1 | G11/4 | G11/2 | G2 |
| Filter Precision | 20μm or 40μm | |||||||
| Range Of Adjustable | 0.15～3.5Mpa | |||||||
| Max.Pressure | 4.0Mpa | |||||||
| Temperature | 5-80℃ | |||||||
Where the high pressure QTYH High Pressure Air Filter Regulator were used ? (Appliliance)
Normally it were used to control the airline pressure . From the high pressure air tank , the pressure is too high .
With High pressure regulator , we could get the stable air pressure .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the QTYH High Pressure Air Filter Regulator sample for free ?
Yes , if one sample .
Certification: ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 15 work days
Note: High Pressure Air Regulator, High Pressure Filter Regulator, High Pressure Air Filter, High Pressure Regulator, High Pressure Airline Regulations are all for the mainline working .
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
