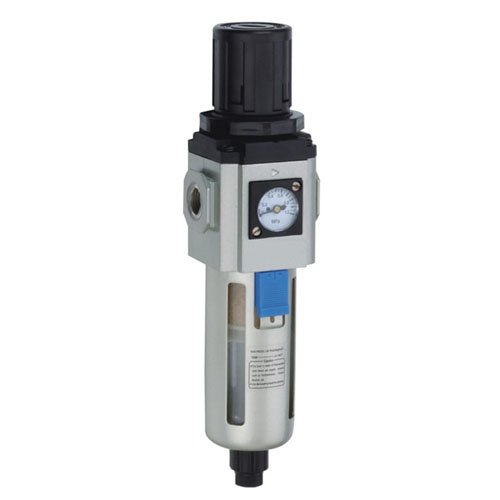

GFR Series Air Filter And Regulator
GRF Air Filter And Regulator Feature
1. Embedded square pressure gauge is used to save installation space. (External circular pressure gauge is also optional).
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. Balanced design is adopted for the pressure adjustment mechanism.
4. In addition to standard type, lower pressure type is optional(The highest adjustable pressure is 0.4MPa).
5. Unique diversion structure spins the air flowing through to effectively sparate the liquid from the air and reliabily filter the solid grain.
6. The filtering grade inclueds 5μm and 40μm (optional).
7. Three drain types are available: manual drain, semi-auto drain and automatic drain.
8. The bracket can be selected for installation.
GFR Series Air Filter And Regulator.pdf

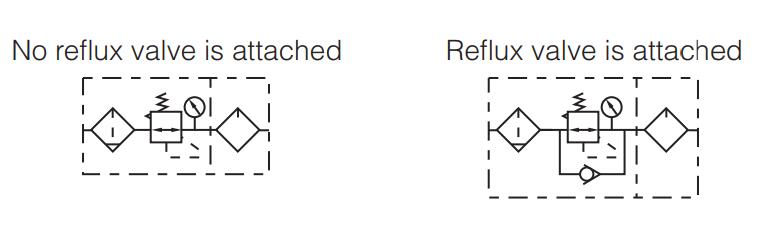

GFR Air Filter And Regulator Symbol:

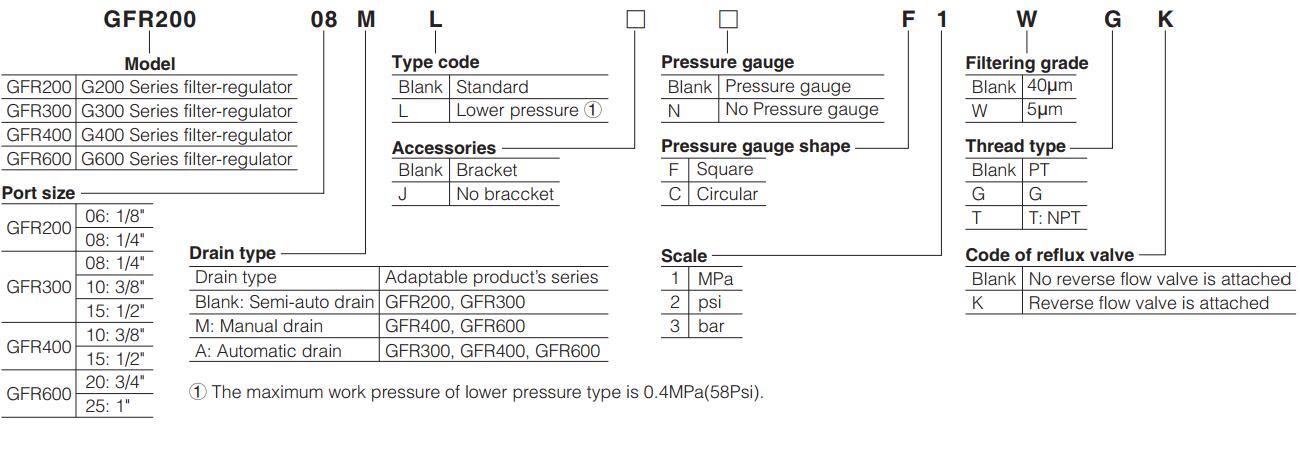

GFR Air Filter And Regulator Ordering Code :
GFR Air Filter And Regulator Specification
Model | GFR200-06 | GFR200-08 | GFR300-08 | GFR300-10 | GFR300-15 | GFR400-10 | GFR400-15 | GFR600-20 | GFR600-25 |
Fluid | Air | ||||||||
Port size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | PT3/8 | PT1/2 | PT3/4 | PT1 |
Fitering grade | 40μm or 5μm | ||||||||
Pressure range | Semi-auto and automatic drain:0.15~0.9MPa(20~130psi); Manual drain: 0.05~0.9MPa(7~130psi) | ||||||||
Max. pressure | 1.0MPa(145psi) | ||||||||
Proof pressure | 1.5MPa(215psi) | ||||||||
Temperature range | -5~70℃ | ||||||||
Capacity of drain bowl | 10CC | 40CC | 80CC | 230CC | |||||
Weight | 220g | 500g | 1030g | 2400g | |||||
① PT thread, G thread and NPT thread are available.
Where the AIRTAC standard air filter and regulator GFR were used ? (Appliliance)
Normally it were installed on the machine to control the input pressure air .
Or as the airline pressure controller . With the pressure regulator , we could get the stable air output pressure .And filtrate the solid grain , seperate the water from the pressure air .
The difference with other air filter regulator lubricator combo .
The working pressure could reach 1.2Map . Which could satisfy most of the customer's request .
Compared with F2,AW,AFR Sereis filter regulator combo, GFR has the same function , but with the compact desgin as the builted-in pressure gauge .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the GFR Air Filter And Regulator sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: GFR Filter Regulator, AIRTAC Air Filter Regulator, FRL Filter Regulator, Air Compressor Filter Regulator, Air Line Filter Regulator are all for controlling the air line pressrue and filtrate the water,condensation and dirt particle.
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
