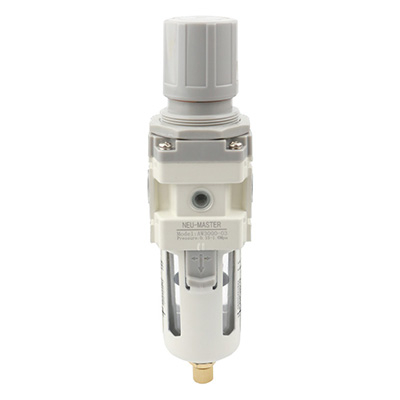

AW Series Air Filter Regulator
AW air combination Filter and Regulator ,equivalent to SMC AW Series
Max working pressure :1.0Mpa ; Proof Pressure :1.5Mpa
Could be used on the air compressor , and air line . To dry the air , and regulate pressure .
Different Auto drain valve for choosing.The filter regulator units have
With gauge or without gauge choice. And with the Psi, Bar, Mpa measurement for choosing .
PT,G,NPT Thread are available for the pneumatic filter regulators ,from M5 to 3/4" .
AW Series Air Filter Regulator.pdf
AW Series Filter Regulator Symbol:
This combination Filter/Regulator minimizes space and piping by integrating the 2 units into one.
Standard features include a relieving regulator which can be quickly locked by pushing down on the adjacent knob.
There are many options, which include gauges, auto-drain, metal bowl and covers, different set pressures, etc. The AW is part of the family of modular air preparation units and can be combined with other similar sized products.
AW Series Filter Regulator Ordering Code:
AW Series Filter Regulator Specification
Model | Manual drain | AW1000-M5 | AW2000-02 | AW3000-02 | AW3000-03 | AW4000-03 | AW4000-04 | AW4000-06 | AW5000-06 | AW5000-10 | |
Automatic drain | AW1000-M5D | AW2000-02D | AW3000-02D | AW3000-03D | AW4000-03D | AW4000-04D | AW4000-06D | AW5000-06D | AW5000-10D | ||
Port size | M5×8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 | ||
Pressure gauge size | 1/16 | 1/8 | 1/8 | 1/8 | 1/8 | 1/4 | 1/4 | 1/4 | 1/4 | ||
Rated flow(L\min) | 100 | 550 | 2000 | 2000 | 4000 | 4000 | 4500 | 5000 | 5000 | ||
Proof pressure | 1.5MPa{15.3kgf/cm2} | ||||||||||
Max. pressure | 1.0MPa{10.2kgf/cm2} | ||||||||||
Temperature range | 5~60℃ | ||||||||||
Filtering grade | 5μm | ||||||||||
Recommended oil | Turbine No. 1 oil ISO VG32 | ||||||||||
Cup material | Polycarbonate | ||||||||||
Cup protective cover | AW1000~2000(Without) AW3000~5000(With) | ||||||||||
Pressure range | AW1000: 0.05-0.7MPa(0.51~7.1kgf/cm2); AW2000~5000: 0.05~0.85MPa(0.51~8.7kgf/cm2) | ||||||||||
Valve type | With overflow | ||||||||||
Assembly | Manual drain | C100F | C200F | C300F | C300F | C400F | C400F | - | - | - | |
Automatic drain | AD61 | AD62 | AD43 | AD43 | AD44 | AD44 | - | - | - | ||
Weight(kg) | 0.09 | 0.36 | 0.56 | 0.56 | 1.15 | 1.15 | 1.21 | 1.7 | 1.7 | ||
Note: 1. there are 2, 10, 20, 40, 70, 100μm to choose from
.2. Standard automatic drainage for normally open(N.O.), AC3010~5010 also has normally closed(N.C.)to choose from, and the lowest use pressure: normally open -0.1MPa(1kgf/cm2), normally closed -0.15MPa(1.5kgf/cm2).
3. Supply pressure is 0.7MPa(7.1kgf/cm2) case.
Where the SMC standard air filter regulator lubricator were used ? (Appliliance)
Normally it were installed on the machine to control the input pressure air .
Or as the airline pressure controller . With the pressure regulator , we could get the stable air output pressure .
The difference with other air filter regulator lubricator combo .
The working pressure could reach 1.2Map . Which could satisfy most of the customer's request .
Compared with F2 Sereis filter regulator combo, AW has the same function , but with the lower cost .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the AW Series Filter Regulator sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: air filter regulator, filter regulator, SMC filter regulator, SMC Filter And Regulator, Filter Pressure Regulator are all for controlling the air line pressrue
and filtrate the water,condensation and dirt particle.
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
