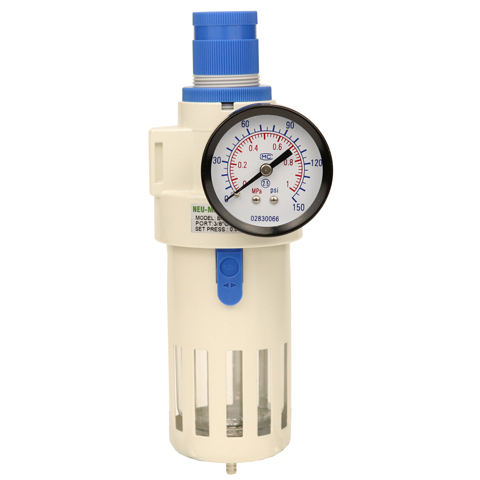

AFR/BFR Series Air Compressor Filter Regulator
FR Air Compressor Filter Regulator AFR/BFR equivalent to AIRTAC AFR/BFR Series
Different Auto drain valve for choosing.
With manometer or without manometer choice.
Port size : M5*0.8;1/8";1/4";3/8";1/2";1"
PT,G,NPT Thread are available .
Short delivery time ,reasonable cost,durable feature .
AFR,BFR Series Air Compressor Filter Regulator.pdf

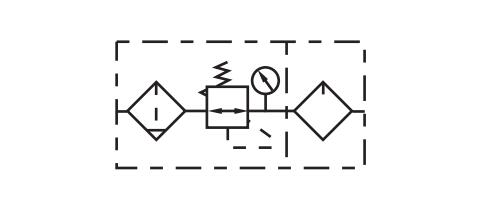

FR/BFR Air Compressor Filter Regulator Symbol:
FR/BFR Series Air Compressor Filter Regulator Feature
1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. The pressure loss is low and the efficiency of water separating is high.
4. In addition to standard type, lower pressure type is optional(The highest adjustable pressure is 0.4MPa).

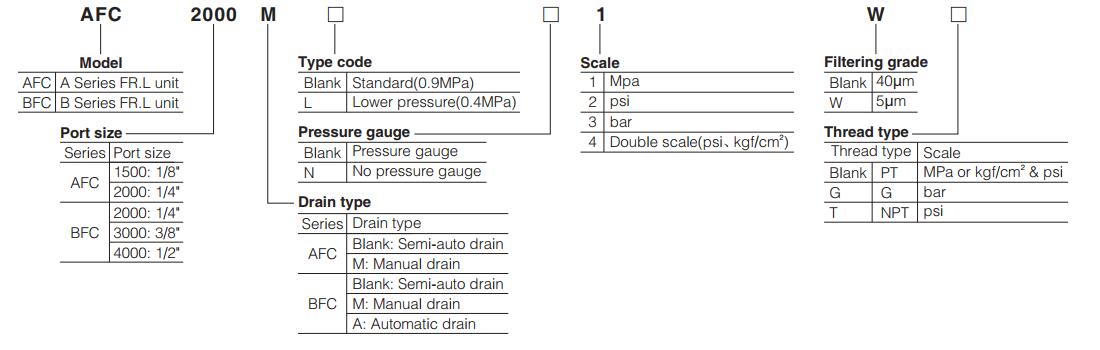

FR/BFR Series Air Compressor Filter Regulator Code :
AFR/BFR Series Air Compressor Filter Regulator Specification
Model | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 |
Fluid | Air | ||||
Port size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 |
Filtering grade | 40μm or 5μm | ||||
Pressure range | Semi-auto and automatic drain:0.15~0.9MPa(20~130psi); Manual drain: 0.05~0.9MPa(7~130psi) | ||||
Max. pressure | 1.0MPa(145psi) | ||||
Proof pressure | 1.5MPa(215psi) | ||||
Temperature range | -5~70℃ | ||||
Capacity of drain bowl | 15CC | 60CC | |||
Weight | 260g | 400g | |||
① PT thread, G thread and NPT thread are available.
Where the Airtac FR/BFR Series Air Compressor Filter Regulator were used ? (Appliliance)
Normally it were installed on the machine to control the input pressure air . filtrate the water,condensation and dirt particle.
Or as the airline pressure controller . With the pressure regulator , we could get the stable air output pressure .
The difference with other air filter regulator lubricator combo .
The working pressure could reach 1.2Map . Which could satisfy most of the customer's request .
Compared with F3 Sereis filter regulator lubricator combo, F2 has the same function , but with the lower cost .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the AFR/BFR Series Air Compressor Filter Regulator sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:Airtac standard Air Filter Regulator, Filter Regulator,Airline Filter Regulator, Airtac Filter Regulator are all for controlling the air line output pressrue and filtrate the water,condensation and dirt particle.
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
