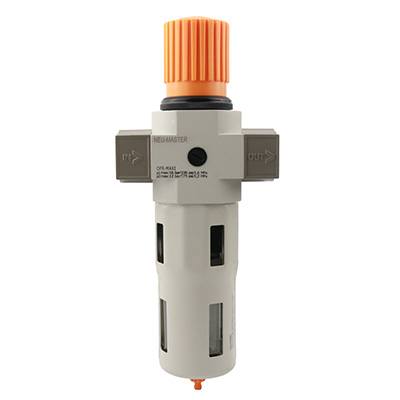

F1 Series Air Filter Regulator Combination
F1 Consisted of air regulator and air filter, each can be ordered separately.
2-unit combination(FR) F1-MINI/MIDI/MAXI
Max working pressure 1.2Mpa
Port Size :1/8"-1" , NPT thread are vailable
Reliable adjustment of oil supply,quick mounting pattern .
Easy to maintain and operate ,long service life .
OFR Series Air Filter-Regulator.pdf

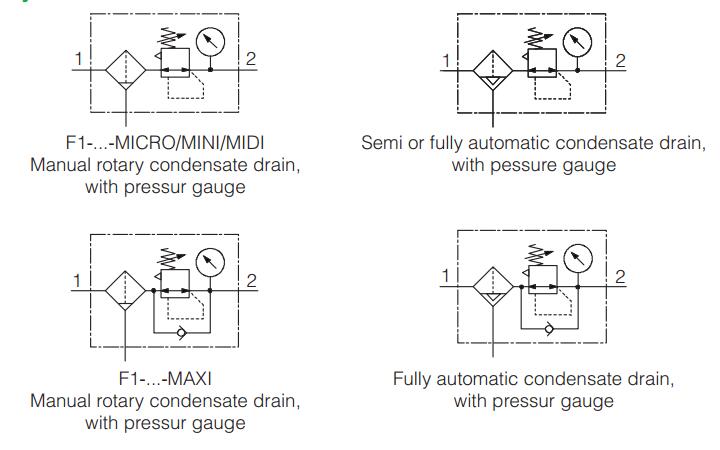

F1 Air Filter Regulator Symbol:
F1 Air Filter Regulator Installation and use
Filter and pressure regulator combine a single unit,and cleans the condensation and dirt particles. For special application, the standard 40μm filter element may easliy be replaced by a 5μm filter element. The R maintain inputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.

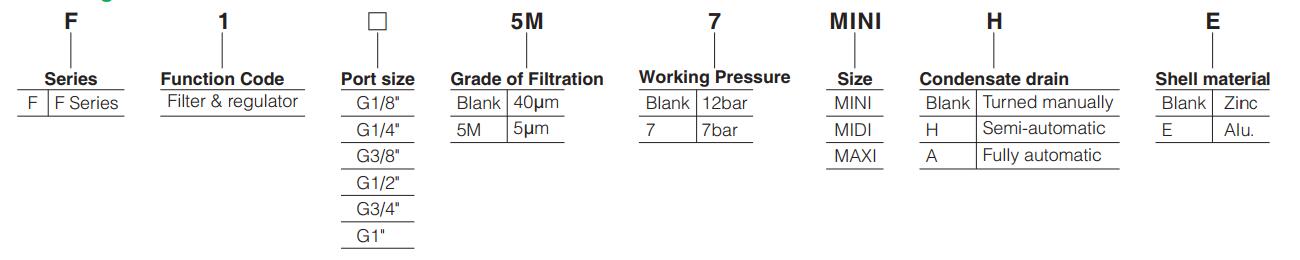

F1 Air Filter Regulator Ordering Code :
F1 Air Filter Regulator Specification :
Size | Micro | Mini | Midi | Maxi | ||||||||||||
Pneumatic connection | M5 | M7 | G1/8 | QS4 | QS6 | G1/8 | G1/4 | G3/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1/2 | G3/4 | G1 | |
Operating medium | Compressed air | |||||||||||||||
Design | Filter regulator, with/without pressure gauge | |||||||||||||||
Type of mounting | Via accessories | |||||||||||||||
In-line installation | ||||||||||||||||
Assembly position | Vertical ±5° | |||||||||||||||
Regulator lock | Rotary knob with lock | |||||||||||||||
- | Rotary knob with lock | |||||||||||||||
Grade of filtration (μm) | 5 | 5(or)40 | 0.4 | |||||||||||||
Max. hysteresis (bar) | 0.3 | 0.2 | ||||||||||||||
Pressure regulation range (bar) | 0.5…7 | 0.5…7 | ||||||||||||||
0.5…12 | ||||||||||||||||
Pressure indication | Via pressure gauge | |||||||||||||||
M5 Prepared | G1/8 Prepared | G1/ 4 Prepared | G1/ 4 Prepared | |||||||||||||
Max. condensate volume (cm3) | 3 | 22 | 43 | 80 | ||||||||||||
Input pressure (bar) | ||||||||||||||||
Condensate drain | Turnde manually | 1…10 | 2…16 | |||||||||||||
Semi-automatic | 1…10 | - | ||||||||||||||
Fully automatic | - | 2…12 | ||||||||||||||
Where the festo standard air filter regulator lubricator were used ? (Appliliance)
Normally it were installed on the machine to control the input pressure air .
Or as the airline pressure controller . With the pressure regulator , we could get the stable air output pressure .
The difference with other air filter regulator lubricator combo .
The working pressure could reach 1.2Map . Which could satisfy most of the customer's request .
Compared with F3 Sereis filter regulator lubricator combo, F2 has the same function , but with the lower cost .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the F1 Air Filter Regulator sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:Festo standard FR ,Air Regulator and filter,Airline Filter Regulator,filter regulator, Pneumatic Regulator are all for controlling the air line pressrue
and filtrate the water,condensation and dirt particle.
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
