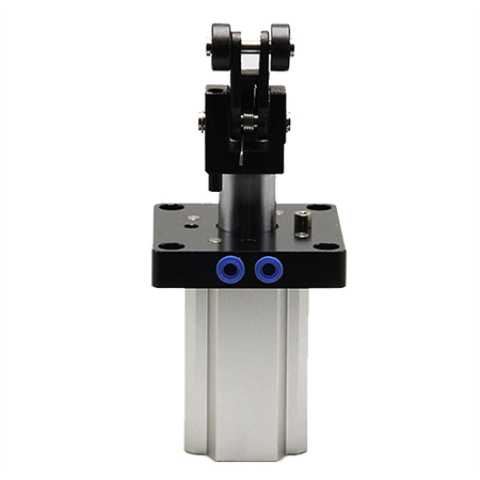

Pneumatic Stopper Cylinder TWH,TWM Double Acting Bore Size 20 to 80 Equal To AIRTAC TWH TWM Stopper Cylinder
Product Feature
Pneumatic stopper cylinder, double acting, bore 20mm-80mm with magnet, shockless stopper (Non-adjustable absorber)
●Widening the piston rod can effectively improve that impact resistance ability of the cylinder.
●Heavy type stopper cylinder has adjustable shock absorber, which can reliably absorb the impact energy.●Shockless stopper cylinder is equipped with selflock device, which can prevent the returning of rebound of rocker caused by bar
objects.
●Several series and specifications for stopper cylinders can be selected.
| Catalog: |

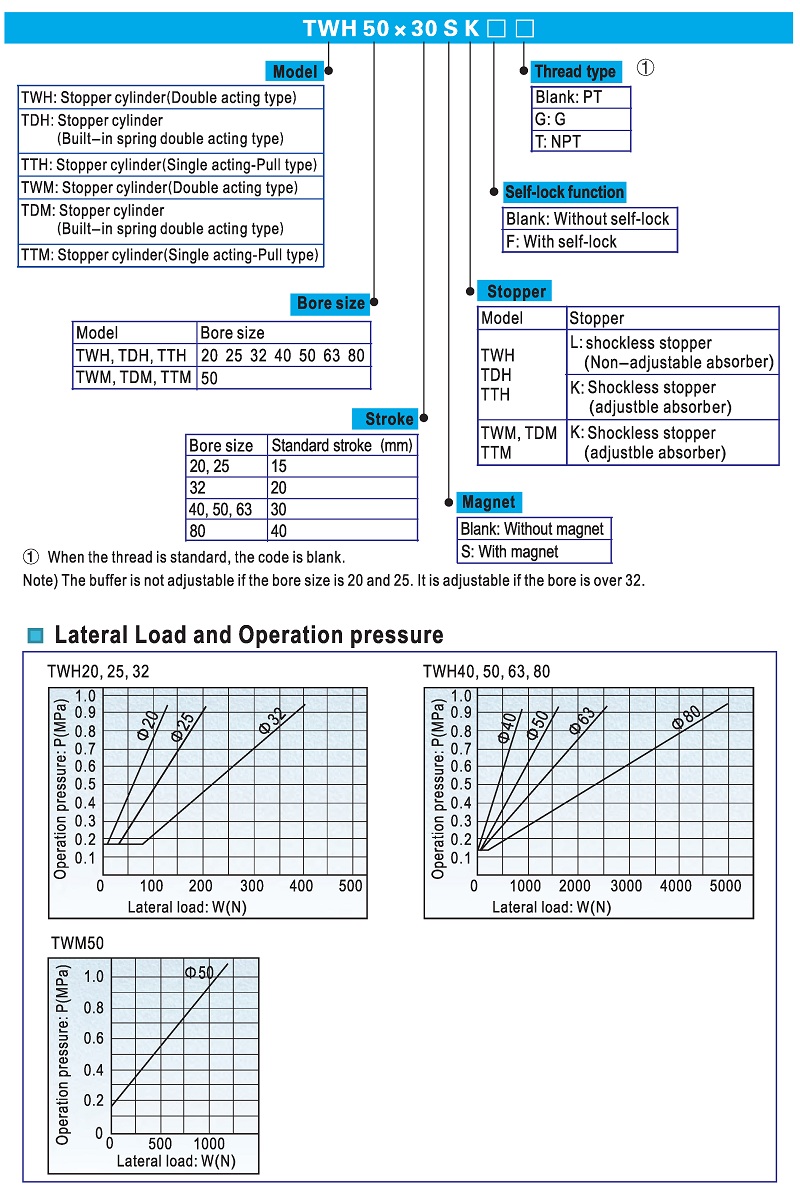

Pneumatic Stopper Cylinder TWH,TWM Ordering Code
Pneumatic Stopper Cylinder TWH,TWM Specification
| Stopper Cylinder Series | TWH | TWM | |||||||
| Bore Size | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 50 | |
| Fluid | Air (To be filtered by 40чm filter element) | ||||||||
| Action | Double acting type, Single acting-pull type | ||||||||
Operation Pressure | Double Acting Type | 0.15∽1.0Mpa(23∽145Psi) | |||||||
| Single Acting-Pull Type | Φ20:0.25∽1.0Mpa(35∽145Psi) Others:0.2∽1.0Mpa(28∽145psi) | ||||||||
| Proof Pressure | 1.5Mpa(215Psi) | ||||||||
| Temperature ℃ | -20∽80 | ||||||||
| Range of stroke tolerance | 0+1.0 | ||||||||
| Cushion type | Bumper | ||||||||
| Lubrication | Non Required | ||||||||
| Mounting Type | Flange | ||||||||
| Stopper type | Shock less absorber With non adjustable absorber | Shock less absorber With adjustable absorber | |||||||
| Port Size | M5x0.8 | 1/8" | 1/4" | 1/8" | |||||
| Sensor's thread | M5x0.5 | M8x1.0 | |||||||

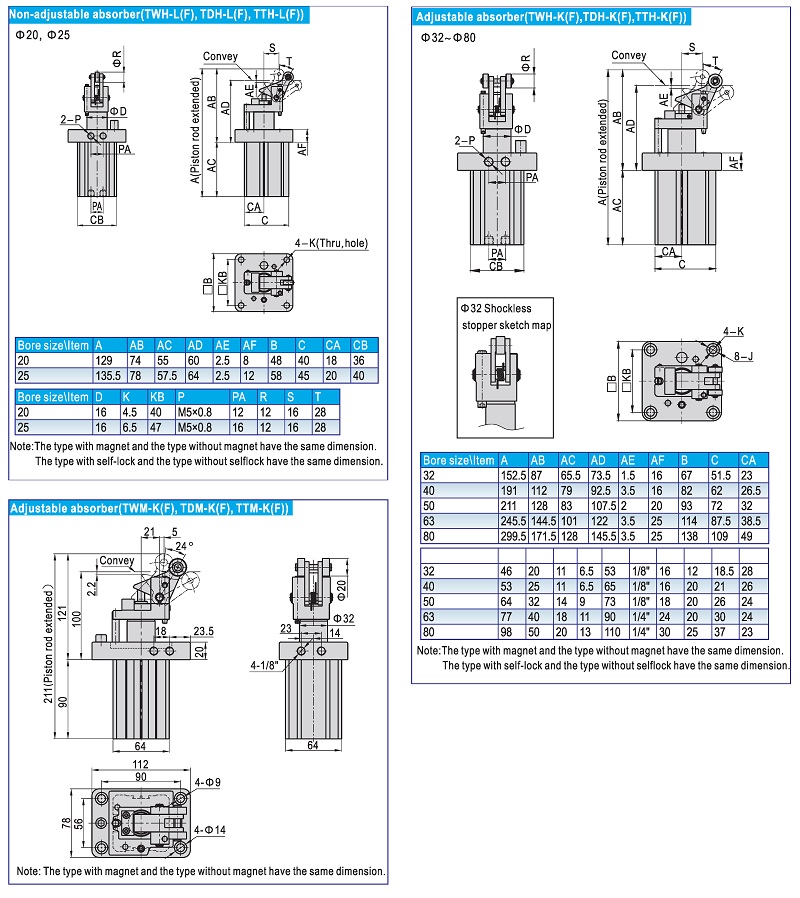

Booster Cylinder NPM UnClamping Cylinder dimensions
Neu-Master Pneumatic warrants these Pneumatic Stopper Cylinder TWH,TWM to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Pneumatic Stopper Cylinder TWH,TWM, delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
