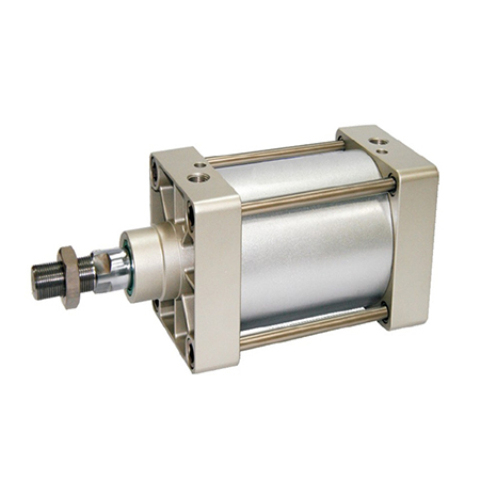

SGC ISO 15552 Big Bore Size Double Acting Pneumatic Cylinder Bore Size 125 To 320mm
Product Feature
●SGC ISO 15552 big bore double acting pneumatic cylinder manufactured by Neu-Master
●The cylinder seal of piston adopts two Y shape seal single-direction structure.Which has compensation function,
long service life and low start-up pressure.
●Normal bore size from 125mm to 320mm, stroke from 5 to 1500mm
●The buffer adjustment of cylinder is smooth and steady.
●It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with the high reliability
●Cylinder and mounting accessories with several specifications are optional
SGC Big Bore Double Acting Pneumatic Cylinder Ordering Code
SGC Big Bore Double Acting Pneumatic Cylinder Specification
| Bore Size(mm) | 125 | 160 | 200 | 250 | 320 | |
| Acting type | Double Acting | |||||
| Fluid | Air (To be filtered by 40μm filter element) | |||||
| Mouting Type | DNC | Basic FA FB CA CB LB TC FTC TCM1 TCM2 | ||||
| SUD,SUJ | Basic FA LB TC FTC TCM1 TCM2 | |||||
| Operating Pressure | 0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar) | |||||
| Proof Pressure | 1.5Mpa(215Psi)(15Bar) | |||||
| Temperature℃ | -20∽80 | |||||
| Speed Range mm/s | 30∽500mm/s | |||||
| Stroke Tolerance | 0∽250:+1.0; 251∽1000:+1.5; 1000∽1500:+2.0; | |||||
| Cushion Type | Variable Cushion | |||||
Adjustable Cushion Stroke mm | 40 | 50 | 36 | |||
| Port Size① | 1/2" | 3/4" | 1" | |||
① PT thread , G thread ,NPT thread are available
②Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safety and with low noise.
③With self-lubricating bearing, the piston rod is lubrication free.Magnet and sufficient Fixing styles are available.
SGC Big Bore Double Acting Pneumatic Cylinder Stroke
| Bore Size(mm) | Standard Stroke(mm) | Max. Stroke | Permissible Stroke |
| 125 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 160 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 200 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 250 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 320 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the SGC Big Bore Double Acting Pneumatic Cylinder , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
