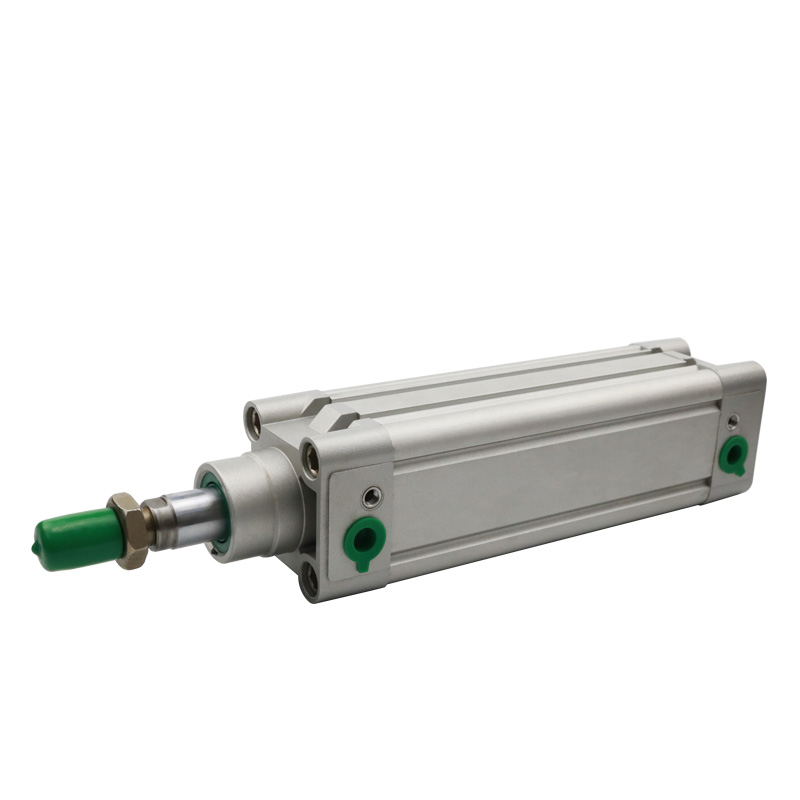

DNC ISO 15552 Profile Double Acting Cylinder Bore Size 32 To 125mm Equal To FESTO DNC Double Acting Cylinder
Product Feature
●DNC ISO 15552 Profile Double Acting Cylinder manufactured by Neu-Master
●According to ISO6431 standard, VDMA24562 standard and DIN24335 standard,equal to FESTO DNC series
●The cylinder seal of piston adopts two way seal structure. The tight dimension has the function of the grease reservation.
●Normal bore size from 32mm to 150mm, stroke from 5 to 1000mm
●The buffer adjustment of cylinder is smooth and steady,Aluminum Alloy Material barrel, good anti-corrosion performance.
●Cylinder and mounting accessories with several specifications are optional

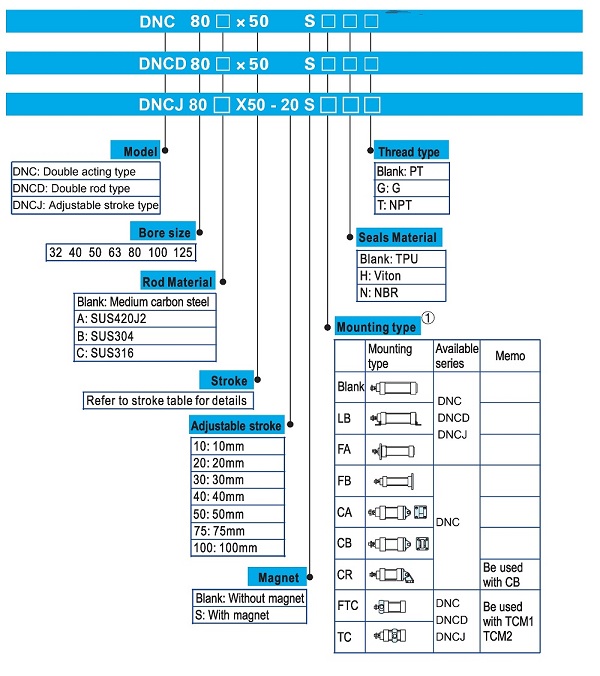

DNC Double Acting Cylinder Ordering Code
DNC Double Acting Cylinder Specification
| Bore Size(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | |
| Acting type | Double Acting | |||||||
| Fluid | Air (To be filtered by 40μm filter element) | |||||||
| Mouting Type | DNC | Basic FA FB CA CB LB TC FTC TCM1 TCM2 | ||||||
| SUD,SUJ | Basic FA LB TC FTC TCM1 TCM2 | |||||||
| Operating Pressure | 0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar) | |||||||
| Proof Pressure | 1.5Mpa(215Psi)(15Bar) | |||||||
| Temperature℃ | -20∽80 | |||||||
| Speed Range mm/s | 30∽800mm/s | 30∽500mm | ||||||
| Stroke Tolerance | 0∽250:+1.0; 251∽1000:+1.5; 1000∽1500:+2.0; | |||||||
| Cushion Type | Variable Cushion | |||||||
Adjustable Cushion Stroke mm | 27 | 30 | 36 | 40 | ||||
| Port Size① | 1/8" | 1/4" | 3/8" | 1/2" | ||||
① PT thread , G thread ,NPT thread are available
②DNC Cylinder, with slot on the cylinder barrel and end covers for magnet sensor mounting more conveniently.
③Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safety and with low noise.
④With self-lubricating bearing, the piston rod is lubrication free.Magnet and sufficient Fixing styles are available
DNC Double Acting Cylinder Stroke
| Bore Size(mm) | Standard Stroke | Max. Stroke | Permissible Stroke |
| 32 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 1000 | 1800 |
| 40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 1800 |
| 50 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 1800 |
| 63 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 80 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 100 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 125 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the DNC Double Acting Cylinder , delivery time ?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
