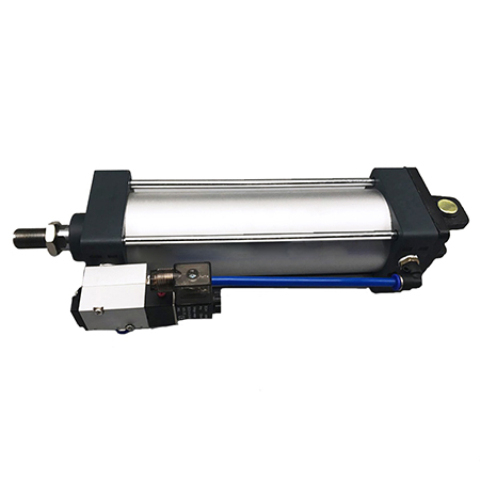

SCF Tie-rod Pneumatic Cylinder With Solenoid Valve Work Bore Size 32 To 100mm Double Acting Type
Product Feature
●Pneumatic Cylinder with solenoid valve combined manufactured by Neu-Master
●For Standard Cylinder:Use 4M210 Namur valve for bore 32,40&50;4M310 Namur solenoid valve for bore size 63,80,100.
●It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with the high reliability
●Individually control,no need for extra solenoid valves.
●The buffer adjustment of cylinder is smooth and steady
●Options of mounting accessories & easy installation
● Installation time&space saving;suitable for decentralize installation in large system

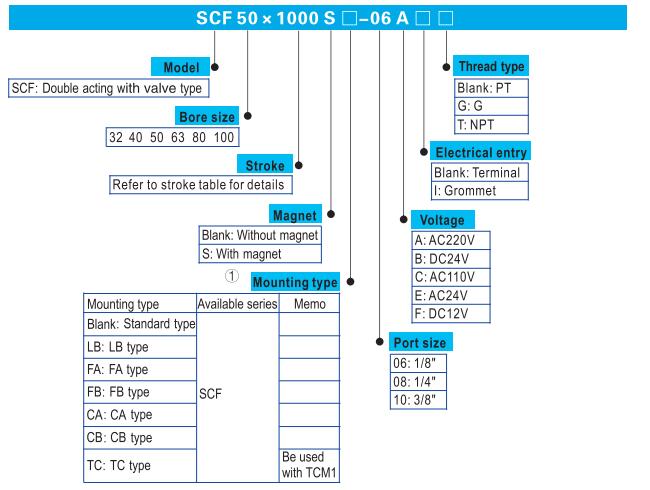

SCF Pneumatic Cylinder With Solenoid Valve Combo Ordering Code
SCF Pneumatic Cylinder With Solenoid Valve Specification
| Bore Size(mm) | 32 | 40 | 50 | 63 | 80 | 100 | |
| Acting type | Double Acting | ||||||
| Fluid | Air (To be filtered by 40μm filter element) | ||||||
| Mouting Type | Basic FA FB CA CB LB TC TCM1 | ||||||
| Operating Pressure | 0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar) | ||||||
| Proof Pressure | 1.5Mpa(215Psi)(15Bar) | ||||||
| Temperature℃ | -20∽80 | ||||||
| Speed Range mm/s | 30∽800mm/s | ||||||
| Stroke Tolerance | 0∽250:+1.0; 251∽1000:+1.5; 1000∽1500:+2.0; | ||||||
| Cushion Type | Variable Cushion | ||||||
Adjustable Cushion Stroke mm | 21 | 28 | 29 | ||||
| Port Size① | 1/8" | 1/4" | 3/8" | 1/2" | |||
| PU Tube Size(OD*ID) | 8*5 (mm) | 10*6.5 (mm) | |||||
| Solenoid Valve Specification | |||||||
| Model | 4M210-06&4M210-08 | 4M310-08&4M310-10 | |||||
| Fluid | Air (To be filtered by 40μm filter element) | ||||||
| Acting Type | Internal Piloted | ||||||
| Port Size | 4M210-06:In=Exhaust=1/8" 4M210-08:In=1/4" Exhaust=1/8" | 4M310-08:In=Exhaust=1/4" 4M310-10:In=3/8" Exhaust=1/4" | |||||
| Orifice Size | 4M210-06: 14m㎡ (Cv=0.78) 4M210-08: 16m㎡ (Cv=0.89) | 4M310-08: 25m㎡ (Cv=1.40) 4M310-10: 30m㎡ (Cv=1.68) | |||||
| Valve Type | 5port 2 Position | ||||||
| Operation Pressure | 0.15∽0.80Mpa(21∽114Psi) | ||||||
| Proof Pressure | 1.5Mpa(215Psi)(15Bar) | ||||||
| Temperature ℃ | -20∽80 | ||||||
| Lubrication | No Required | ||||||
| Max. Frequency | 5 Cycles/Sec. | 4 Cycles/Sec. | |||||
| Coil Specification | |||||||
| Standard Voltage | AC220V AC110V AC24V DC24V DC12V | ||||||
| Scope Voltage | AC±15% ; DC±10% | ||||||
| Power Consumption | AC 3.5VA ; DC 3.0W | ||||||
| Protection | IP65(DIN40050) | ||||||
| Temperature Classification | B Class | ||||||
| Electrical entry | Terminal;Grommet | ||||||
| Activating Time | 0.05 Sec. and below | ||||||
① PT thread , G thread ,NPT thread are available
② It cann't stop in the midway of lubricating. Lubricants such as ISO VG32 or equivalent are recommended.
③ The maximum actuation frequency is in no-loading state.
SCF Pneumatic Cylinder With Solenoid Valve Stroke
| Bore Size(mm) | Standard Stroke | Min Stroke | Max. Standard Stroke | Permissible Stroke | |
| 32 | Standard Type | 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 50 | 1000 | 2000 |
| With TC Type | 125 150 160 175 200 250 300 350 400 450 500 | 100 | |||
| 40 50 | Standard Type | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 50 | 1200 | |
| With TC Type | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 100 | |||
| 63 80 100 | Standard Type | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 75 | 1500 | |
| With TC Type | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 125 | |||
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the SCF penumatic cylinder with solenoid valve combo, delivery time ?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
