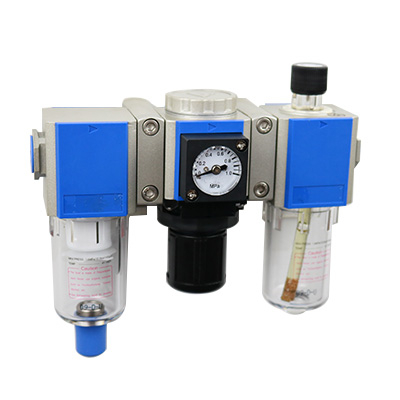

GC Series Air Filter Regulator Lubricator
Same standard as AIRTAC GC type Filter Regulator Lubricator .
Modular design ,compact configuration
3-unit combination(F+R+L) GC200/300/400/600
Port Size :1/8"-1" , NPT Thread Are Vailable
Reliable adjustment of oil supply,quick mounting pattern .
Reasonable price for the normal using.
GC Series Air Filter Regulator Lubricator.pdf

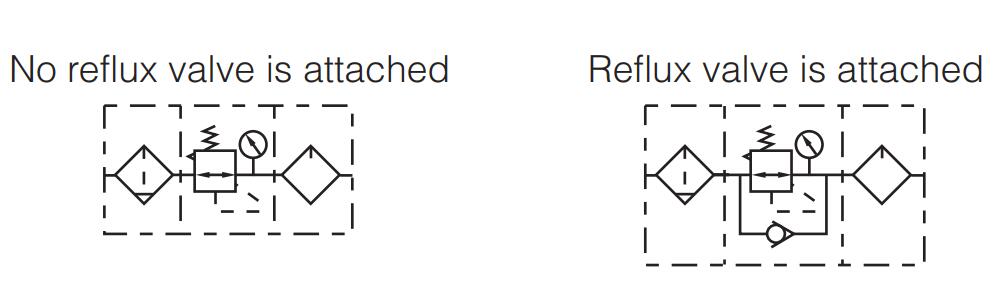

GC Filter Regulator Lubricator Symbol :

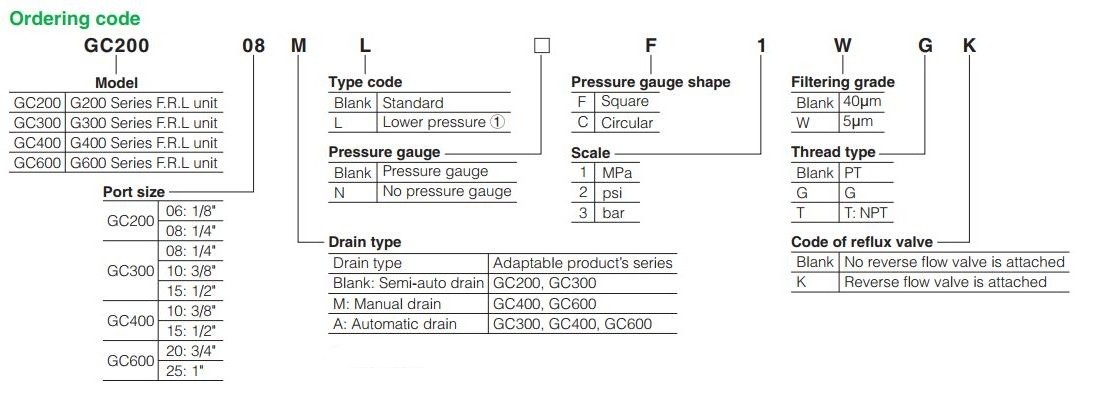

GC Filter Regulator Lubricator Ordering Code:
Note:① The maximum work pressure of lower pressure type is 0.4Mpa(58Psi)
GC Filter Regulator Lubricator Feature
1. Oil dripping adopts gap seal structure, which makes the adjustment of oil supply more reliable.
2. Oil feed ring can only make one full turn. The quantity of oil supply, basically taking on linear distribution. The quantity of oil supply can be generally calculated according to the position of graduation ring.
3. Filling of oil while the lubricator is under pressure ismade possible.
4. Special drip nozzle structure will produce negative pressure in oil dripping outlet and the mist flow isminimal.
5. Quick and reliable mounting clamps makes it convenient to install and use.
6. The performance of pressure adjustment is reliablewith high precision.
7. The efficiency of eliminating moisture and solid grain is high.
8. Three drain types are available: manual drain, semi-auto drain and automatic drain.
GC Filter Regulator Lubricator Specification
Model | GC200-06 | GC200-08 | GC300-08 | GC300-10 | GC300-15 | GC400-10 | GC400-15 | GC600-20 | GC600-25 | |
Fluid | Air | |||||||||
Port size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | PT3/8 | PT1/2 | PT3/4 | PT1 | |
Fitering grade | 40μm or 5μm | |||||||||
Pressure range | Semi-auto and automatic drain:0.15~0.9MPa(20~130psi); Manual drain: 0.05~0.9MPa(7~130psi) | |||||||||
Max. pressure | 1.0MPa(145psi) | |||||||||
Proof pressure | 1.5MPa(215psi) | |||||||||
Temperature range | -5~70℃ | |||||||||
Capacity of drain bowl | 10CC | 40CC | 80CC | 230CC | ||||||
Capacity of oil bowl | 25CC | 75CC | 160CC | 380CC | ||||||
Recommended lubricant | ISO VG 32 or equivalent | |||||||||
Weight | 580g | 1300g | 2360g | 5550g | ||||||
Constitute | Filter | GF200-06 | GF200-08 | GF300-08 | GF300-10 | GF300-15 | GF400-10 | GF400-15 | GF600-20 | GF600-25 |
Regulator | GR200-06 | GR200-08 | GR300-08 | GR300-10 | GR300-15 | GR400-10 | GR400-15 | GR600-20 | GR600-25 | |
Lubricator | GL200-06 | GL200-08 | GL300-08 | GL300-10 | GL300-15 | GL400-10 | GL400-15 | GL600-20 | GL600-25 |
① PT thread, G thread and NPT thread are available.
Where the GC Filter Regulator Lubricator combo were used ?
Normally it was used with the machinery . To filter the water from the compressed air , adjust the air pressure in to the machine system ,and add the lubricant oil in the system .
The difference with other air filter regulator lubricator combo .
With the built-in pressure gauge, space-saving .
Please attention : it could be connected with the air compressor , but not the best choice.
If you choose the Filter Regulator Lubricator for main line working ,please choose the following products :
Mainline Regulator : http://www.neu-master.com/QTY-Series-Air-Regulator-pd6930963.html
Or: http://www.neu-master.com/AR-Main-Line-Air-Regulator-pd6745384.html
Mainline Filter/Water Trap : http://www.neu-master.com/AF-Main-Line-Air-Filter-pd6610284.html
Or: http://www.neu-master.com/AF-Main-Line-Air-Filter-pd6610284.html
Mainline Air Lubricator/Air Oiler :
http://www.neu-master.com/QIU-Series-Compressor-Air-Lubricator-pd6938963.html
Or : http://www.neu-master.com/AL-Main-Line-Series-Air-Lubricator-pd6010284.html
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 15work days .
Is the GC Filter Regulator Lubricator sample for free ?
Yes , for free.
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note :Air Filter Regulator Lubricator, AIRTAC Air Filter Regulator Lubricator, GC Air Filter Regulator Lubricator,
Air Filter Regulator Lubricator Combo, Air Filter Regulator Oiler are the same things .
The function is filter the water in the air, adjust the output pressure,and add the lubricant in to the compressed air .
