F3 Series FRL Unit Filter Regulator Lubricator
F3 Series FRL Unit Filter Regulator Lubricator Combination.pdf
F3 frl unit Consisted by OF,OL,OR , Each Can Be Ordered Separately.
3-unit combination(F+R+L) F3-MINI/MIDI/MAXI
Port Size :1/8"-1" , NPT Thread Are Vailable
Reliable adjustment of oil supply,quick mounting pattern .
Easy to maintain and operate ,long service life .

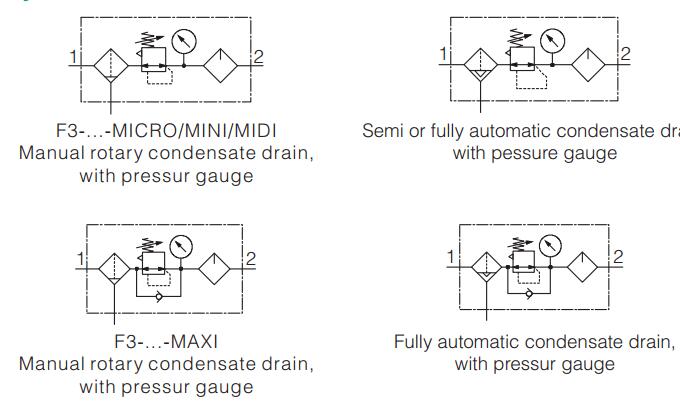

F3 FRL Unit Symbol：

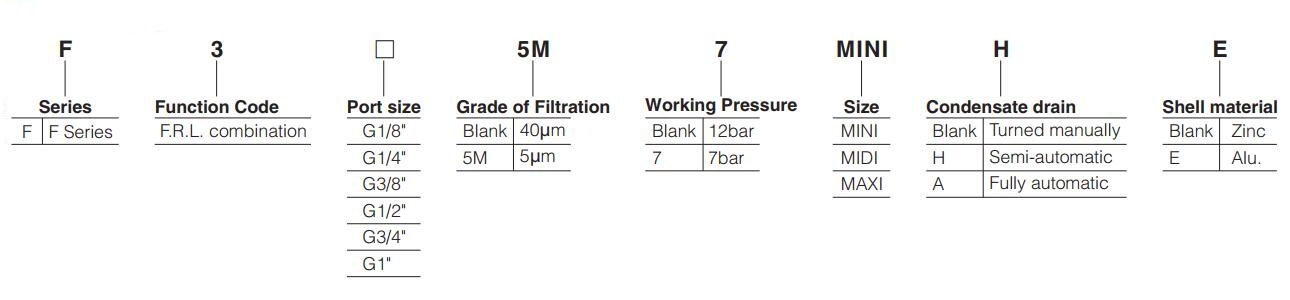

F3 FRL Unit Ordering Code :
F3 FRL Unit Installation and use
The F3 consisted of F+R+L, each unit can be ordered separately. The F with water separator cleans the compressed air of fluid oil, condensation and dirt particles. For special applicaton, the standard 40μm filter element may easily be replaced by a 5μm filter element. The R maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed. The proportional lubricator adds a regulated quantity of oil to the filtered air. The oil-mist content propotrional to the flow and oil can be added during operation. The oil drip tate is contr olled by the adjustable knob. Normally, 1 to 12 drops/1000L of the air is suffecient.
F3 FRL Unit Specification
Size frl Unit | Micro | Mini | Midi | Maxi | ||||||||||||
Pneumatic connection | M5 | M7 | G1/8 | QS4 | QS6 | G1/8 | G1/4 | G3/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1/2 | G3/4 | G1 | |
Operating medium | Compressed air | |||||||||||||||
Design | Filter regulator, with/without pressure gauge | |||||||||||||||
Proportional standard mist lubricator | ||||||||||||||||
Type of mounting | Via accessories | |||||||||||||||
In-line installation | ||||||||||||||||
Assembly position | Vertical ±5° | |||||||||||||||
Regulator lock | Rotary knob with lock | |||||||||||||||
- | Rotary knob with lock | |||||||||||||||
Grade of filtration (μm) | 5 | 5(or)40 | 0.4 | |||||||||||||
Max. hysteresis (bar) | 0.3 | 0.2 | ||||||||||||||
Pressure regulation range (bar) | 0.5…7 | 0.5…7 | ||||||||||||||
0.5…12 | ||||||||||||||||
Pressure indication | Via pressure gauge | |||||||||||||||
M5 Prepared | G1/8 Prepared | G1/ 4 Prepared | G1/ 4 Prepared | |||||||||||||
Max. condensate volume (cm3) | 3 | 22 | 43 | 80 | ||||||||||||
Input pressure (bar) | ||||||||||||||||
Condensate drain | Turnde manually | 1…10 | 2…16 | |||||||||||||
Semi-automatic | 1…10 | - | ||||||||||||||
Fully automatic | - | 2…12 | ||||||||||||||
Where the festo standard air filter regulator lubricator were used ? (Appliliance)
Normally it were installed on the machine to control the input pressure air .
Or as the airline pressure controller . With the pressure regulator , we could get the stable air output pressure .
The difference with other air filter regulator lubricator combo .
The working pressure could reach 1.2Map . Which could satisfy most of the customer's request .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the F3 FRL Unit lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the F3 FRL Unit sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:Festo Filter Regulator Lubricator, Air Filter Regulator Lubricator, Filter Regulator Lubricator, Air Tank Filter Regulator, FRL are the same equipment .All for controlling the output pressure.
FRL Meaning : F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
