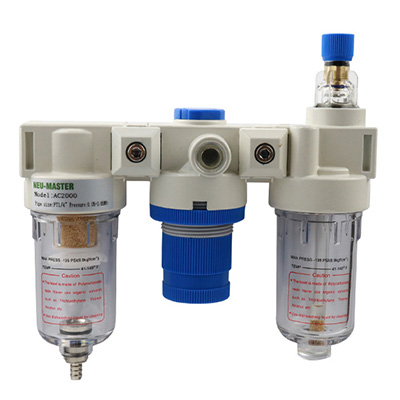

AC,BC Series Air Filter Regulator Lubricator

AC,BC Series Air Filter Regulator Lubricator

Same standard as AIRTAC AC BC type air filter regulator lubricator
Modular design ,compact configuration
3-unit combination(F+R+L) AC1500/2000,BC2000/3000/4000

Availability:



Inquire Add to Basket

Parameter

AC,BC Series Air Filter Regulator Lubricator Combination

Same standard as AIRTAC AC/BC type air filter pressure regulator lubricator

Modular design ,compact configuration

3-unit combination(FRL) AC1500/2000,BC2000/3000/4000

The short delivery time

Reasonable price for the normal using.

AC,BC Series Air Filter Regulator Lubricator.pdf

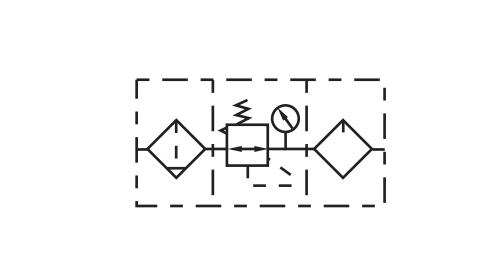

AC/BC Air Filter Regulator Lubricator Symbol :

AC-BC-Series-Air-Filter-Regulator-Lubricator-Symbol

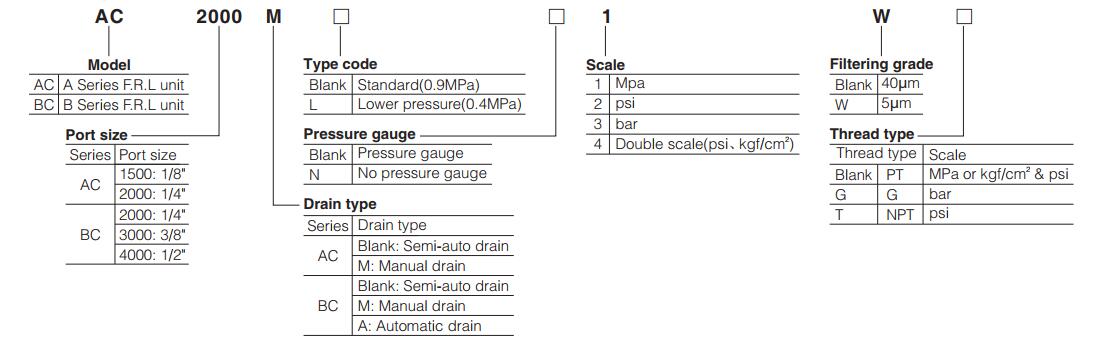

AC/BC Air Filter Regulator Lubricator Order Code:

AC/BC Air Filter Regulator Lubricator Feature
1. The structure is delicate and compact, which is convenient for installation and application.

2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.

3. The pressure loss is low and the efficiency of water separating is high.

4. The quantity of oil dripping can be directly observed through rtandsparent check-dome.

5. In addition to standard type, lower pressure type is optional(The highest adjustable pressure is 0.4MPa)

AC/BC Air Filter Regulator Lubricator Specification

Model		AC1500	AC2000	BC2000	BC3000	BC4000
Fluid		Air
Port size		PT1/8	PT1/4	PT1/4	PT3/8	PT1/2
Filtering grade		40μm or 5μm
Pressure range		Semi-auto and automatic drain:0.15~0.9MPa(20~130psi); Manual drain: 0.05~0.9MPa(7~130psi)
Max. pressure		1.0MPa(145psi)
Proof pressure		1.5MPa(215psi)
Temperature range		-5~70℃
Capacity of drain bowl		10CC		60CC
Capacity of oil bowl		25CC		90CC
Recommended		ISO VG 32 or equivalent
Weight		700g		900g
Constitute	Filter	AF1500	AF2000	BF2000	BF3000	BF4000
	Regulator	AR1500	AR2000	BR2000	BR3000	BR4000
	Lubricator	AL1500	AL2000	BL2000	BL3000	BL4000

① PT thread, G thread and NPT thread are available.

Where the Airtac standard air filter regulator lubricator were used ? (Appliliance)

Normally it were installed on the machine to control the input pressure air .

Or as the airline pressure controller . With the pressure regulator , we could get the stable air output pressure .

The difference with other air filter regulator lubricator combo .

With lower price ,but same function with other standard filter regulator lubricator combo. Which could satisfy most of the customer's low cost request .

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us .

How about the lead time , delivery time ?

Normally we keep some stock , so the lead time will less than 7 work days .

Is the sample for free ?

Yes , if one sample .

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days

Note: Air Filter Regulator Lubricator, Filter Regulator Lubricator Combinations, Air Filter Regulator Lubricator Combo, Air Filter Pressure Regulator, FRLAll for controlling the output pressure.

What's FRL Meaning : F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;

L=Compressed Air Lubricator o Compressed Air Oiler
