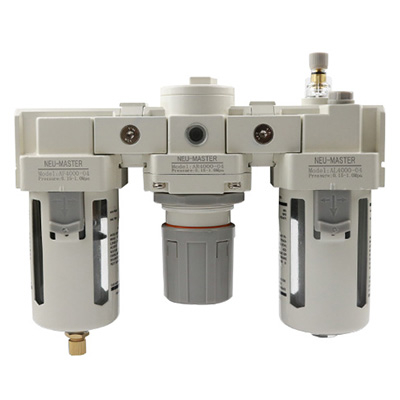

AC1000-AC5000 FRL Unit Filter Regulator Lubricator
FRL air filter regulator lubricator combination equivalent as SMC
Different Auto drain valve for air filters.
With pressure gauge or without pressure gauge for regulator
Port size : M5*0.8;1/8";1/4";3/8";1/2";1" for the pneumatic system.
PT,G,NPT Thread are available .
Short delivery time ,reasonable cost,durable feature .
AC Series Air Filter Regulator Lubricator(FRL Unit).pdf

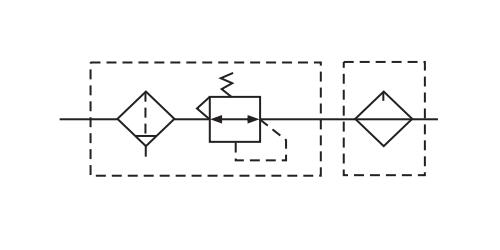

AC Series Frl Unit Symbol:

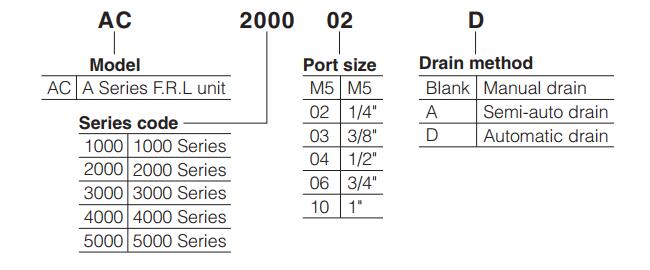

AC Series Frl Unit Ordering Code:
AC Series Frl Unit Specification
Model | Manual drain | AC1000-M5 | AC2000-02 | AC3000-02 | AC3000-03 | AC4000-03 | AC4000-04 | AC4000-06 | AC5000-06 | AC5000-10 | |
Automatic drain | AC1000-M5D | AC2000-02D | AC3000-02D | AC3000-03D | AC4000-03D | AC4000-04D | AC4000-06D | AC5000-06D | AC5000-10D | ||
Port size | M5×8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 | ||
Pressure gauge size | 1/16 | 1/8 | 1/8 | 1/8 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | ||
Rated flow(L\min) | 90 | 500 | 2000 | 2000 | 4000 | 4000 | 4500 | 5000 | 5000 | ||
Proof pressure | 1.5MPa{15.3kgf/cm2} | ||||||||||
Max. pressure | 1.0MPa{10.2kgf/cm2} | ||||||||||
Temperature range | 5~60℃ | ||||||||||
Filtering grade | 5μm | ||||||||||
Recommended oil | Turbine No. 1 oil ISO VG32 | ||||||||||
Cup material | Polycarbonate | ||||||||||
Cup protective cover | AC1000~2000(Without) AC3000~5000(With) | ||||||||||
Pressure range | AC1000: 0.05-0.7MPa(0.51~7.1kgf/cm2); AC2000~5000: 0.05~0.85MPa(0.51~8.7kgf/cm2) | ||||||||||
Valve type | With overflow | ||||||||||
Assembly | Filter | AF1000 | AF2000 | AF3000 | AF3000 | AF4000 | AF4000 | AF4000 | AF5000 | AF5000 | |
Regulator | AR1000 | AR2000 | AR3000 | AR3000 | AR4000 | AR4000 | AR4000 | AR5000 | AR5000 | ||
Lubricator | AL1000 | AL2000 | AL3000 | AL3000 | AL4000 | AL4000 | AL4000 | AL5000 | AL5000 | ||
Weight(kg) | 0.26 | 0.74 | 1.18 | 1.18 | 2.14 | 2.14 | 2.47 | 3.82 | 3.82 | ||
Note: 1. there are 2, 10, 20, 40, 70, 100μm to choose from.
2. Standard automatic drainage for normally open(N.O.), AC3000~5000 also has normally closed(N.C.)to choose from, and the lowest use pressure: normally open -0.1MPa(1kgf/cm2), normally closed -0.15MPa(1.5kgf/cm2).
3. Supply pressure is 0.7MPa(7.1kgf/cm2)case.
Where the SMC standard AC Series Frl Unit were used ? (Appliliance)
Normally it were installed on the machine to control the input pressure air .
Or as the airline pressure controller . With the pressure regulator , we could get the stable air output pressure .
The difference with other air filter regulator lubricator combo .
They are a standard Filter Regulator Lubricator Combo . With the medium price , and stable performance .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the AC Series Frl Unit sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:Air Filter Regulator Lubricator, FRL Meaning, Filter Pressure Regulator Lubricator, SMC Pressure Regulator, Air Regulator And Filter .All for controlling the output pressure.
FRL Meaning/FLR Meaning : F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
