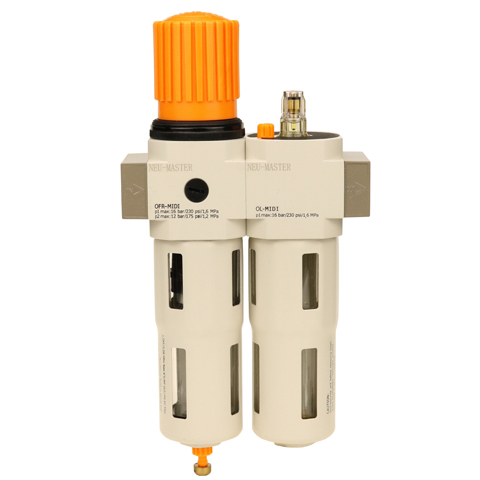

F2 Series FR.L Air Filter Regulator Lubricator
F2 Consisted of F1 and L, each can be ordered separately. F1:Filter+Regulator ; L : Air Lubricator/oiler
2-unit combination(FR+L) Three kinds of body size : F2-MINI/MIDI/MAXI
The F1 with water trap, cleans the compressed air condensation and dirt particles.
For special applicaton, the standard 40μm filter element may easily be replaced by a 5μm filter element.
Port Size :1/8"-1" , NPT thread are vailable
Reliable adjustment of oil supply,quick mounting pattern .
Easy to maintain and operate ,long service life .
F2 Series Filter Regulator Lubricator.pdf
F2 Series Filter Regulator Lubricator Symbol:
F2 Series Filter Regulator Lubricator Installation and usage:
The F2 consisted of Filter Regulator and Lubricator,each unit can be ordered separately.
The F with water separator cleans the compressed air of fluid oil,
condensation and dirt particles. For special applicaton, the standard 40μm filter element may easily be replaced by a 5μm filter element.
The R maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.
The proportional lubricator adds a regulated quantity of oil to the filtered air.
The oil-mist content propotrional to the flow and oil can be added during operation. The oil drip tate is contr olled by the adjustable knob. Normally, 1 to 12 drops/1000L of the air is suffecient.

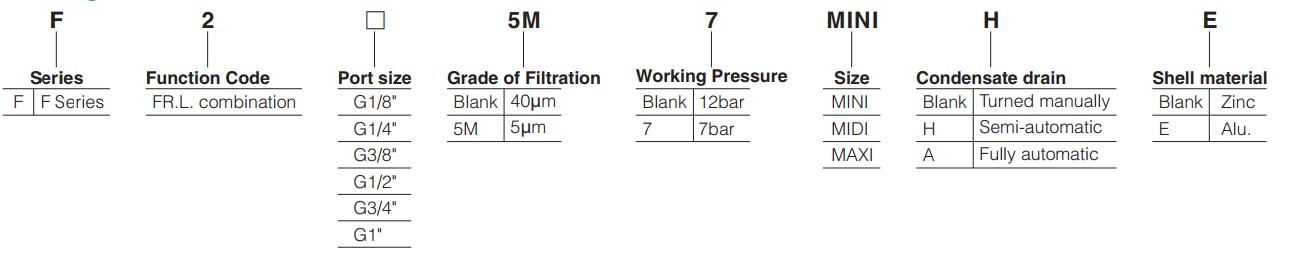

F2 Series Filter Regulator Lubricator Order Code:
F2 Series Filter Regulator Lubricator Specification
Size | Micro | Mini | Midi | Maxi | ||||||||||||
Pneumatic connection | M5 | M7 | G1/8 | QS4 | QS6 | G1/8 | G1/4 | G3/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1/2 | G3/4 | G1 | |
Operating medium | Compressed air | |||||||||||||||
Design | Filter regulator, with/without pressure gauge | |||||||||||||||
Proportional standard mist lubricator | ||||||||||||||||
Type of mounting | Via accessories | |||||||||||||||
In-line installation | ||||||||||||||||
Assembly position | Vertical ±5° | |||||||||||||||
Regulator lock | Rotary knob with lock | |||||||||||||||
- | Rotary knob with lock | |||||||||||||||
Grade of filtration (μm) | 5 | 5(or)40 | 0.4 | |||||||||||||
Max. hysteresis (bar) | 0.3 | 0.2 | ||||||||||||||
Pressure regulation range (bar) | 0.5…7 | 0.5…7 | ||||||||||||||
0.5…12 | ||||||||||||||||
Pressure indication | Via pressure gauge | |||||||||||||||
M5 Prepared | G1/8 Prepared | G1/ 4 Prepared | G1/ 4 Prepared | |||||||||||||
Max. condensate volume (cm3) | 3 | 22 | 43 | 80 | ||||||||||||
Input pressure (bar) | ||||||||||||||||
Condensate drain | Turnde manually | 1…10 | 2…16 | |||||||||||||
Semi-automatic | 1…10 | - | ||||||||||||||
Fully automatic | - | 2…12 | ||||||||||||||
Where the festo standard air filter regulator lubricator were used ? (Appliliance)
Normally it were installed on the machine to control the input pressure air .
Or as the airline pressure controller . With the pressure regulator , we could get the stable air output pressure .
The difference with other air filter regulator lubricator combo .
The working pressure could reach 1.2Map . Which could satisfy most of the customer's request .
Compared with F3 Sereis filter regulator lubricator combo, F2 has the same function , but with the lower cost .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the F2 Series Filter Regulator Lubricator sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:Festo standard FR.L, air filter regulator lubricator are all for controlling the air line pressrue .
What Does FRL Meaning : F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
