AFC/BFC Series FRL Unit Air Filter.Regulator Lubricator
FR+L air filter regulator lubricator AFC/BFC equivalent as AIRTAC
Different Auto drain valve for choosing.
With manometer or without manometer choice.
Port size : 1/8";1/4";3/8";1/2";
PT,G,NPT Thread are available .
Short delivery time ,reasonable cost,durable feature .
AFC,BFC Series FRL Unit Air Filter Regulator Lubricator.pdf

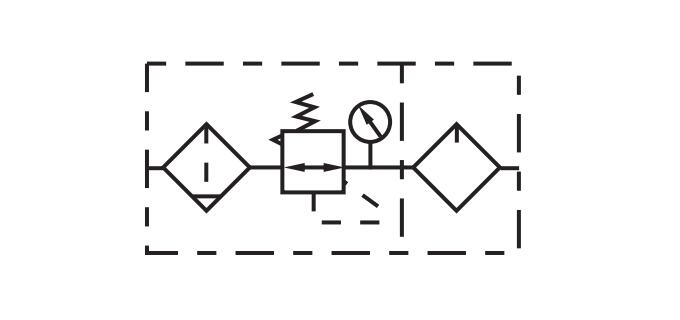

AFC/BFC Series FRL Unit Symbol:

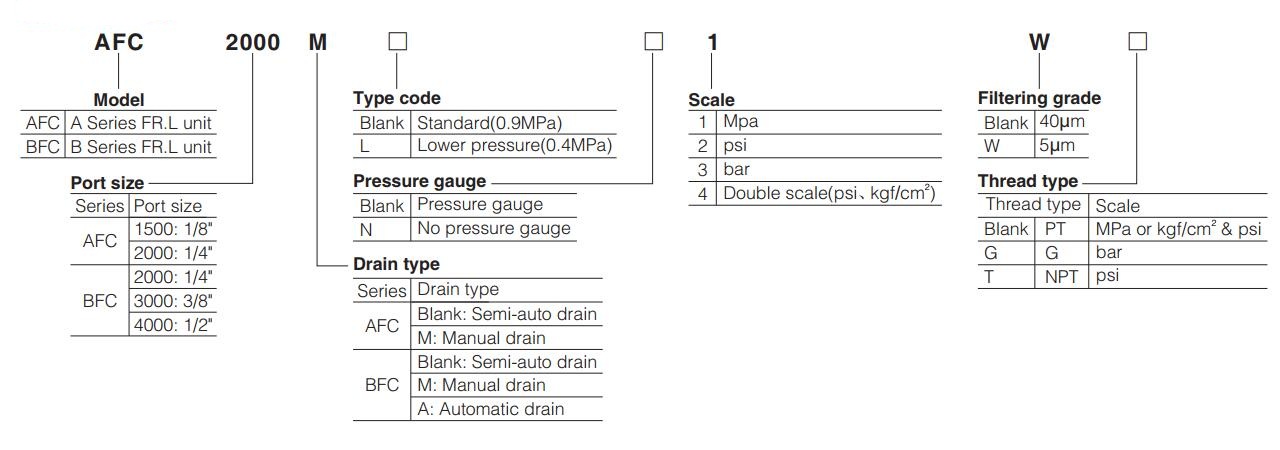

AFC/BFC Series FRL Unit Code :
AFC/BFC Series FRL Unit feature
1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. The pressure loss is low and the efficiency of water separating is high.
4. The quantity of oil dripping can be directly observed through rtandsparent check dome.
5. In addition to standard type, lower pressure type is optional(The highest adjustable pressure is 0.4MPa).
AFC/BFC Series FRL Unit Specification
Model FRL Unit | AFC1500 | AFC2000 | BFC2000 | BFC3000 | BFC4000 | |
Fluid | Air | |||||
Port size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | |
Filtering grade | 40μm or 5μm | |||||
Pressure range | Semi-auto and automatic drain:0.15~0.9MPa(20~130psi); Manual drain: 0.05~0.9MPa(7~130psi) | |||||
Max. pressure | 1.0MPa(145psi) | |||||
Proof pressure | 1.5MPa(215psi) | |||||
Temperature range | -5~70℃ | |||||
Capacity of drain bowl | 10CC | 60CC | ||||
Capacity of oil bowl | 25CC | 90CC | ||||
Recommended lubricant | ISO VG 32 or equivalent | |||||
Weight | 500g | 700g | ||||
Constitute | Filter-Regulator | AFR 1500 | AFR 2000 | BFR 2000 | BFR 3000 | BFR4000 |
Lubricator | AL1500 | AL2000 | BL 2000 | BL 3000 | BL 4000 | |
① PT thread, G thread and NPT thread are available.
Where the Airtac standard air filter regulator lubricator were used ? (Appliliance)
Normally it were installed on the machine to control the input pressure air .
Or as the airline pressure controller . With the pressure regulator , we could get the stable air output pressure .
The difference with other air filter regulator lubricator combo .
Compared with AIRTAC GFC Series air filter regulator Combo and FESTO F2 Series, it's with much lower cost .
But with the same function .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the AFC/BFC Series FRL Unit for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: AIRTAC standard air filter regulator lubricator, FRL, FLR, Airline Regulations, filter regulator lubricator are all for
adjust the output pressure, eliminat moisture and solid grain , inject lubricant oil in to the air line .
What Does FRL Unit Meaning : F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
