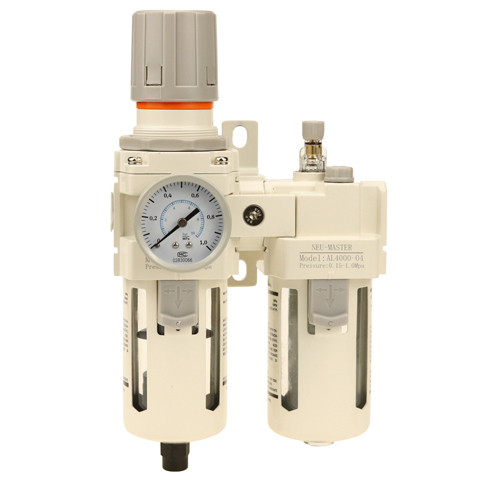

AC Series FRL Unit Filter Regulator Lubricator Combination
FRL Unit air filter regulator lubricator combination equivalent as SMC
Different Auto drain valve for filter.
With pressure gauge or without pressure gauge for regulator
Port size : M5*0.8;1/8";1/4";3/8";1/2";1"
PT,G,NPT Thread are available .
Short delivery time ,reasonable cost,durable feature .
AC Series FRL Unit Air Filter Regulator Lubricator FR.L.pdf

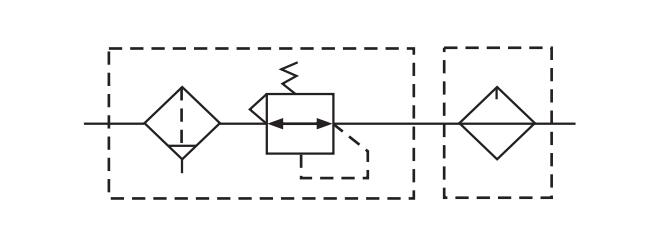

AC FRL Unit Symbol:

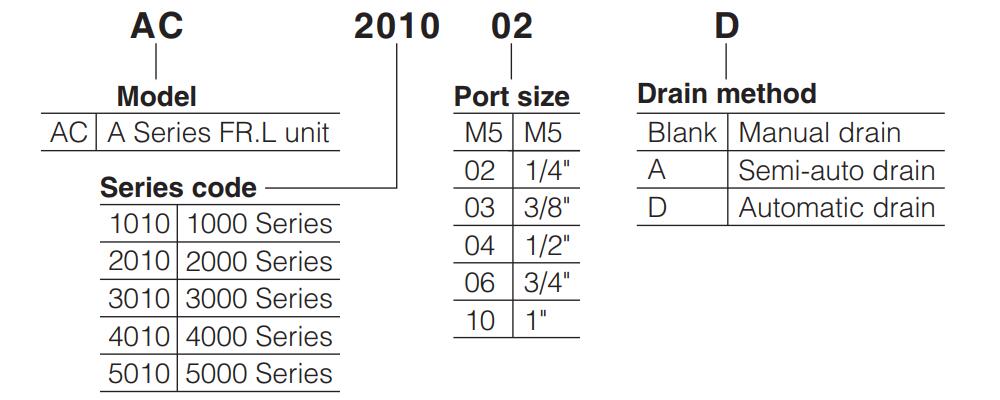

AC FRL Unit Code :
AC FRL Unit Specification
Model | Manual drain | AC1010-M5 | AC2010-02 | AC3010-02 | AC3010-03 | AC4010-03 | AC4010-04 | AC4010-06 | AC5010-06 | AC5010-10 | |
Automatic drain | AC1010-M5D | AC2010-02D | AC3010-02D | AC3010-03D | AC4010-03D | AC4010-04D | AC4010-06D | AC5010-06D | AC5010-10D | ||
Port size | M5×8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 | ||
Pressure gauge size | 1/16 | 1/8 | 1/8 | 1/8 | 1/8 | 1/4 | 1/4 | 1/4 | 1/4 | ||
Rated flow(L\min) | 90 | 500 | 1700 | 1700 | 3000 | 3000 | 3000 | 4000 | 4000 | ||
Proof pressure | 1.5MPa{15.3kgf/cm2} | ||||||||||
Max. pressure | 1.0MPa{10.2kgf/cm2} | ||||||||||
Temperature range | 5~60℃ | ||||||||||
Filtering grade | 5μm | ||||||||||
Recommended oil | Turbine No. 1 oil ISO VG32 | ||||||||||
Cup material | Polycarbonate | ||||||||||
Cup protective cover | AC1010~2010(Without) AC3010~5010(With) | ||||||||||
Pressure range | AC1010: 0.05-0.7MPa(0.51~7.1kgf/cm2); AC2010~5010: 0.05~0.85MPa(0.51~8.7kgf/cm2) | ||||||||||
Valve type | With overflow | ||||||||||
Assembly | Filter regulator | AW1000 | AW2000 | AF3000 | AF3000 | AF4000 | AF4000 | AF4000 | AF5000 | AF5000 | |
Lubricator | AL1000 | AL2000 | AL3000 | AL3000 | AL4000 | AL4000 | AL4000 | AL5000 | AL5000 | ||
Weight(kg) | 0.22 | 0.66 | 0.98 | 0.98 | 1.93 | 1.93 | 1.99 | 3.2 | 3.2 | ||
Note: 1. there are 2, 10, 20, 40, 70, 100μm to choose from.
2. Standard automatic drainage for normally open(N.O.), AC3010~5010 also has normally closed(N.C.)to choose from, and the lowest use pressure: normally open -0.1MPa(1kgf/cm2), normally closed -0.15MPa(1.5kgf/cm2).
3. Supply pressure is 0.7MPa(7.1kgf/cm2)case.
Where the SMC standard AC FRL Unit were used ? (Appliliance)
Normally it were installed on the machine to control the input pressure air .
Or as the airline pressure controller . With the pressure regulator , we could get the stable air output pressure .
The difference with other air filter regulator lubricator combo .
Compared with F3 Series air filter regulator Combo , it's with lower cost .But the max working pressure is 1.0Mpa
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the AC FRL Unit sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air filter regulator lubricator, SMC Filters, Filter Regulator Lubricator, Airline Regulation, Filter Regulator And Lubricator are all for
adjust the output pressure, eliminat moisture and solid grain , inject lubricant oil in to the air line .
What does FRL Unit mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
