The Specification Of Cylinder Switch
And Precautions Before Using Cylinder Switches

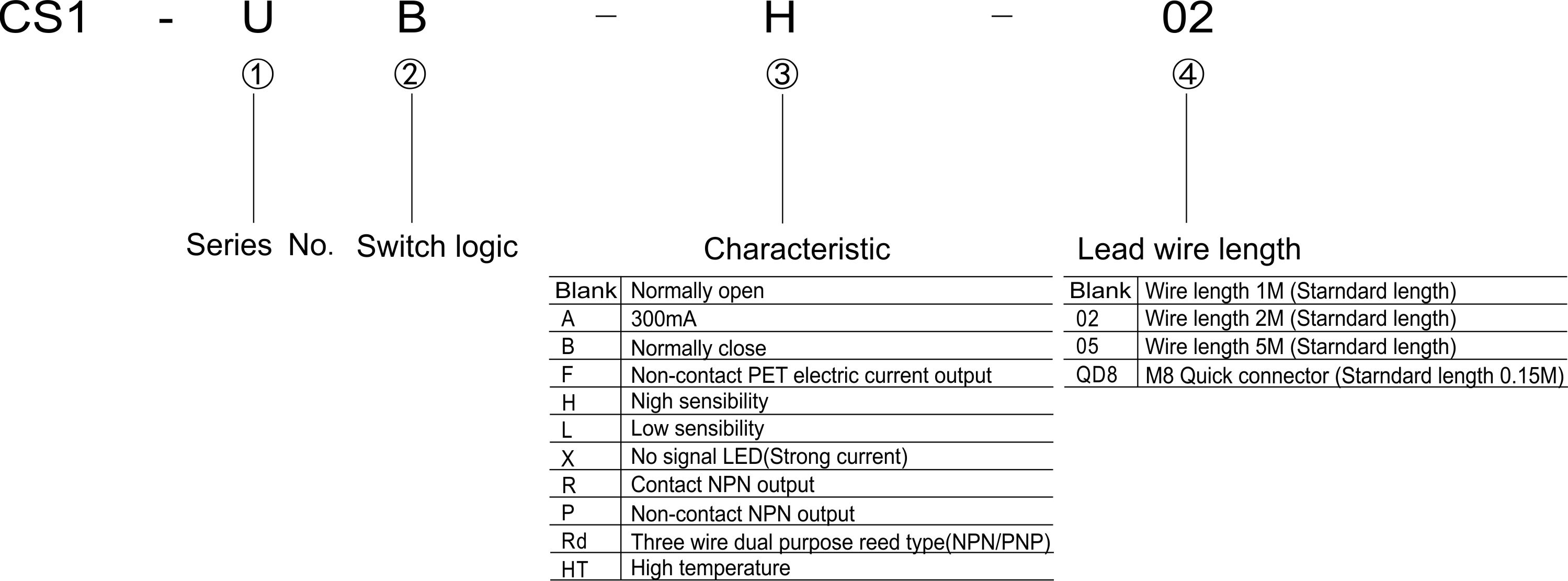

Ordering code
Refer to the cylinder switch precautions, when using magnetic induction switch, it should not exceed the specifications limit.

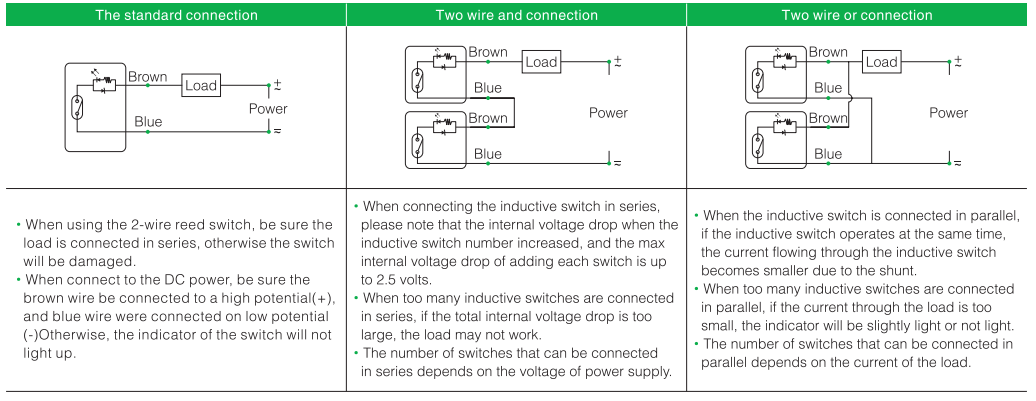

In the usage of two-wire magnet switch, it must be connected with the load. otherwise it will cause the damage to the switch.
When using DC power supply, the brown wire should be connected to the positive potential(+), and the blue wire should be connected to the neaative.potential(-). Otherwise, the indicator light of the switch will not light, but the sensor switch can work normally. And the switch will not be damaged, as long as the two lines are reversed, the indicator light will work normally.

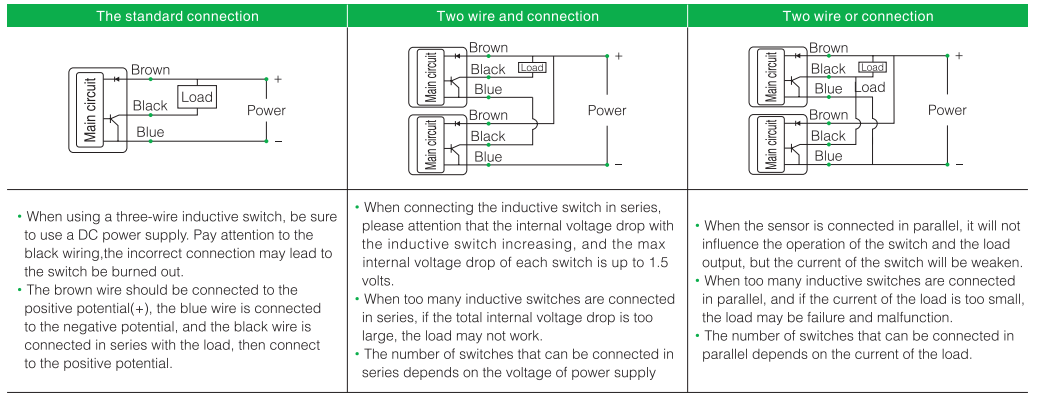

When using a three-wire non-contact switch, be sure to use a DC power supply and pay attention to the wire connecting.
The brown wire should be connected to a high potential(+), the blue wire is connected to a low potential(-), and the black wire is connected to the load
The black wire must be connected to the load before the switch was used. If the black wire is connected to the power supply, it will cause damage to the switch.

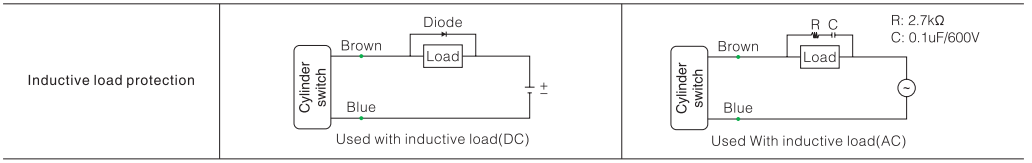

When it's an inductive load (such as a Relay or a Solenoid Valve), Please add a protection component to the load to extend the life of the switch.
If a DC inductive load is connected, please add a diode to the load (as shown below), and the reverse breakdown voltage of the diode is greater than the power voltage.
If you connect an AC inductive load, please connect an R-C circuit to the load.

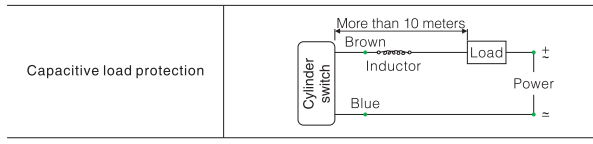

When the load is a capacitive load, or when the length of the wire more than 10 meters, try to connect an inductor (470uH-4000uH) close to the switch..in order to extending the service life of the inductive switch.
When using the magnetic sensor switch, please try to avoid the strong magnetic field or the environment surrounding magnetic conductive metal to avoid interference.

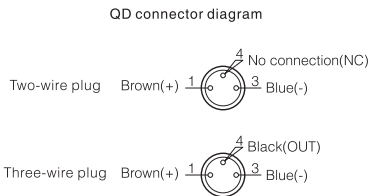

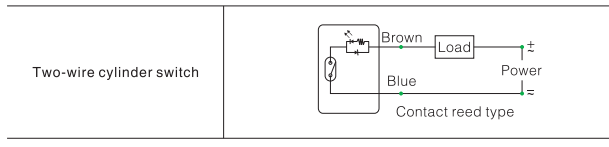

Two wire reed switch connection

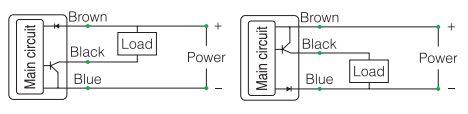

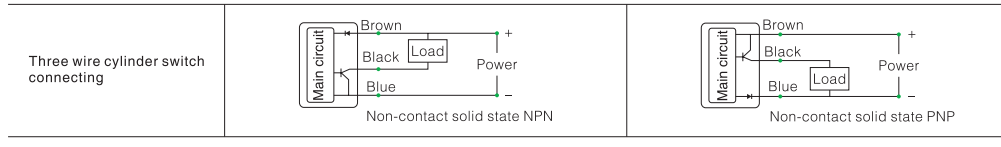

Three wire non contact NPN switch connection
Three wire non contact PNP switch connection

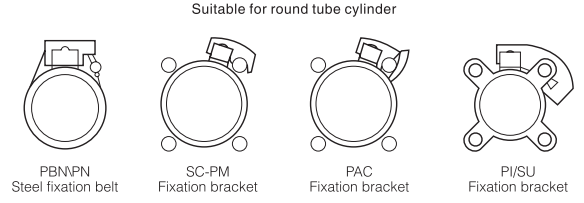

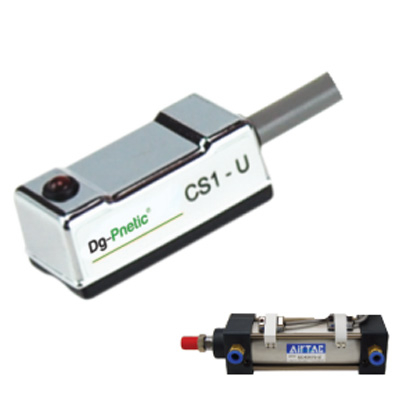

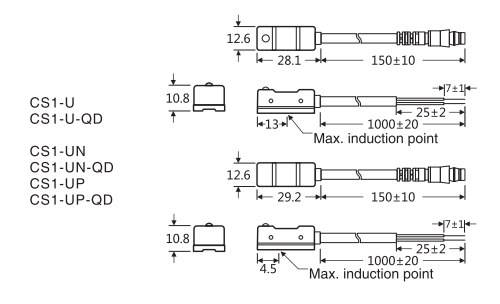

CS1-U Series Cylinder Switch
Characteristic | type | |||
CS1-U | CS1-UB | CS1-UN | CS1-UP | |
Switch logic | SPST NO | SPST NC | Electrical Non-contact; NO | |
Sensor type | Contact-reed style | Non-contact solid NPN type | Non-contact solid PNP type | |
Opreating voltage | 5-240V DCIAC | 5-120V DC/AC | 5~30VDC | |
Switching current | 100mA max | 200mA max | ||
Contact rating | 10W max | 6W max | ||
Internal current consumption | NO | 20mA max@24V (Switch active) | ||
Voltage drop | 2.5V max@100mA | 0.5V max@200mA | ||
Leakage current | NO | 0.01mA max | ||
Indicator | Red LED | Green LED | Red LED | Green LED |
Cable | 3.80, 2C, Brown-oil resistance (PVC) | 3.8Ф, 3C, Black-oil resistance (PVC) | ||
Sensitivity (Note 1) | 60Gauss | |||
Max.switch frequency | 200Hz | 1000Hz | ||
Temperature range | -10~70℃ | |||
Shock (Note 2) | 30G | 50G | ||
Vibration (Note 3) | 9G | |||
Protection classfication | IEC 529 IP67(NEMA6) | |||
Protection circuit | Without | With protection circuit | ||
Circuit diagram |
|
| ||
|
| |||
Note:
Standard magnet for measurement:Ф15.5xФ8x5T (orthorhombic rubber magnet).
Sine wave/X. Y. Z 3 axial/3 loops (each direction) /11ms.
3. The complex amplitude is 1.5mm/10Hz~55Hz~10Hz (reciprocating for 1 minute) /X, Y, Z 3 axial/hour (each cycle).
