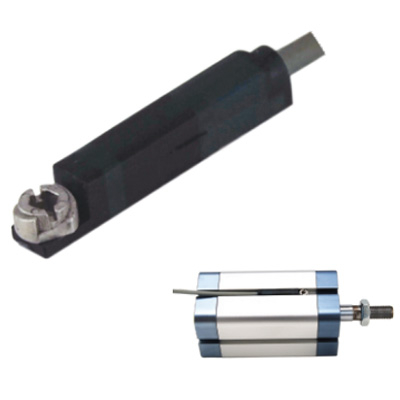

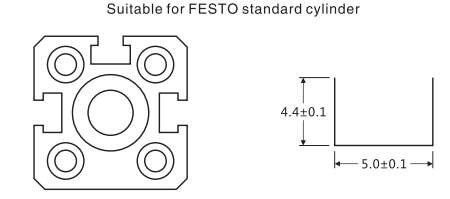

CS1-D Series Cylinder Switch(DNC Type)
Characteristic | type | ||
CS1-S1 | CS1-S1N | CS1-S1P | |
Switch logic | SPST NO | Electrical Non-contact; NO | |
Sensor type | Contact-reed style | Non-contact solid state NPN | Non-contact solid state PNP |
Opreating voltage | 5-240V DC/AC | 5~30V DC | |
Switching current | 100mA max | 200mA max | |
Contact rating | 10W max | 6W max | |
Internal current consumption | Non | 20mA max@24V (Switch active) | |
Voltage drop | 2.5V max@100mA | 0.5V max@200mA | |
Leakage current | Non | 0.01mA max | |
Indicator | Red LED | Red LED | Green LED |
Cable | 3.2Ф, 2C, Brown-oil resistance (PVC) | 3.2Ф, 3C, Black-oil resistance (PVC) | |
Sensitivity (Note 1) | 40Gauss | ||
Max.switch frequency | 200Hz | 1000Hz | |
Temperature range | -10~70℃ | ||
Shock (Note 2) | 30G | 50G | |
Vibration (Note 3) | 9G | ||
Protection classfication | IEC 529 IP67(NEMA6) | ||
Protection circuit | Without | With protection circuit | |

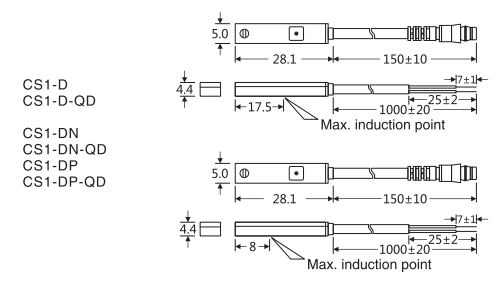

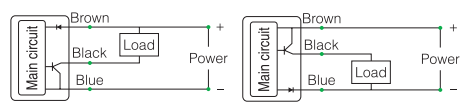

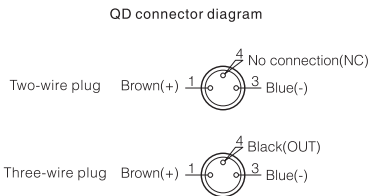

Circuit diagram | |||
Note:
Standard magnet for measurement:Ф15.5xФ8x5T (orthorhombic rubber magnet).
Sine wave/X. Y. Z 3 axial/3 loops (each direction) /11ms.
3. The complex amplitude is 1.5mm/10Hz~55Hz~10Hz (reciprocating for 1 minute) /X, Y, Z 3 axial/hour (each cycle).
