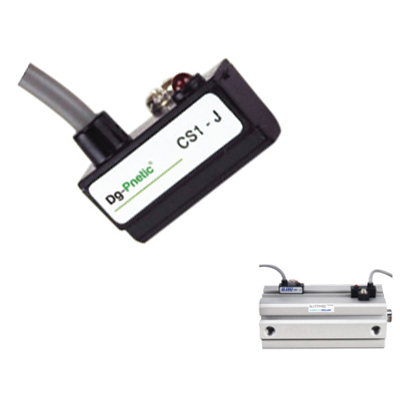

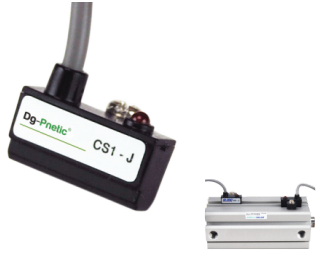

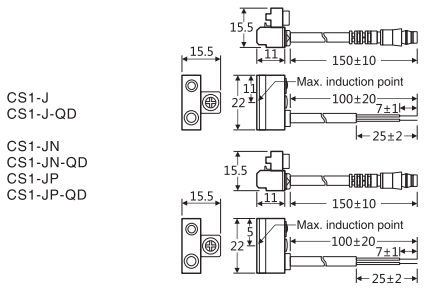

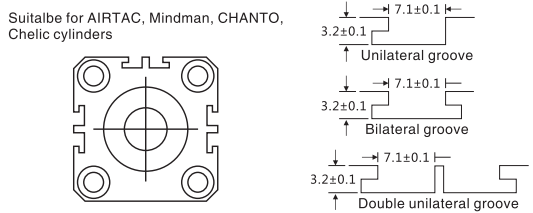

CS1-J Series Cylinder Switch(SDA Type)
Characteristic
| type | |||
CS1-J | CS1-JB | CS1-JN | CS1-JP | |
Switch logic | SPST NO | SPST NC | Electrical Non-contact; NO | |
Sensor type | Contact-reed style | Non-contact solid NPN | Non-contact solid PNP | |
Opreating voltage | 5-240V DC/AC | 5-120V DC/AC | 5~30V DC | |
Switching current | 100mA max | 200mA max | ||
Contact rating | 10W max | 6W max | ||
Internal current consumption | Non | 20mA max@24V (Switch active) | ||
Voltage drop | 2.5V max@100mA | 0.5V max@200mA | ||
Leakage current | Non | 0.01mA max | ||
Indicator | Red LED | Red LED | Green LED | |
Cable | 3.2Ф, 2C, Brown-oil resistance (PVC) | 3.2Ф, 3C, Black-oil resistance (PVC) | ||
Sensitivity (Note 1) | 40Gauss | |||
Max.switch frequency | 200Hz | 1000Hz | ||
Temperature range | -10~70℃ | |||
Shock (Note 2) | 30G | 50G | ||
Vibration (Note 3) | 9G | |||
Protection classfication | IEC 529 IP67(NEMA6) | |||
Protection circuit | Without | With protection circuit | ||

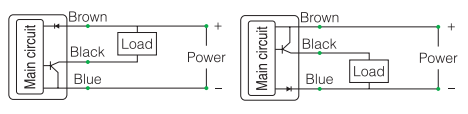

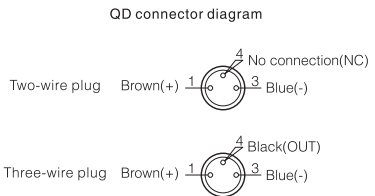

Circuit diagram | ||||
Note:
Standard magnet for measurement:Ф15.5xФ8x5T (orthorhombic rubber magnet).
Sine wave/X. Y. Z 3 axial/3 loops (each direction) /11ms.
3. The complex amplitude is 1.5mm/10Hz~55Hz~10Hz (reciprocating for 1 minute) /X, Y, Z 3 axial/hour (each cycle).
