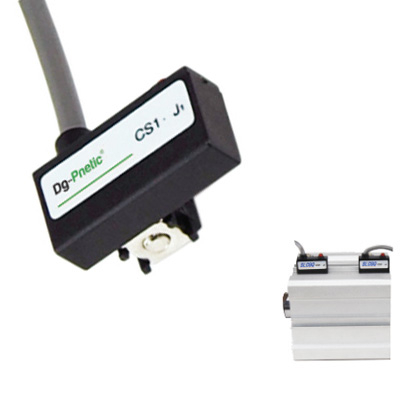

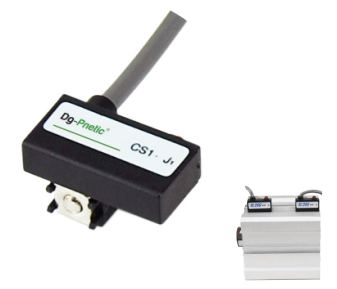

CS1-J1 Series Cylinder Switch(SMC Type)
Home » Products » SENSORS AND SWITCH » Cylinder Magnet Switch » CS1-J1 Series Cylinder Switch(SMC Type)

PRODUCT DETAIL

CS1-J1 Series Cylinder Switch(SMC Type) CS1-J1 Series Cylinder Switch(SMC Type)

loading

CS1-J1 Series Cylinder Switch(SMC Type)

Share to:
sharethis sharing button
Refer to the cylinder switch precautions, when using magnetic induction switch, it should not exceed the specifications limit.
In the usage of two-wire magnet switch, it must be connected with the load, otherwise it will cause the damage to the switch.
When using DC power supply, the brown wire should be connected to the positive potential(+), and the blue wire should be connected to the negative potential-). Otherwise, the indicator light of the switch will not light, but the sensor switch can work normally. And the switch will not be damaged, as long as the two lines are reversed, the indicator light will work normally
Availability:

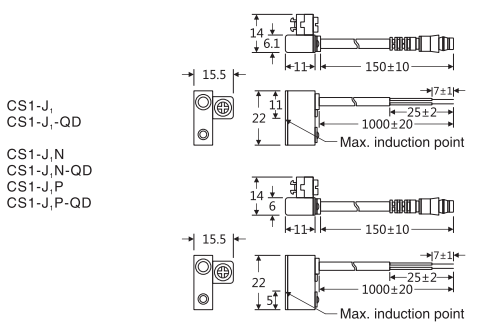

CS1-J1 Series Cylinder Switch(SMC Type)


Characteristic

Type

CS1-J1(SMC)


CS1-J1N

CS1-J1P

Switch logic

SPST NO

Electrical Non-contact; NO

Sensor type

Contact-reed style

Non-contact solid state NPN

Non-contact solid state PNP

Opreating voltage

5-240V DC/AC

5~30V DC

Switching current

100mA max

200mA max

Contact rating

10W max

6W max

Internal current consumption

Non

20mA max@24V (Switch active)

Voltage drop

2.5V max@100mA

0.5V max@200mA

Leakage current

Non

0.01mA max

Indicator

Red LED

Red LED

Green LED

Cable

3.2Ф, 2C, Brown-oil resistance (PVC)

3.2Ф, 3C, Black-oil resistance (PVC)

Sensitivity (Note 1)

40Gauss

Max.switch frequency

200Hz

1000Hz

Temperature range

-10~70℃

Shock (Note 2)

30G

50G

Vibration (Note 3)

9G

Protection classfication

IEC 529 IP67(NEMA6)

Protection circuit

Without

With protection circuit

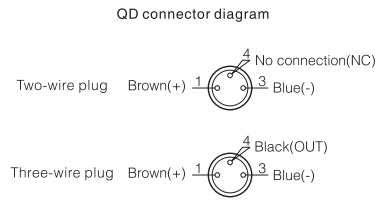

Circuit diagram


Note:

Standard magnet for measurement:Ф15.5xФ8x5T (orthorhombic rubber magnet).

Sine wave/X. Y. Z 3 axial/3 loops (each direction) /11ms.

3. The complex amplitude is 1.5mm/10Hz~55Hz~10Hz (reciprocating for 1 minute) /X, Y, Z 3 axial/hour (each cycle).
