Schematic diagram of structure：
Specifications：
Using fluids | Air, water(conditional) |
Working pressure range | 0~1.2MPa |
Use vacuum pressure | -100Kpa(10Torr) |
Working temperature range | -10°~60℃ |
Ordering code:
PM MINI type Series
Model | ФD | M | L1 | L2 | L3 | L4 | H |
PM3C | 3 | M8X0.75 | 20.5 | 6 | 9.5 | 2.5 | 10 |
PM4C | 4 | M10X1.0 | 23 | 8 | 11 | 3 | 12 |
PM6C | 6 | M12X1.0 | 24 | 9 | 11.5 | 3.5 | 14 |
PY MINI type Series
Model | ФD | L1 | L2 | L3 | L4 | ФP | Фd |
PY3C | 3 | 27 | 7 | 9 | 12 | 7 | 3.2 |
PY4C | 4 | 30 | 9 | 11 | 14 | 9.5 | 3.2 |
PY6C | 6 | 33 | 11 | 11.5 | 15 | 11 | 3.2 |

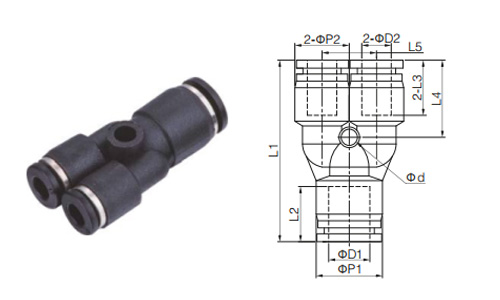

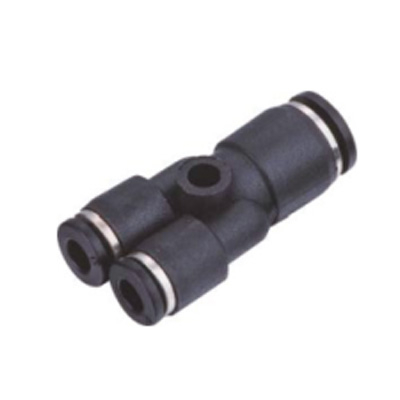

PW MINI type Series
Model | ФD1 | ФD2 | L1 | L2 | L3 | L4 | L5 | ФP1 | ФP2 | Фd |
PW4-3C | 4 | 3 | 27.5 | 12 | 7 | 11 | 9.5 | 9 | 7 | 3.2 |
PW6-3C | 6 | 3 | 30 | 13.5 | 9 | 11.5 | 9.5 | 11 | 9 | 3.2 |
PW6-4C | 6 | 4 | 30.5 | 14 | 9 | 11.5 | 11 | 11 | 9 | 3.2 |
PX MINI type Series
Model | ФD | R | L1 | L2 | L3 | L4 | L5 | L6 | ФP | H |
PX3-M3C |
3 | M3X0.5 | 3 | 31.5 | 28.5 | 12 | 7 | 9.5 | 7 | 8 |
PX3-M5C | M5X0.8 | 3.5 | 32 | 28.5 | 12 | 7 | 9.5 | 7 | 8 | |
PX3-M6C | M6X1.0 | 4 | 32.5 | 28.5 | 12 | 7 | 9.5 | 7 | 8 | |
PX4-M3C |
4 | M3X0.5 | 3 | 34 | 31 | 14 | 9 | 11 | 9 | 8 |
PX4-M5C | M5X0.8 | 3.5 | 34.5 | 31 | 14 | 9 | 11 | 9 | 8 | |
PX4-M6C | M6X1.0 | 4 | 35 | 31 | 14 | 9 | 11 | 9 | 8 | |
PX4-01C | R1/8 | 7.5 | 37.5 | 33.5 | 14 | 9 | 11 | 9 | 10 | |
PX6-M5C |
6 | M5X0.8 | 3.5 | 37 | 33.5 | 15 | 11 | 11.5 | 11 | 8 |
PX6-M6C | M6X1.0 | 4 | 37.5 | 33.5 | 15 | 11 | 11.5 | 11 | 8 | |
PX6-01C | R1/8 | 7.5 | 40 | 36 | 15 | 11 | 11.5 | 11 | 10 |

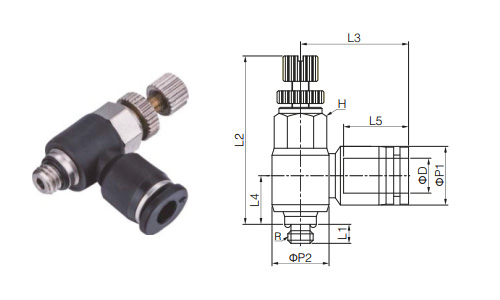

SC MINI type Series
Model | ФD | R | L1 | L2 | L3 | L4 | L5 | ФP1 | ФP2 | H | |
max | min | ||||||||||
SC4-M3C | 4 | M3X0.5 | 3 | 28 | 25.5 | 18 | 7 | 11 | 9 | 9.5 | 8 |
SC4-M5C | 4 | M5X0.8 | 3.5 | 28 | 25.5 | 18 | 7 | 11 | 9 | 9.5 | 8 |
SC4-M6C | 4 | M6X1.0 | 4 | 28.5 | 26 | 18 | 7 | 11 | 9 | 9.5 | 8 |

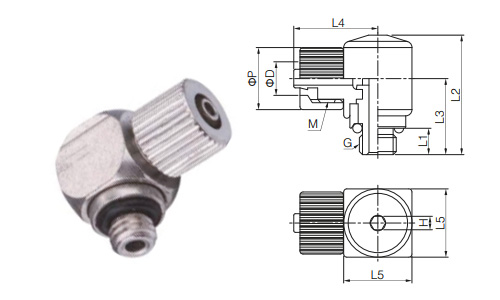

TL MINI type Series
Model | ФD | G | L1 | L2 | L3 | L4 | L5 | ФP | M | H |
TL4-M5 |
4 | M5X0.8 | 3.5 | 14.5 | 6 | 12.5 | 9 | 8 | M6X0.75 | 2 |
TL4-M6 | M6X1.0 | 4 | 17 | 6.5 | 13.5 | 11 | 8 | M6X0.75 | 3 | |
TL4-G01 | G1/8 | 5.5 | 21 | 8 | 15 | 14 | 8 | M6X0.75 | 5 | |
TL6-M5 |
6 | M5X0.8 | 3.5 | 14.5 | 6 | 14 | 9 | 10 | M8X0.75 | 2 |
TL6-M6 | M6X1.0 | 4 | 17 | 6.5 | 15 | 11 | 10 | M8X0.75 | 3 | |
TL6-G01 | G1/8 | 5.5 | 21 | 8 | 16.5 | 14 | 10 | M8X0.75 | 5 |
TC MINI Series
Model | ФD | G | L1 | L2 | ФP | M | H |
TC4-M5 |
4 | M5X0.8 | 3.5 | 15 | 8 | M6X0.75 | 8 |
TC4-M6 | M6X1.0 | 4 | 15.5 | 8 | M6X0.75 | 8 | |
TC4-G01 | G1/8 | 5.5 | 19 | 8 | M6X0.75 | 10 | |
TC6-M5 |
6 | M5X0.8 | 3.5 | 16.5 | 10 | M8X0.75 | 10 |
TC6-M6 | M6X1.0 | 4 | 17 | 10 | M8X0.75 | 10 | |
TC6-G01 | G1/8 | 5.5 | 21 | 10 | M8X0.75 | 10 |
