Availability: | |
---|---|
Schematic diagram of structure:
Specifications:
Using fluids | Air, water(conditional) |
Working pressure range | 0~1.2MPa |
Use vacuum pressure | -100Kpa(10Torr) |
Working temperature range | -10°~60℃ |
Ordering code:
PC MINI type Series
Model | ФD | R | L1 | L2 | L3 | L4 | H |
PC3-M3C |
3 | M3X0.5 | 3 | 15.5 | 12.5 | 9.5 | 8 |
PC3-M5C | M5X0.8 | 3.5 | 16 | 12.5 | 9.5 | 8 | |
PC3-M6C | M6X1.0 | 4 | 16.5 | 12.5 | 9.5 | 8 | |
PC4-M3C |
4 | M3X0.5 | 3 | 16 | 13 | 11 | 8 |
PC4-M5C | M5X0.8 | 3.5 | 17 | 13.5 | 11 | 8 | |
PC4-M6C | M6X1.0 | 4 | 17.5 | 13.5 | 11 | 8 | |
PC4-01C | R1/8 | 7.5 | 18 | 14 | 11 | 10 | |
PC6-M5C |
6 | M5X0.8 | 3.5 | 17.5 | 14 | 11.5 | 10 |
PC6-M6C | M6X1.0 | 4 | 18 | 14 | 11.5 | 10 | |
PC6-01C | R1/8 | 7.5 | 18 | 14 | 11.5 | 10 |

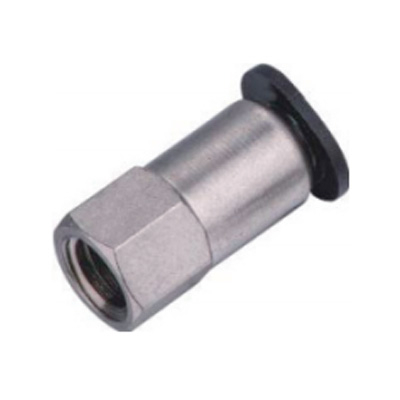

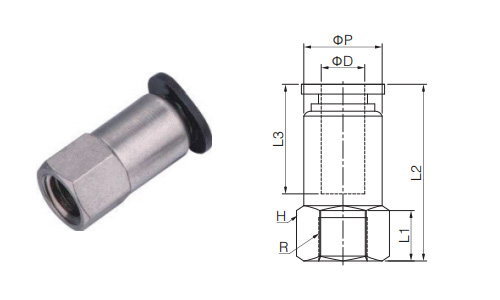

PCF MINI type Series
Model | ФD | R | L1 | L2 | L3 | ФP | H |
PCF3-M3C |
3 | M3X0.5 | 4 | 16 | 9.5 | 8 | 8 |
PCF3-M5C | M5X0.8 | 5 | 17.5 | 9.5 | 8 | 8 | |
PCF3-M6C | M6X1.0 | 5 | 17.5 | 9.5 | 8 | 8 | |
PCF4-M3C |
4 | M3X0.5 | 4 | 17.5 | 11 | 8 | 88 |
PCF4-M5C | M5X0.8 | 5 | 19 | 11 | 8 | 8 | |
PCF4-M6C | M6X1.0 | 5 | 19 | 11 | 8 | 8 | |
PCF4-01C | R1/8 | 7.5 | 22 | 11 | 8 | 12 | |
PCF6-M5C |
6 | M5X0.8 | 5 | 19 | 11.5 | 10 | 10 |
PCF6-M6C | M6X1.0 | 5 | 19 | 11.5 | 10 | 10 | |
PCF6-01C | R1/8 | 7.5 | 22 | 11.5 | 10 | 12 |

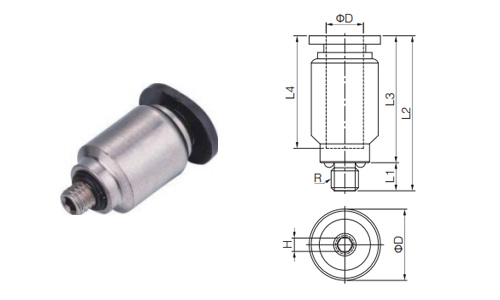

POC MINI type Series
Model | ФD | R | L1 | L2 | L3 | L4 | ФP | H |
POC3-M3C |
3 | M3X0.5 | 3 | 15.5 | 12.5 | 9.5 | 8 | 1.5 |
POC3-M5C | M5X0.8 | 3.5 | 16 | 12.5 | 9.5 | 8 | 2 | |
POC3-M6C | M6X1.0 | 4 | 16.5 | 12.5 | 9.5 | 8 | 2 | |
POC4-M3C | 4 | M3X0.5 | 3 | 16 | 13 | 11 | 8 | 1.5 |
POC4-M5C | M5 X0.8 | 3.5 | 17 | 13.5 | 11 | 8 | 2 | |
POC4-M6C | M6X1.0 | 4 | 17.5 | 13.5 | 11 | 8 | 2.5 | |
POC4-01C | R1/8 | 7.5 | 18 | 14 | 11 | 10 | 3 | |
POC6-M5C | 6 | M5X0.8 | 3.5 | 17.5 | 14 | 11.5 | 10 | 2 |
POC6-M6C | M6X1.0 | 4 | 18 | 14 | 11.5 | 10 | 2.5 | |
POC6-01C | R1/8 | 7.5 | 18 | 14 | 11.5 | 10 | 4 |
PL MINI type Series
Model | ФD | R | L1 | L2 | L3 | L4 | L5 | ФP | H |
PLC3-M3C |
3 | M3X0.5 | 3 | 12 | 15.5 | 16 | 9.5 | 7 | 8 |
PLC3-M5C | M5X0.8 | 3.5 | 12 | 16 | 16 | 9.5 | 7 | 8 | |
PLC3-M6C | M6X1.0 | 4 | 12 | 16.5 | 16 | 9.5 | 7 | 8 | |
PLC4-M3C |
4 | M3X0.5 | 3 | 14.5 | 15.5 | 17 | 11 | 9 | 8 |
PLC4-M5C | M5 X0.8 | 3.5 | 14.5 | 16 | 17 | 11 | 9 | 8 | |
PLC4-M6C | M6X1.0 | 4 | 14.5 | 16.5 | 17 | 11 | 9 | 8 | |
PLC4-01C | R1/8 | 7.5 | 14.5 | 19.5 | 20 | 11 | 9 | 10 | |
PLC6-M5C |
6 | M5X0.8 | 3.5 | 16.5 | 16 | 18 | 11.5 | 11 | 8 |
PLC6-M6C | M6X1.0 | 4 | 16.5 | 16.5 | 18 | 11.5 | 11 | 8 | |
PLC6-01C | R1/8 | 7.5 | 16.5 | 19.5 | 21 | 11.5 | 11 | 10 |

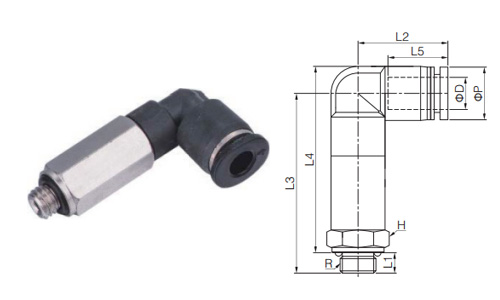

PLL MINI type Series
Model | ФD | R | L1 | L2 | L3 | L4 | L5 | ФP | H |
PLL3-M3C |
3 | M3X0.5 | 3 | 12 | 23.5 | 24 | 9.5 | 7 | 8 |
PLL3-M5C | M5X0.8 | 3.5 | 12 | 24 | 24 | 9.5 | 7 | 8 | |
PLL3-M6C | M6X1.0 | 4 | 12 | 24.5 | 24 | 9.5 | 7 | 8 | |
PLL4-M3C |
4 | M3X0.5 | 3 | 14.5 | 26 | 27.5 | 11 | 9 | 8 |
PLL4-M5C | M5 X0.8 | 3.5 | 14.5 | 26.5 | 27.5 | 11 | 9 | 8 | |
PLL4-M6C | M6X1.0 | 4 | 14.5 | 27 | 27.5 | 11 | 9 | 8 | |
PLL4-01C | R1/8 | 7.5 | 14.5 | 30 | 30.5 | 11 | 9 | 10 | |
PLL6-M5C |
6 | M5X0.8 | 3.5 | 16.5 | 28 | 30 | 11.5 | 11 | 8 |
PLL6-M6C | M6X1.0 | 4 | 16.5 | 28.5 | 30 | 11.5 | 11 | 8 | |
PLL6-01C | R1/8 | 7.5 | 16.5 | 31.5 | 33 | 11.5 | 11 | 10 |
