1.Ultra small quick plug-in pneumatic pipe joint.
2.The volume is 40% of the standard pipe joint, and the miniaturization is realized successfully.
3.There are two kinds of release rings for pipe disassembly,which are oval and circular. Although they are super small,they are still easy to disassemble.
4.Nickel plated copper body can prevent corrosion and pollution.
Availability:
Inquire Add to Basket

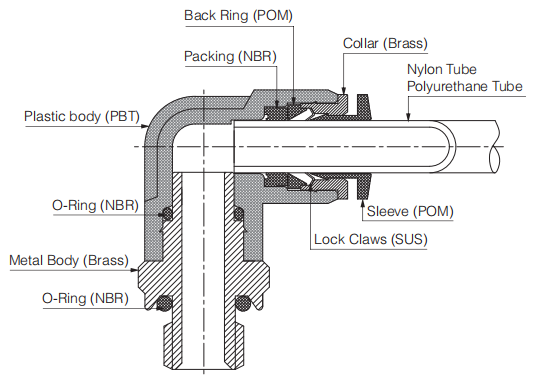

Schematic diagram of structure：

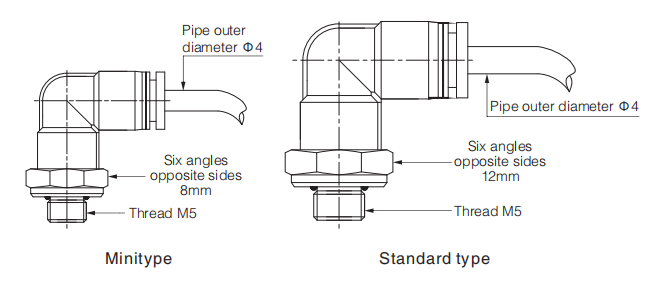

PC、PL Series Compact Quick Connecting Tube FittingsPC、PL Series Compact Quick Connecting Tube Fittings1


Specifications：

Using fluids

Air, water(conditional)

Working pressure range

0~1.2MPa

Use vacuum pressure

-100Kpa(10Torr)

Working temperature range

-10°~60℃

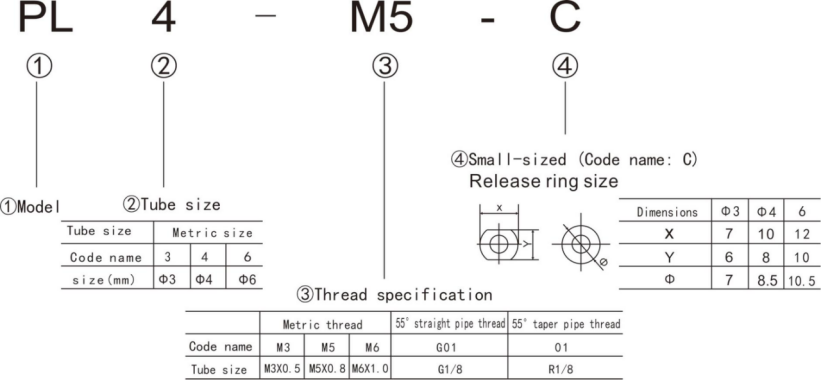

Ordering code:


PL4-M5C

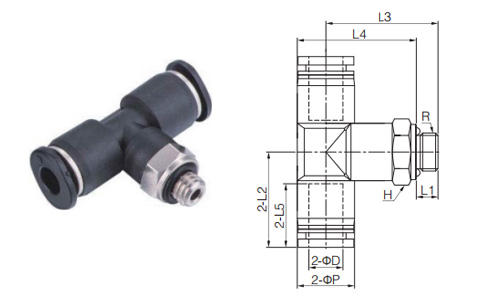

PB MINI type Series


PB MINI type Series


Model

ФD

R

L1

L2

L3

L4

L5

ФP

H

PB3-M3C



3

M3X0.5

3

12

15.5

16

9.5

7

8

PB3-M5C

M5X0.8

3.5

12

16

16

9.5

7

8

PB3-M6C

M6X1.0

4

12

16.5

16

9.5

7

8

PB4-M3C





4

M3X0.5

3

14.5

15.5.

17

11

9

8

PB4-M5C

M5X0.8

3.5

14.5

16

17

11

9

8

PB4-M6C

M6X1.0

4

14.5

16.5

17

11

9

8

PB4-01C

R1/8

7.5

14.5

19.5

20

11

9

10

PB6-M5C



6

M5X0.8

3.5

16.5

16

18

11.5

11

10

PB6-M6C

M6X1.0

4

16.5

16.5

18

11.5

11

10

PB6-01C

R1/8

7.5

16.5

19.5

21

11.5

11

10

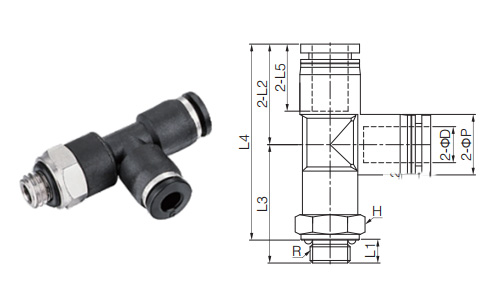

PD MINI type Series

PD MINI type Series


Model

ФD

R

L1

L2

L3

L4

L5

ФP

H

PB3-M3C



3

M3X0.5

3

12

15.5

16

9.5

7

8

PB3-M5C

M5X0.8

3.5

12

16

16

9.5

7

8

PB3-M6C

M6X1.0

4

12

16.5

16

9.5

7

8

PB4-M3C





4

M3X0.5

3

14.5

15.5.

17

11

9

8

PB4-M5C

M5X0.8

3.5

14.5

16

17

11

9

8

PB4-M6C

M6X1.0

4

14.5

16.5

17

11

9

8

PB4-01C

R1/8

7.5

14.5

19.5

20

11

9

10

PB6-M5C



6

M5X0.8

3.5

16.5

16

18

11.5

11

10

PB6-M6C

M6X1.0

4

16.5

16.5

18

11.5

11

10

PB6-01C

R1/8

7.5

16.5

19.5

21

11.5

11

10




PU MINI type Series

PU MINI type SeriesPU MINI type Series


Model

ФD

L1

L2

ФP

PU3C

3

23.5

9.5

7

PU4C

4

27.5

11

9

PU6C

6

28

11.5

11

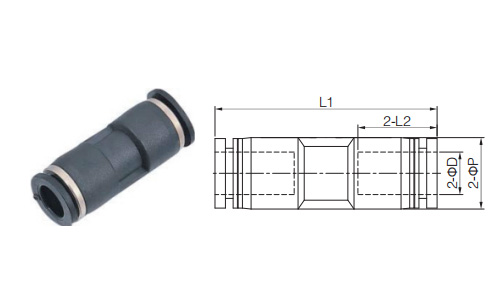

PG MINI type Series

PG MINI type Series


Model

ФD1

ФD2

L1

L2

L3

ФP

PG4-3C

4

3

27.5

9.5

9.5

9

PG6-3C

6

3

28

9.5

9.5

11

PG6-4C

6

4

28

11

11

11



PV MINI type Series

PV MINI type SeriesPV MINI type Series


Model

ФD

L1

L2

L3

ФP

Фd

PV3C

3

12

5

9.5

7

3.2

PV4C

4

14.5

6

11

9

3.2

PV6C

6

16.5

6..5

11.5

11

3.2

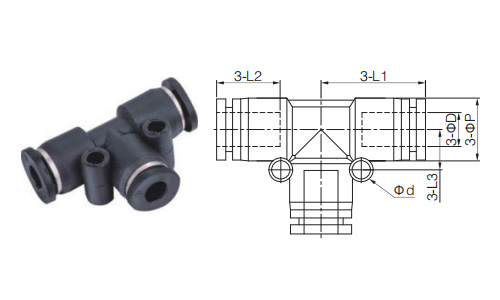

PE MINI type Series

PE MINI type Series

Model

ФD

L1

L2

L3

ФP

Фd

PE3C

3

12

5

9.5

7

3.2

PE4C

4

14.5

6

11

9

3.2

PE6C

6

16.5

6..5

11.5

11

3.2
