4A200 Series Pneumatic Air Valve / Air Actuated Valve
4A200 Series Pneumatic Air Valve / Air Actuated Valve
5 ways 2 position air actuated direct valve.
Fluid :Air(to be filtered by 40 μm filter element) ;Acting :Exterior air control
Port size : M5 ;1/8" (PT,NPT,G)
Orifice size :5.5mm2 (Cv=0.31); 12.0mm2 (Cv=0.67)
Operating pressure:0.15~0.8MPa(21~114psi)
Proof pressure:1.2MPa(175psi)
Temperature ℃:-20~70 ;Max. frequency :5 cycle/sec
4A200 Series Air Control Valve Pneumatic Air Valve.pdf

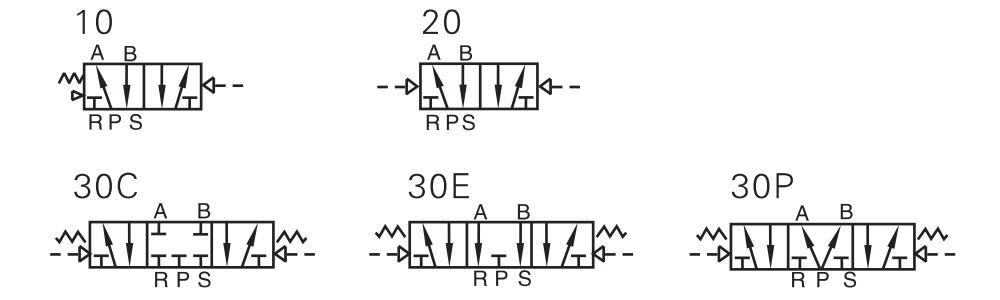

Pneumatic Air Valve Symbol:
30C: Double air control 5/3 way close center
30E: Double air control 5/3 way exhuast center
30P: Double air control 5/3 way pressure center

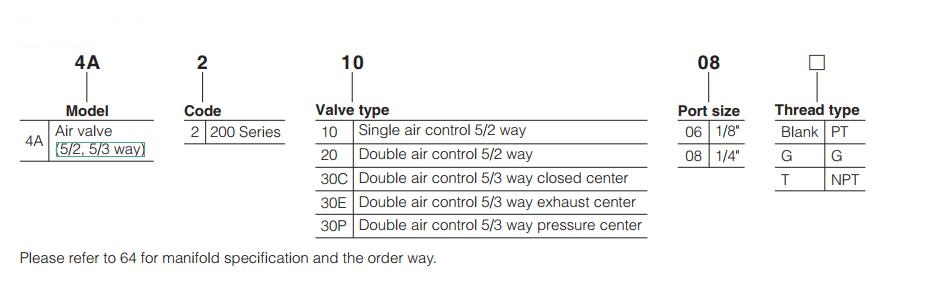

Ordering Code:
Product feature
1. Structure in sliding column mode: good tightness and sensitive reaction.
2. Three position air valves have three kinds of central funcition for your choice.
3. Double air control valves have memory function.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication.
6. Integrate with the manifold to save installation space.
The Specification of the Pneumatic Air Valve 4A200 Series
Model Pneumatic Air Valve | 4A210-06 4A220-06 | 4A230C-06 4A230E-06 4A230P-06 | 4A210-08 4A220-08 | 4A230C-08 4A230E-08 4A230P-08 |
Fluid | Air(to be filtered by 40 μm filter element) | |||
Acting | Exterior control | |||
Port size ① | In=Out=Exhaust=1/8" | In=Out=1/4" Exhaust=1/8" | ||
Orifice size | 14.0mm2(Cv=0.78) | 12.0mm2(Cv=0.67) | 16.0mm2(Cv=0.89) | 12.0mm2(Cv=0.67) |
Valve type | 5 port 2 porsition | 5 port 3 porsition | 5 port 2 porsition | 5 port 3 porsition |
Operating pressure | 0.15~0.8MPa(21~114psi) | |||
Proof pressure | 1.2MPa(175psi) | |||
Temperature ℃ | -20~70 | |||
Material of body | Aluminum alloy | |||
Lubrication ② | Not required | |||
Max. Frequency ③ | 5 cycle/sec | 3 cycle/sec | 5 cycle/sec | 3 cycle/sec |
Weight (g) | 4A210-06:185 4A220-06:285 | 365 | 4A210-08:185 4A220-08:285 | 365 |
① PT thread, G thread and NPT thread are available
② Once lubricated air is used, continue with same medium to optimise valve life span.
lubricants like ISO VG32 or equivalent are recommended.
③ The maximum actuation frequency of no-load state.
Where the air valve were used ?
Normally it were used in the flameproof environment . Compared with the solenoid controlled air valve , it only need
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Electric Solenoid Air Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air valve, Air Controll Valve, Pneumatic Air Valve, Air actuated 5ways valve, Air control direct valve are all for control the air direction for the air tools , air cylinders, Pneumatic angle valve.
