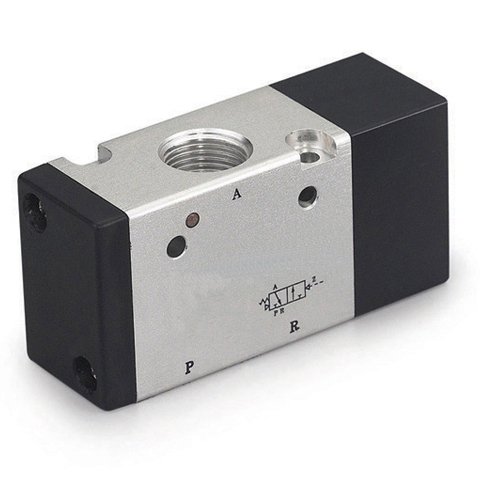

3A200 Sereis Air Actuated Air Valve/Pneumatic Air Valve
3A210/3A220 Series Pneumatic Air Valve
3 ways air actuated direct valve.
Fluid :Air(to be filtered by 40 μm filter element) ;Acting :Exterior air control
Port size : 1/4" (PT,NPT,G)
Orifice size :5.5mm2 (Cv=0.31); 12.0mm2 (Cv=0.67)
Valve type:3 port 2 porsition
Operating pressure:0.15~0.8MPa(21~114psi)
Proof pressure:1.2MPa(175psi)
Temperature ℃:-20~70 Max. frequency :5 cycle/sec
3A200 Series Air Control Valve Pneumatic Air Valve.pdf
Pneumatic Air Valve Symbol:
NO: The Normally open. When there is no air actuation to the valve, the pressure port "P" is connected with the "A" port (Work port)
NC: Normally Close. When there is no air actuation to the valve, the pressure port "P" is connected with the "R" port (Release port)

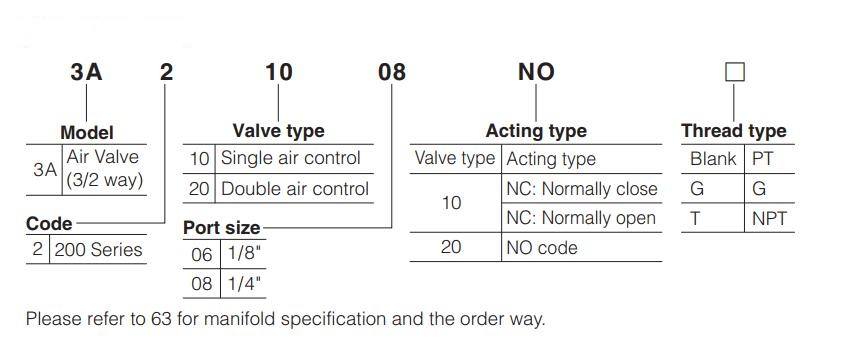

Product Ordering Code:
Pneumatic Valve Specification:
Model | 3A210-06 | 3A220-06 | 3A210-08 | 3A220-08 |
Fluid | Air(to be filtered by 40 μm filter element) | |||
Acting | Exterior control | |||
Port size ① | In=Out=1/8" | In=Out=1/4" | ||
Orifice size | 14.0mm2(Cv=0.78) | 16.0mm2(Cv=0.89) | ||
Valve type | 3 port 2 porsition | |||
Lubrication ② | Not required | |||
Operating pressure | 0.15~0.8MPa(21~114psi) | |||
Proof pressure | 1.2MPa(175psi) | |||
Temperature ℃ | -20~70 | |||
Material of body | Aluminum alloy | |||
Max. frequency ③ | 5 cycle/sec | |||
① PT thread, G thread and NPT thread are available.
② Once lubricated air is used, continue with same medium to optimise valve life span.
lubricants like ISO VG32 or equivalent are recommended.
③ The maximum actuation frequency is in the no-load state.
1. The Air Valve Structure in sliding column mode: good tightness and sensitive reaction.
2. Double air control valves have memory function.
3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long
service life.
4. No need to add oil for lubrication.
5. Multi-mounting helps to install and apply.
6. Integrate with the manifold to save installation space.
Where the air valve were used ?
Normally it were used in the flameproof environment . Compared with the solenoid controlled air valve , it only need the pressured air to actuated the valve . So will not generate spark.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Pneumatic Air Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air Control Valve, Air Valve, Pneumatic air valve, Air actuated 3ways valve, Air control direct valve are all for control the air direction for the air tools , air cylinders, Pneumatic angle valve.
