3A110/3A120
NEU-MASTER
3A110-M5;3A110-1/8;3A120-M5;3A120-1/8;
Availability: | |
---|---|

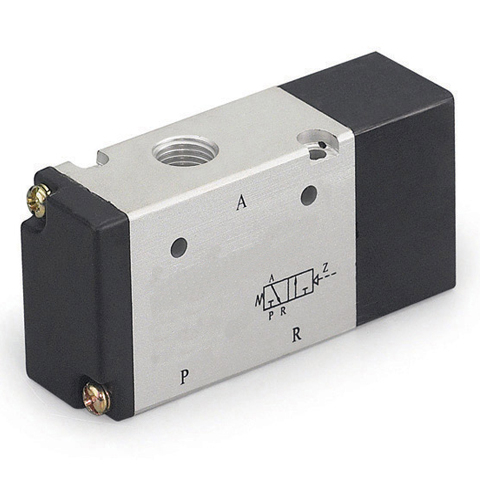

3A Air Actuated Air Valve/Pneumatic Valve
3A100 Series Pneumatic Air Valve
3 ways air actuated direct valve.
Fluid :Air(to be filtered by 40 μm filter element) ;Acting :Exterior air control
Port size : M5 ;1/8" (PT,NPT,G)
Orifice size :5.5mm2 (Cv=0.31); 12.0mm2 (Cv=0.67)
Valve type:3 port 2 porsition
Operating pressure:0.15~0.8MPa(21~114psi)
Proof pressure:1.2MPa(175psi)
Temperature ℃:-20~70
Max. frequency :5 cycle/sec
3A Series Air Control Valve.pdf

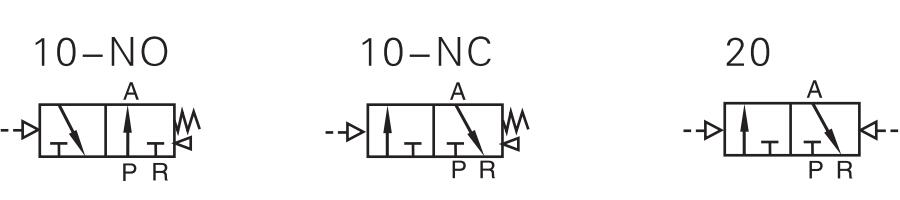

Air Valve Symbol:
Electric Solenoid Valve 3/2 ways NO : Normal open
Electric Solenoid Valve 3/2 ways NC: Normal close

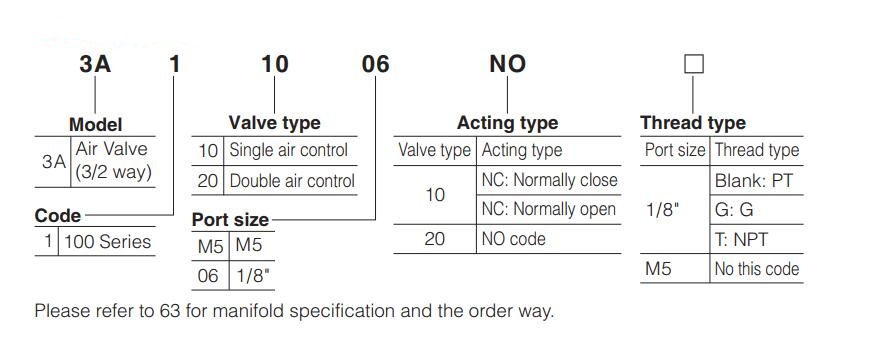

Ordering Code:
Specification:
Model | 3A110-M5 | 3A120-M5 | 3A110-06 | 3A120-06 |
Fluid | Air(to be filtered by 40 μm filter element) | |||
Acting | Exterior control | |||
Port size ① | M5 | PT1/8 | ||
Orifice size | 5.5mm2(Cv=0.31) | 12.0mm2(Cv=0.67) | ||
Valve type | 3 port 2 porsition | |||
Lubrication ② | Not required | |||
Operating pressure | 0.15~0.8MPa(21~114psi) | |||
Proof pressure | 1.2MPa(175psi) | |||
Temperature ℃ | -20~70 | |||
Material of body | Aluminum alloy | |||
Max. frequency ③ | 5 cycle/sec |
① PT thread, G thread and NPT thread are available for the Air actuated valve.
② Once lubricated air is used, continue with same medium to optimise valve life span.
lubricants like ISO VG32 or equivalent are recommended.
③ The maximum actuation frequency is in the no-load state
1. The Air Valve Structure in sliding column mode: good tightness and sensitive reaction.
2. Double air control valves have memory function.
3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long
service life.
4. No need to add oil for lubrication.
5. Multi-mounting helps to install and apply.
6. Integrate with the manifold to save installation space.
Where the valve are used ?
Normally it were used in the flameproof environment . Compared with the solenoid controlled air valve , it only need the pressured air to actuated the valve .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Pneumatic Air Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:Pneumatic Air Valve, pneumatic direction control valve, airtac valve, Pneumatic Valve are all for control the air direction for the air tools , air cylinders, Pneumatic angle valve.
