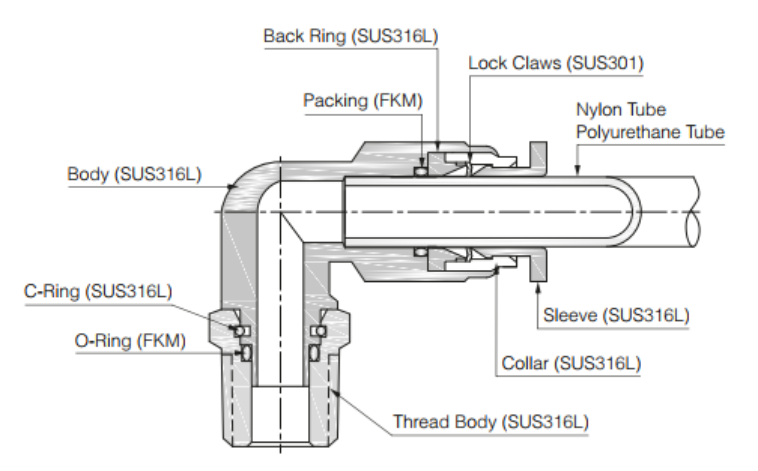

Schematic diagram of structure:
Specifications
Fluid | Air, water steam |
Operating pressure | 0~1.5MPa |
Max pressure | 2MPa |
Operating temperature | -20~140℃ |
Ordering code (example)

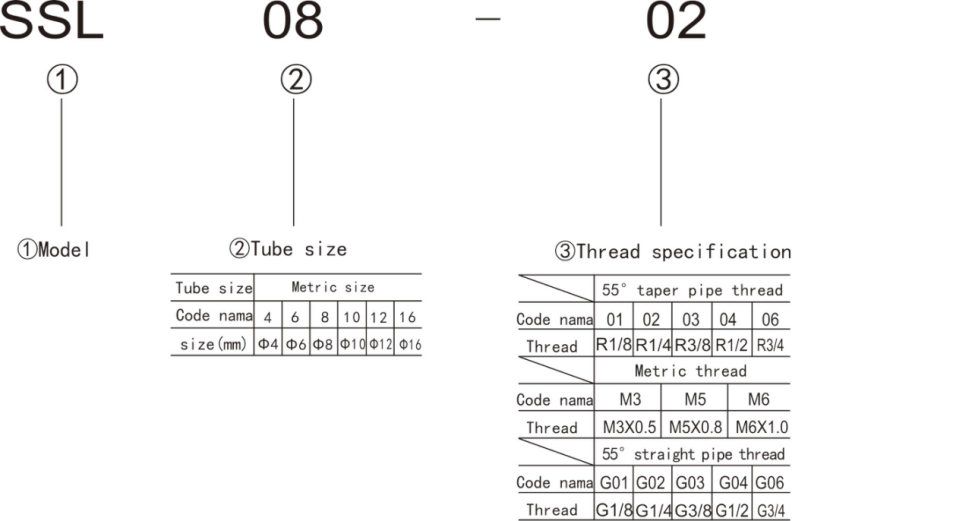

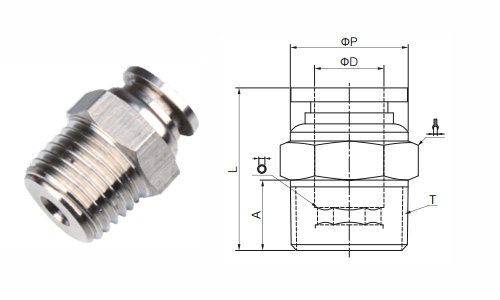

SSC Series
Model | ФD | T | A | L | ФP |
|
|
SSC04-M5 |
4 | M5X0.8 | 4 | 19.5 | 10 | 10 | - |
SSC04-01 | R01 | 7.5 | 18.5 | 10 | 10 | 3 | |
SSC06-M5 |
6 | M5X0.8 | 3.5 | 20.3 | 12 | 12 | - |
SSC06-01 | R01 | 7.5 | 19.8 | 12 | 12 | 4 | |
SSC06-02 | R02 | 10 | 21.3 | 12 | 14 | 4 | |
SSC08-1 |
8 | R01 | 7.5 | 24.5 | 14 | 14 | 5 |
SSC08-2 | R02 | 10 | 22.1 | 14 | 14 | 6 | |
SSC010-02 |
10 | R02 | 10 | 28 | 17 | 17 | 6 |
SSC010-03 | R03 | 11 | 24.5 | 17 | 17 | 8 | |
SSC010-04 | R04 | 14 | 28 | 17 | 21 | 8 | |
SSC012-02 |
12 | R02 | 10 | 31.4 | 20 | 20 | 6 |
SSC012-03 | R03 | 11 | 28.9 | 20 | 20 | 8 | |
SSC012-04 | R04 | 14 | 28.4 | 20 | 21 | 10 | |
SSC04-G01 | 4 | G01 | 5.5 | 18.5 | 10 | 14 | 3 |
SSC06-G01 |
6 | G01 | 5.5 | 19.3 | 12 | 14 | 4 |
SSC06-G02 | G02 | 6.5 | 20.3 | 12 | 17 | 4 | |
SSC08-G01 |
8 | G01 | 5.5 | 23.6 | 14 | 14 | 5 |
SSC08-G02 | G02 | 6.5 | 21.6 | 14 | 17 | 6 | |
SSC010-G02 |
10 | G02 | 6.5 | 26.5 | 17 | 17 | 6 |
SSC010-G03 | G03 | 7.5 | 24.5 | 17 | 20 | 8 | |
SSC010-G04 | G04 | 9.5 | 26 | 17 | 24 | 8 | |
SSC012-G02 |
12 | G02 | 6.5 | 28.9 | 20 | 20 | 6 |
SSC012-G03 | G03 | 7.5 | 26.4 | 20 | 20 | 8 | |
SSC012-G04 | G04 | 9.5 | 26.4 | 20 | 24 | 10 |

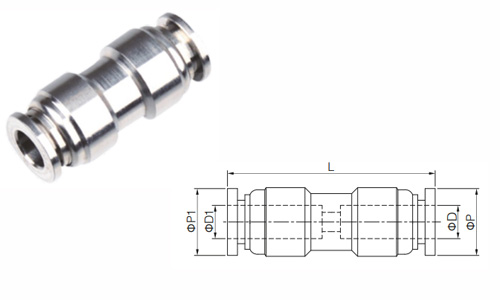

SSU Series
Model | ФD1 | ФD2 | L | ФP1 | ФP2 |
SSU04 | 4 | 4 | 29 | 10 | 10 |
SSU06 | 6 | 6 | 30.6 | 12 | 12 |
SSU08 | 8 | 8 | 33.4 | 14 | 14 |
SSU10 | 10 | 10 | 37.6 | 17 | 17 |
SSU12 | 12 | 12 | 42.4 | 20 | 20 |
SSU06-04 | 6 | 4 | 29.8 | 12 | 10 |
SSU08-06 | 8 | 6 | 32 | 14 | 12 |
SSU10-08 | 10 | 8 | 35.5 | 19 | 14 |
SSU12-10 | 12 | 10 | 40 | 20 | 17 |

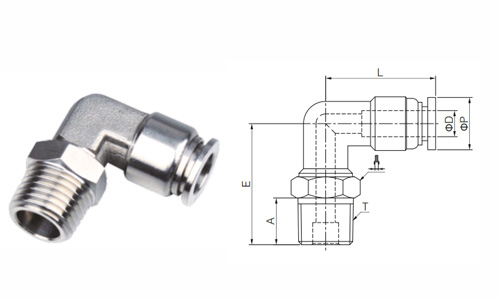

SSL Series
Model | ФD | T | A | L | E | ФP |
|
SSL04-M5 |
4 | M5X0.8 | 4 | 18.3 | 20.5 | 10 | 10 |
SSL04-01 | R01 | 7.5 | 18.3 | 19.3 | 10 | 10 | |
SSL06-M5 |
6 | RM5X0.8 | 3.5 | 20.1 | 21.5 | 12 | 10 |
SSL06-01 | R01 | 7.5 | 20.1 | 20.3 | 12 | 12 | |
SSL06-02 | R02 | 10 | 20.1 | 22.8 | 12 | 14 | |
SSL08-01 |
8 | R01 | 7.5 | 22.8 | 23.5 | 14 | 14 |
SSL08-02 | R02 | 10 | 22.8 | 24 | 14 | 14 | |
SSL10-02 |
10 | R02 | 10 | 26.7 | 28.3 | 17 | 17 |
SSL10-03 | R03 | 11 | 26.7 | 28.8 | 17 | 17 | |
SSL10-04 | R04 | 14 | 26.7 | 31.8 | 17 | 21 | |
SSL12-02 |
12 | R02 | 10 | 29.9 | 32.5 | 20 | 17 |
SSL12-03 | R03 | 11 | 29.9 | 29.5 | 20 | 17 | |
SSL12-04 | R04 | 14 | 29.9 | 32.5 | 20 | 21 | |
SSL04-G01 | 4 | G01 | 5.5 | 18.3 | 18.8 | 10 | 14 |
SSL06-G01 |
6 | G01 | 5.5 | 20.1 | 19.8 | 12 | 14 |
SSL06-G02 | G02 | 6.5 | 20.1 | 21.3 | 12 | 17 | |
SSL08-G01 |
8 | G01 | 5.5 | 22.8 | 23 | 14 | 14 |
SSL08-G02 | G02 | 6.5 | 22.8 | 24 | 14 | 17 | |
SSL10-G02 |
10 | G02 | 6.5 | 26.7 | 26.8 | 17 | 17 |
SSL10-G03 | G03 | 7.5 | 26.7 | 26.8 | 17 | 20 | |
SSL10-G04 | G04 | 9.5 | 26.7 | 30.3 | 17 | 24 | |
SSL12-G02 |
12 | G02 | 6.5 | 29.9 | 31 | 20 | 17 |
SSL12-G03 | G03 | 7.5 | 29.9 | 27.5 | 20 | 20 | |
SSL12-G04 | G04 | 9.5 | 29.9 | 31 | 20 | 24 |

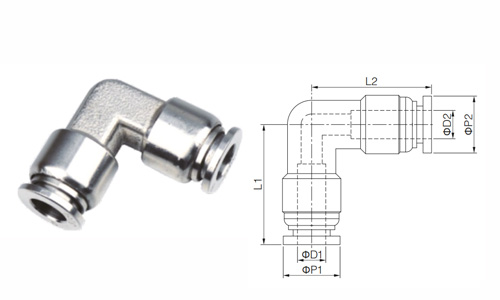

SSV Series
Model | ФD1 | ФD2 | L1 | L2 | ФP1 | ФP2 |
SSV4 | 4 | 4 | 18.3 | 18.3 | 10 | 10 |
SSV6 | 6 | 6 | 20.1 | 20.1 | 12 | 12 |
SSV8 | 8 | 8 | 22.8 | 22.8 | 14 | 14 |
SSV10 | 10 | 10 | 26.7 | 26.7 | 17 | 17 |
SSV12 | 12 | 12 | 29.9 | 29.9 | 20 | 20 |
SSV06-04 | 6 | 4 | 19.3 | 20.1 | 12 | 10 |
SSV08-06 | 8 | 6 | 22.3 | 22.8 | 14 | 12 |
SSV10-08 | 10 | 8 | 28.8 | 26.7 | 17 | 14 |
SSV12-10 | 12 | 10 | 29.7 | 29.9 | 20 | 17 |

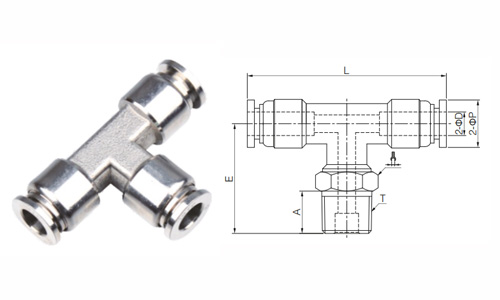

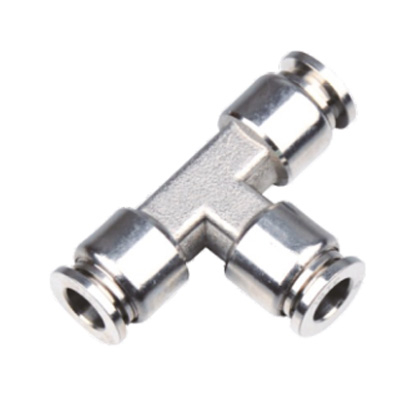

SSB Series
Model | ФD | T | A | L | E | ФP |
|
SSB04-M5 |
4 | M5X0.8 | 4 | 36.6 | 20.5 | 10 | 10 |
SSB04-01 | R01 | 7.5 | 36.6 | 19.3 | 10 | 10 | |
SSB06-M5 |
6 | RM5X0.8 | 3.5 | 40.2 | 21.5 | 12 | 10 |
SSB06-01 | R01 | 7.5 | 40.2 | 20.3 | 12 | 12 | |
SSB06-02 | R02 | 10 | 40.2 | 22.8 | 12 | 14 | |
SSB08-01 |
8 | R01 | 7.5 | 45.6 | 23.5 | 14 | 14 |
SSB08-02 | R02 | 10 | 45.6 | 24 | 14 | 14 | |
SSB10-02 |
10 | R02 | 10 | 53.4 | 28.3 | 17 | 17 |
SSB10-03 | R03 | 11 | 53.4 | 28.8 | 17 | 17 | |
SSB10-04 | R04 | 14 | 53.4 | 31.8 | 17 | 21 | |
SSB12-02 |
12 | R02 | 10 | 59.8 | 32.5 | 20 | 17 |
SSB12-03 | R03 | 11 | 59.8 | 29.5 | 20 | 17 | |
SSB12-04 | R04 | 14 | 59.8 | 32.5 | 20 | 21 | |
SSB04-G01 | 4 | G01 | 5.5 | 36.6 | 18.8 | 10 | 14 |
SSB06-G01 |
6 | G01 | 5.5 | 40.2 | 19.8 | 12 | 14 |
SSB06-G02 | G02 | 6.5 | 40.2 | 21.3 | 12 | 17 | |
SSB08-G01 |
8 | G01 | 5.5 | 45.6 | 23 | 14 | 14 |
SSB08-G02 | G02 | 6.5 | 45.6 | 24 | 14 | 17 | |
SSB10-G02 |
10 | G02 | 6.5 | 53.4 | 26.8 | 17 | 17 |
SSB10-G03 | G03 | 7.5 | 53.4 | 26.8 | 17 | 20 | |
SSB10-G04 | G04 | 9.5 | 53.4 | 30.3 | 17 | 24 | |
SSB12-G02 |
12 | G02 | 6.5 | 59.8 | 31 | 20 | 17 |
SSB12-G03 | G03 | 7.5 | 59.8 | 27.5 | 20 | 20 | |
SSB12-G04 | G04 | 9.5 | 59.8 | 31 | 20 | 24 |

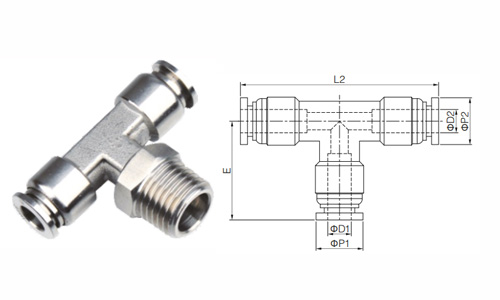

SSE Series
Model | ФD1 | ФD2 | L1 | L2 | ФP1 | ФP2 |
SSE04 | 4 | 4 | 36.6 | 18.3 | 10 | 10 |
SSE06 | 6 | 6 | 40.2 | 20.1 | 12 | 12 |
SSE08 | 8 | 8 | 45.6 | 22.8 | 14 | 14 |
SSE10 | 10 | 10 | 53.4 | 26.7 | 17 | 17 |
SSE12 | 12 | 12 | 59.8 | 29.9 | 20 | 20 |
SSE06-04 | 6 | 4 | 40.2 | 19.3 | 12 | 12 |
SSE08-06 | 8 | 6 | 45.6 | 22.3 | 14 | 14 |
SSE10-08 | 10 | 8 | 53.4 | 25.8 | 17 | 17 |
SSE12-010 | 12 | 10 | 59.8 | 29.7 | 20 | 20 |
SSE04-06 | 4 | 6 | 38.6 | 20.1 | 12 | 12 |
SSE-06-08 | 6 | 8 | 44.6 | 22.8 | 14 | 14 |
SSE08-10 | 8 | 10 | 51.6 | 26.7 | 17 | 17 |
SSE10-12 | 10 | 12 | 59.4 | 29.9 | 20 | 20 |
Schematic diagram of structure:
Specifications
Fluid | Air, water steam |
Operating pressure | 0~1.5MPa |
Max pressure | 2MPa |
Operating temperature | -20~140℃ |
Ordering code (example)
SSC Series
Model | ФD | T | A | L | ФP |
|
|
SSC04-M5 |
4 | M5X0.8 | 4 | 19.5 | 10 | 10 | - |
SSC04-01 | R01 | 7.5 | 18.5 | 10 | 10 | 3 | |
SSC06-M5 |
6 | M5X0.8 | 3.5 | 20.3 | 12 | 12 | - |
SSC06-01 | R01 | 7.5 | 19.8 | 12 | 12 | 4 | |
SSC06-02 | R02 | 10 | 21.3 | 12 | 14 | 4 | |
SSC08-1 |
8 | R01 | 7.5 | 24.5 | 14 | 14 | 5 |
SSC08-2 | R02 | 10 | 22.1 | 14 | 14 | 6 | |
SSC010-02 |
10 | R02 | 10 | 28 | 17 | 17 | 6 |
SSC010-03 | R03 | 11 | 24.5 | 17 | 17 | 8 | |
SSC010-04 | R04 | 14 | 28 | 17 | 21 | 8 | |
SSC012-02 |
12 | R02 | 10 | 31.4 | 20 | 20 | 6 |
SSC012-03 | R03 | 11 | 28.9 | 20 | 20 | 8 | |
SSC012-04 | R04 | 14 | 28.4 | 20 | 21 | 10 | |
SSC04-G01 | 4 | G01 | 5.5 | 18.5 | 10 | 14 | 3 |
SSC06-G01 |
6 | G01 | 5.5 | 19.3 | 12 | 14 | 4 |
SSC06-G02 | G02 | 6.5 | 20.3 | 12 | 17 | 4 | |
SSC08-G01 |
8 | G01 | 5.5 | 23.6 | 14 | 14 | 5 |
SSC08-G02 | G02 | 6.5 | 21.6 | 14 | 17 | 6 | |
SSC010-G02 |
10 | G02 | 6.5 | 26.5 | 17 | 17 | 6 |
SSC010-G03 | G03 | 7.5 | 24.5 | 17 | 20 | 8 | |
SSC010-G04 | G04 | 9.5 | 26 | 17 | 24 | 8 | |
SSC012-G02 |
12 | G02 | 6.5 | 28.9 | 20 | 20 | 6 |
SSC012-G03 | G03 | 7.5 | 26.4 | 20 | 20 | 8 | |
SSC012-G04 | G04 | 9.5 | 26.4 | 20 | 24 | 10 |
SSU Series
Model | ФD1 | ФD2 | L | ФP1 | ФP2 |
SSU04 | 4 | 4 | 29 | 10 | 10 |
SSU06 | 6 | 6 | 30.6 | 12 | 12 |
SSU08 | 8 | 8 | 33.4 | 14 | 14 |
SSU10 | 10 | 10 | 37.6 | 17 | 17 |
SSU12 | 12 | 12 | 42.4 | 20 | 20 |
SSU06-04 | 6 | 4 | 29.8 | 12 | 10 |
SSU08-06 | 8 | 6 | 32 | 14 | 12 |
SSU10-08 | 10 | 8 | 35.5 | 19 | 14 |
SSU12-10 | 12 | 10 | 40 | 20 | 17 |
SSL Series
Model | ФD | T | A | L | E | ФP |
|
SSL04-M5 |
4 | M5X0.8 | 4 | 18.3 | 20.5 | 10 | 10 |
SSL04-01 | R01 | 7.5 | 18.3 | 19.3 | 10 | 10 | |
SSL06-M5 |
6 | RM5X0.8 | 3.5 | 20.1 | 21.5 | 12 | 10 |
SSL06-01 | R01 | 7.5 | 20.1 | 20.3 | 12 | 12 | |
SSL06-02 | R02 | 10 | 20.1 | 22.8 | 12 | 14 | |
SSL08-01 |
8 | R01 | 7.5 | 22.8 | 23.5 | 14 | 14 |
SSL08-02 | R02 | 10 | 22.8 | 24 | 14 | 14 | |
SSL10-02 |
10 | R02 | 10 | 26.7 | 28.3 | 17 | 17 |
SSL10-03 | R03 | 11 | 26.7 | 28.8 | 17 | 17 | |
SSL10-04 | R04 | 14 | 26.7 | 31.8 | 17 | 21 | |
SSL12-02 |
12 | R02 | 10 | 29.9 | 32.5 | 20 | 17 |
SSL12-03 | R03 | 11 | 29.9 | 29.5 | 20 | 17 | |
SSL12-04 | R04 | 14 | 29.9 | 32.5 | 20 | 21 | |
SSL04-G01 | 4 | G01 | 5.5 | 18.3 | 18.8 | 10 | 14 |
SSL06-G01 |
6 | G01 | 5.5 | 20.1 | 19.8 | 12 | 14 |
SSL06-G02 | G02 | 6.5 | 20.1 | 21.3 | 12 | 17 | |
SSL08-G01 |
8 | G01 | 5.5 | 22.8 | 23 | 14 | 14 |
SSL08-G02 | G02 | 6.5 | 22.8 | 24 | 14 | 17 | |
SSL10-G02 |
10 | G02 | 6.5 | 26.7 | 26.8 | 17 | 17 |
SSL10-G03 | G03 | 7.5 | 26.7 | 26.8 | 17 | 20 | |
SSL10-G04 | G04 | 9.5 | 26.7 | 30.3 | 17 | 24 | |
SSL12-G02 |
12 | G02 | 6.5 | 29.9 | 31 | 20 | 17 |
SSL12-G03 | G03 | 7.5 | 29.9 | 27.5 | 20 | 20 | |
SSL12-G04 | G04 | 9.5 | 29.9 | 31 | 20 | 24 |
SSV Series
Model | ФD1 | ФD2 | L1 | L2 | ФP1 | ФP2 |
SSV4 | 4 | 4 | 18.3 | 18.3 | 10 | 10 |
SSV6 | 6 | 6 | 20.1 | 20.1 | 12 | 12 |
SSV8 | 8 | 8 | 22.8 | 22.8 | 14 | 14 |
SSV10 | 10 | 10 | 26.7 | 26.7 | 17 | 17 |
SSV12 | 12 | 12 | 29.9 | 29.9 | 20 | 20 |
SSV06-04 | 6 | 4 | 19.3 | 20.1 | 12 | 10 |
SSV08-06 | 8 | 6 | 22.3 | 22.8 | 14 | 12 |
SSV10-08 | 10 | 8 | 28.8 | 26.7 | 17 | 14 |
SSV12-10 | 12 | 10 | 29.7 | 29.9 | 20 | 17 |
SSB Series
Model | ФD | T | A | L | E | ФP |
|
SSB04-M5 |
4 | M5X0.8 | 4 | 36.6 | 20.5 | 10 | 10 |
SSB04-01 | R01 | 7.5 | 36.6 | 19.3 | 10 | 10 | |
SSB06-M5 |
6 | RM5X0.8 | 3.5 | 40.2 | 21.5 | 12 | 10 |
SSB06-01 | R01 | 7.5 | 40.2 | 20.3 | 12 | 12 | |
SSB06-02 | R02 | 10 | 40.2 | 22.8 | 12 | 14 | |
SSB08-01 |
8 | R01 | 7.5 | 45.6 | 23.5 | 14 | 14 |
SSB08-02 | R02 | 10 | 45.6 | 24 | 14 | 14 | |
SSB10-02 |
10 | R02 | 10 | 53.4 | 28.3 | 17 | 17 |
SSB10-03 | R03 | 11 | 53.4 | 28.8 | 17 | 17 | |
SSB10-04 | R04 | 14 | 53.4 | 31.8 | 17 | 21 | |
SSB12-02 |
12 | R02 | 10 | 59.8 | 32.5 | 20 | 17 |
SSB12-03 | R03 | 11 | 59.8 | 29.5 | 20 | 17 | |
SSB12-04 | R04 | 14 | 59.8 | 32.5 | 20 | 21 | |
SSB04-G01 | 4 | G01 | 5.5 | 36.6 | 18.8 | 10 | 14 |
SSB06-G01 |
6 | G01 | 5.5 | 40.2 | 19.8 | 12 | 14 |
SSB06-G02 | G02 | 6.5 | 40.2 | 21.3 | 12 | 17 | |
SSB08-G01 |
8 | G01 | 5.5 | 45.6 | 23 | 14 | 14 |
SSB08-G02 | G02 | 6.5 | 45.6 | 24 | 14 | 17 | |
SSB10-G02 |
10 | G02 | 6.5 | 53.4 | 26.8 | 17 | 17 |
SSB10-G03 | G03 | 7.5 | 53.4 | 26.8 | 17 | 20 | |
SSB10-G04 | G04 | 9.5 | 53.4 | 30.3 | 17 | 24 | |
SSB12-G02 |
12 | G02 | 6.5 | 59.8 | 31 | 20 | 17 |
SSB12-G03 | G03 | 7.5 | 59.8 | 27.5 | 20 | 20 | |
SSB12-G04 | G04 | 9.5 | 59.8 | 31 | 20 | 24 |
SSE Series
Model | ФD1 | ФD2 | L1 | L2 | ФP1 | ФP2 |
SSE04 | 4 | 4 | 36.6 | 18.3 | 10 | 10 |
SSE06 | 6 | 6 | 40.2 | 20.1 | 12 | 12 |
SSE08 | 8 | 8 | 45.6 | 22.8 | 14 | 14 |
SSE10 | 10 | 10 | 53.4 | 26.7 | 17 | 17 |
SSE12 | 12 | 12 | 59.8 | 29.9 | 20 | 20 |
SSE06-04 | 6 | 4 | 40.2 | 19.3 | 12 | 12 |
SSE08-06 | 8 | 6 | 45.6 | 22.3 | 14 | 14 |
SSE10-08 | 10 | 8 | 53.4 | 25.8 | 17 | 17 |
SSE12-010 | 12 | 10 | 59.8 | 29.7 | 20 | 20 |
SSE04-06 | 4 | 6 | 38.6 | 20.1 | 12 | 12 |
SSE-06-08 | 6 | 8 | 44.6 | 22.8 | 14 | 14 |
SSE08-10 | 8 | 10 | 51.6 | 26.7 | 17 | 17 |
SSE10-12 | 10 | 12 | 59.4 | 29.9 | 20 | 20 |
