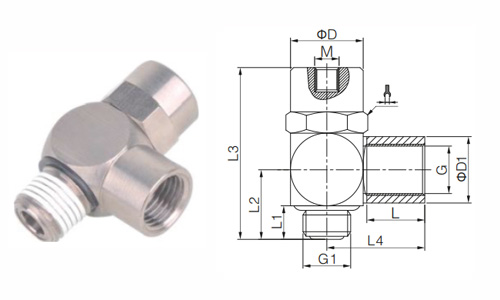

Schematic diagram of structure：

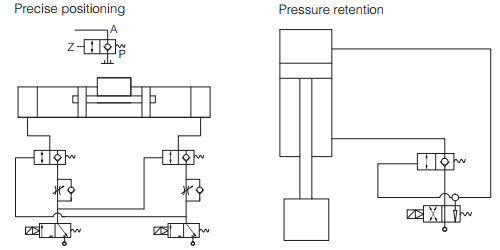

Symbol
QKF Series
Model | ФD | R | M | L1 | L2 | L3 | L4 | ФD1 | ФD2 |
|
QKF06-01 | 6 | R1/8 | M5 | 8 | 15 | 37 | 23 | 13.3 | 13 | 13 |
QKF06-02 | 6 | R1/4 | M5 | 13 | 20.3 | 43 | 25 | 13.3 | 17 | 17 |
QKF08-01 | 8 | R3/8 | M5 | 8 | 15.5 | 37 | 25.8 | 15 | 13 | 13 |
QKF08-02 | 8 | R1/2 | M5 | 13 | 21.3 | 43 | 28.9 | 15 | 17 | 17 |

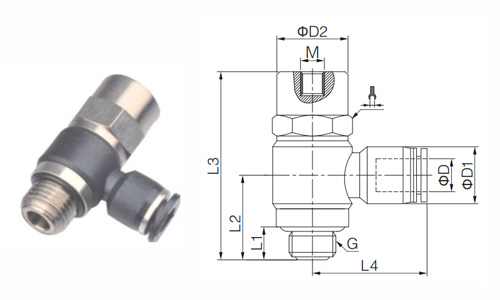

QKF-G Series
Model | ФD | G | M | L1 | L2 | L3 | L4 | ФD1 | ФD2 |
|
QKF06-G01 | 6 | G1/8 | M5 | 5.5 | 15 | 37 | 23 | 13.3 | 13 | 13 |
QKF06-G02 | 6 | G1/4 | M5 | 8.5 | 18.3 | 43 | 25 | 13.3 | 17 | 17 |
QKF08-G01 | 8 | G3/8 | M5 | 5.5 | 15.8 | 37 | 25.8 | 15 | 13 | 13 |
QKF08-G02 | 8 | G1/2 | M5 | 8.5 | 19.3 | 43 | 28.9 | 15 | 17 | 17 |

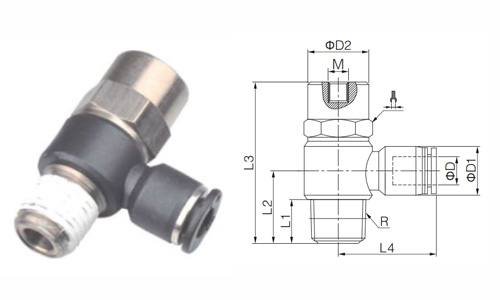

QKF Series
Model | ФD | G | R | M | L | L1 | L2 | L3 | L4 | ФD1 |
|
QKF G01-01 | 13 | G1/8 | R1/8 | M5 | 8.5 | 8 | 15 | 37 | 17 | 13 | 13 |
QKF G02-02 | 17 | G1/4 | R1/4 | M5 | 11 | 11 | 20.3 | 43 | 19.5 | 16 | 17 |
QKF G03-03 | 23.5 | G3/8 | R3/8 | G3/8 | 10.5 | 10.5 | 34 | 93 | 32 | 26 | 24 |
QKF G04-04 | 23.5 | G1/2 | R1/2 | G1/2 | 13.5 | 13.5 | 28.5 | 87.8 | 36 | 26 | 24 |
QKF Series
Model | ФD | G | G1 | M | L | L1 | L2 | L3 | L4 | ФD1 |
|
QKF-G01 | 13 | G1/8 | G1/8 | M5 | 8.5 | 5.5 | 15 | 37 | 17 | 13 | 13 |
QKF-G02 | 17 | G1/4 | G1/4 | M5 | 11 | 8.5 | 17.5 | 43 | 19.5 | 16 | 17 |
QKF-G03 | 23.5 | G3/8 | G3/8 | G3/8 | 18 | 8.5 | 32.5 | 91.5 | 32 | 26 | 24 |
QKF-G04 | 23.5 | G1/2 | G1/2 | G1/2 | 16 | 10 | 34 | 93 | 36 | 26 | 24 |
Schematic diagram of structure：
Symbol
QKF Series
Model | ФD | R | M | L1 | L2 | L3 | L4 | ФD1 | ФD2 |
|
QKF06-01 | 6 | R1/8 | M5 | 8 | 15 | 37 | 23 | 13.3 | 13 | 13 |
QKF06-02 | 6 | R1/4 | M5 | 13 | 20.3 | 43 | 25 | 13.3 | 17 | 17 |
QKF08-01 | 8 | R3/8 | M5 | 8 | 15.5 | 37 | 25.8 | 15 | 13 | 13 |
QKF08-02 | 8 | R1/2 | M5 | 13 | 21.3 | 43 | 28.9 | 15 | 17 | 17 |
QKF-G Series
Model | ФD | G | M | L1 | L2 | L3 | L4 | ФD1 | ФD2 |
|
QKF06-G01 | 6 | G1/8 | M5 | 5.5 | 15 | 37 | 23 | 13.3 | 13 | 13 |
QKF06-G02 | 6 | G1/4 | M5 | 8.5 | 18.3 | 43 | 25 | 13.3 | 17 | 17 |
QKF08-G01 | 8 | G3/8 | M5 | 5.5 | 15.8 | 37 | 25.8 | 15 | 13 | 13 |
QKF08-G02 | 8 | G1/2 | M5 | 8.5 | 19.3 | 43 | 28.9 | 15 | 17 | 17 |
QKF Series
Model | ФD | G | R | M | L | L1 | L2 | L3 | L4 | ФD1 |
|
QKF G01-01 | 13 | G1/8 | R1/8 | M5 | 8.5 | 8 | 15 | 37 | 17 | 13 | 13 |
QKF G02-02 | 17 | G1/4 | R1/4 | M5 | 11 | 11 | 20.3 | 43 | 19.5 | 16 | 17 |
QKF G03-03 | 23.5 | G3/8 | R3/8 | G3/8 | 10.5 | 10.5 | 34 | 93 | 32 | 26 | 24 |
QKF G04-04 | 23.5 | G1/2 | R1/2 | G1/2 | 13.5 | 13.5 | 28.5 | 87.8 | 36 | 26 | 24 |
QKF Series
Model | ФD | G | G1 | M | L | L1 | L2 | L3 | L4 | ФD1 |
|
QKF-G01 | 13 | G1/8 | G1/8 | M5 | 8.5 | 5.5 | 15 | 37 | 17 | 13 | 13 |
QKF-G02 | 17 | G1/4 | G1/4 | M5 | 11 | 8.5 | 17.5 | 43 | 19.5 | 16 | 17 |
QKF-G03 | 23.5 | G3/8 | G3/8 | G3/8 | 18 | 8.5 | 32.5 | 91.5 | 32 | 26 | 24 |
QKF-G04 | 23.5 | G1/2 | G1/2 | G1/2 | 16 | 10 | 34 | 93 | 36 | 26 | 24 |
