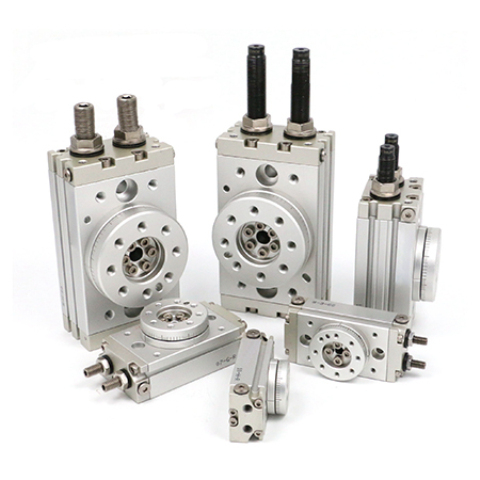

Pneumatic Rotary Cylinder HRQ Series 2 To 200 Equal To AIRTAC HRQ Pneumatic Rotary Cylinder
Product Feature
●Rack and pinion design, stable functioning rotary cylinder.
●Double cylinder structure, double output could be achieved.
●The manufacturing precision of working platform is high, and is easy for installation, and is of precise orientation.
●The center of the working platform has through hole, and pipe can be located and passed through this hole.
●Guide hole is designed on both sides of the cylinder body (10~200) or undersurface (2~7), which is simple to install.●Two modes of buffer can be chosen, adjustment bolt buffer and internal shock absorber. The maximum buffer energy of internal
shock absorber is 3-5 times that of the adjustment bolt buffer.
| Catalog: |

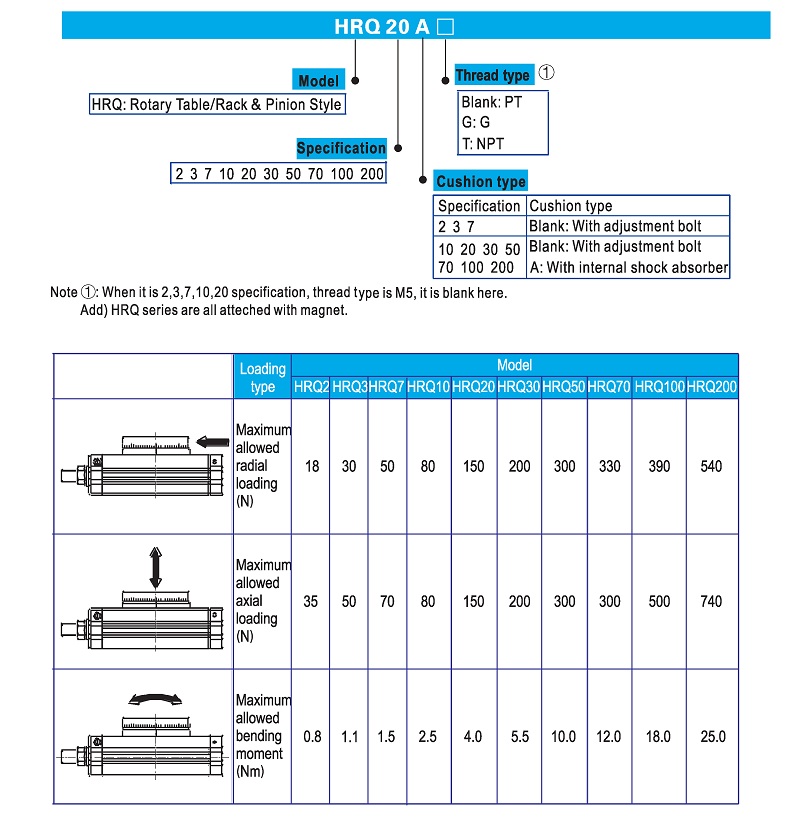

Pneumatic Rotary Cylinder HRQ Series Ordering Code
Pneumatic Rotary Cylinder HRQ Series Specification
| Pneumatic Rotary Cylinder HRQ Specification | 2 | 3 | 7 | 10 | 20 | 30 | 50 | 70 | 100 | 200 | |
| Acting Type | Double rack and pinion(Double Acting) | ||||||||||
| Fluid | Air (To be filtered by 40цm filter element) | ||||||||||
Operating Pressure | With adjustment bolt | 0.1∽0.7Mpa(15∽100Psi) 1.0∽7.0Bar | 0.1∽1.0Mpa(15∽145Psi)1.0∽10.0Bar | ||||||||
| With internal shock sbsorber | -- | 0.1∽0.6Mpa(15∽87Psi)1.0∽6.0Bar | |||||||||
| Proof Pressure | 1.5Mpa(218Psi)(15.0Bar) | ||||||||||
| Temperature ℃ | 0∽60 | ||||||||||
| Angle Ajustment Range | 0∽190° | 0∽190° | |||||||||
Repeatable Precision | With adjustment bolt | 0.2° | |||||||||
| With internal shock sbsorber | --- | 0.05° | |||||||||
| Theoretic moment(Nm)(0.5Mpa) | 0.2 | 0.33 | 0.63 | 1.1 | 2.2 | 2.8 | 5 | 7.5 | 11 | 22 | |
Cushion Type | With adjustment bolt | Rubber bumper | |||||||||
| With internal shock sbsorber | --- | Shock absorber | |||||||||
| Port Size | End Ports | M5x0.8 | 1/8" | ||||||||
| Side Ports | M5x0.8 | ||||||||||
| Weight g | 120 | 175 | 270 | 535 | 940 | 1260 | 2060 | 2890 | 4100 | 7650 | |

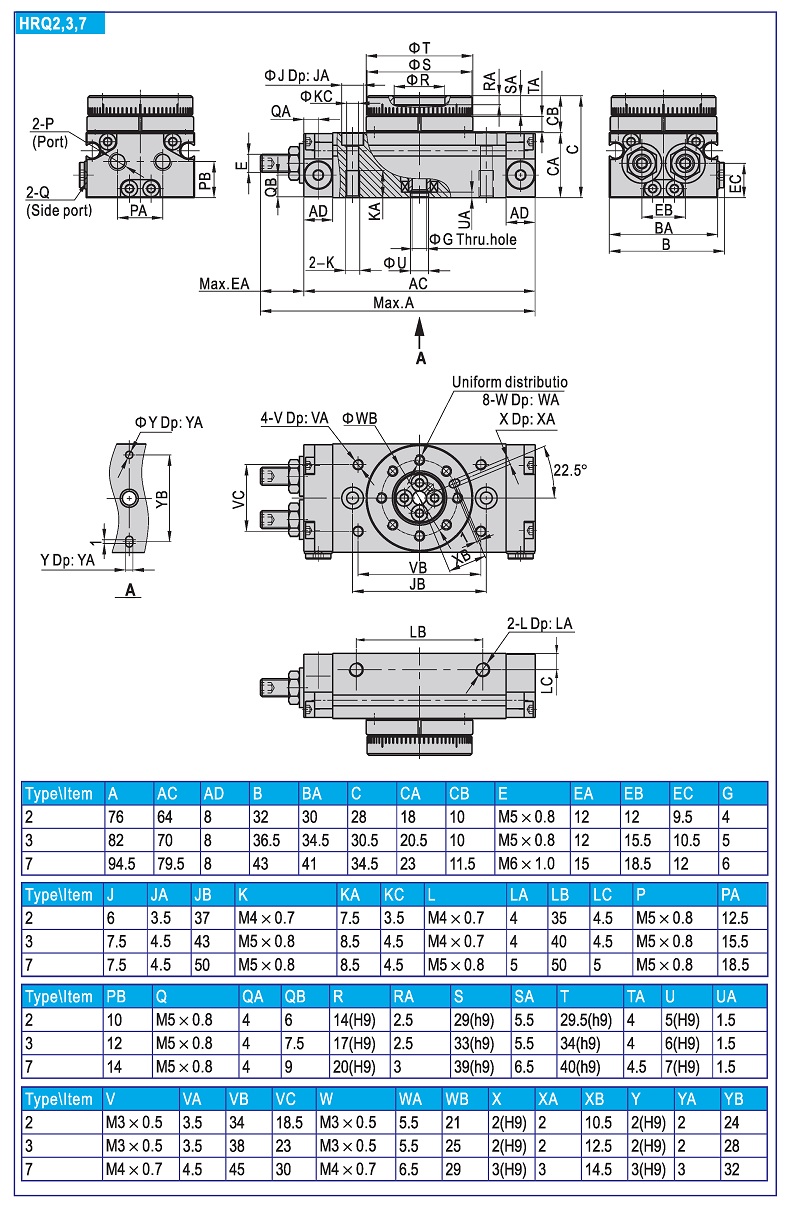

Pneumatic Rotary Cylinder HRQ 2,3,7 Deminesions

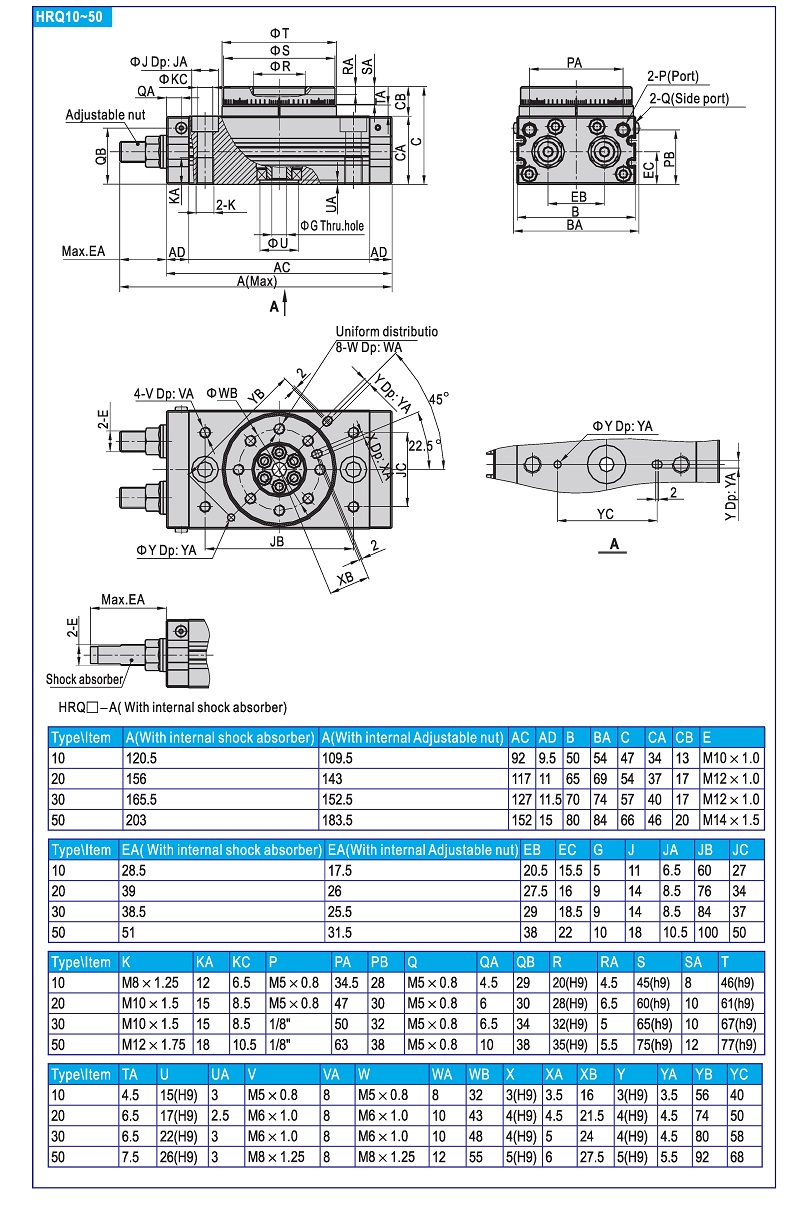

Pneumatic Rotary Cylinder HRQ 10-50 Deminesions
Pneumatic Rotary Cylinder HRQ 70-200 Deminesions
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Pneumatic Rotary Cylinder HRQ Series , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
